Revised Track Plan - Opinions Needed

Discussion in 'Track Planning' started by Hoss, Nov 17, 2003.

  1. Hoss

    Hoss Member

    Joined:
    Nov 10, 2003
    Messages:
    194
    Likes Received:
    0
    Okay...I'm with you now. Thanks.

    The industry area down at the bottom may be changing drastically because I'm considering going to a western flood loader for the coal trains instead of the tipple that I have drawn on there right now. Don't quite know how I'll arrange the tracks for that just yet, but we'll see.
  2. screwysquirrel

    screwysquirrel Member

    Joined:
    Jun 30, 2003
    Messages:
    711
    Likes Received:
    0
    one last S-curve

    Hoss: you missed one S-curve


    at the north end of the south passing siding, coming from the siding into the industry area makes an S-curve I think there is enough room to shift the industry zone to the west by 1 5" section to fix that.
  3. Hoss

    Hoss Member

    Joined:
    Nov 10, 2003
    Messages:
    194
    Likes Received:
    0
    Hehehe....you don't miss anything do you? :D

    I need to make some more adjustments tonight so I'll fix that too. Thanks. ;)
  4. Hoss

    Hoss Member

    Joined:
    Nov 10, 2003
    Messages:
    194
    Likes Received:
    0
    WHAT IF....

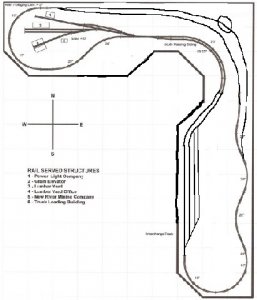

    ....I did something like this.

    This is a quick and dirty job in Paint so it's not that pretty, but what if I changed the benchwork and did something along these lines?? What would that do to me?? With a benchwork height of 48 inches I don't think it would be hard to reach 36 inches to the back of the layout if need be.

    The circle in the upper right would be a coal flood loader.

    Still open for comments so keep 'em coming!! :)
  5. Hoss

    Hoss Member

    Joined:
    Nov 10, 2003
    Messages:
    194
    Likes Received:
    0
    Oops...forgot the attachment...

    Attached Files:

  6. Hoss

    Hoss Member

    Joined:
    Nov 10, 2003
    Messages:
    194
    Likes Received:
    0
    Please go HERE to discuss the latest revision of this layout. Thanks. :)
