reverse loops

Discussion in 'N / Z Scale Model Trains' started by Cadillac_SD9, Aug 26, 2006.

  1. Cadillac_SD9

    Cadillac_SD9 Member

    Joined:
    Jan 3, 2006
    Messages:
    90
    Likes Received:
    0
    Does anyone know how to wire a reverse loop without an auto reverser? Thanks.
  2. pgandw

    pgandw Active Member

    Joined:
    Jul 9, 2005
    Messages:
    1,113
    Likes Received:
    0
    - DCC or conventional DC?

    - If DC, are you going to use the Atlas Controller?

    - If you are not using the Atlas Controller, do you already know how to wire a DPDT toggle switch as a reversing switch (same for both DC and DCC)?

    The questions give me a starting point to answer your question.

    yours in wiring
  3. Cadillac_SD9

    Cadillac_SD9 Member

    Joined:
    Jan 3, 2006
    Messages:
    90
    Likes Received:
    0
    I figured it out but can you use the atlas switch for DCC?
  4. pgandw

    pgandw Active Member

    Joined:
    Jul 9, 2005
    Messages:
    1,113
    Likes Received:
    0
    With DCC, you reverse the polarity of the reversing loop while the train is on the reversing section.

    With DC, you reverse the polarity of the rest of the layout while the train is in the reversing section.

    You will change which slide switches you use on the Controller with DCC, but they are all there.
  5. b28_82

    b28_82 Member

    Joined:
    Jan 25, 2004
    Messages:
    449
    Likes Received:
    0

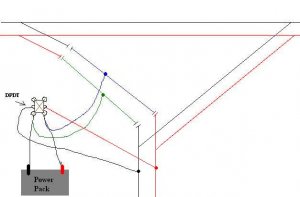

    Pretty simple to do. I made up how to do one for a wye. All you need to do is make the whole loop isolated and apply the same principle as i did to my wye.
