Repair split axles on Bachmann's N scale 4-8-4 locomotives.

Discussion in 'FAQs' started by Ray Marinaccio, Nov 28, 2005.

  1. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    This is how I repair the split axles on Bachmann N scale locomotives.
    The materials required are.
    3MM ID brass tubing
    Loc-Tite (super glue will work but sets up faster)

    Attached Files:

  2. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    To dissassemble the locomotive, remove the screw in the smoke stack and lift the front of the boiler and slide the shell to the back off the tabs on the rear of the frame.

    Attached Files:

  3. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Remove the pilot and trailing trucks. Note the location of the electrical contacts.

    Attached Files:

  4. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

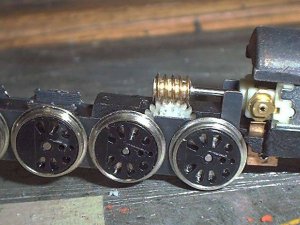

    Remove the 2 screws from the rear weight to remove the weight and motor.

    Attached Files:

  5. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

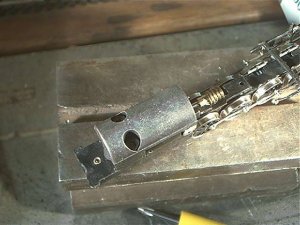

    Remove the screws holding the main weight and the pilot.

    Attached Files:

  6. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

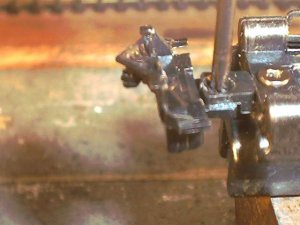

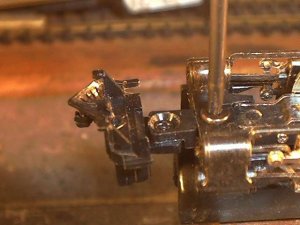

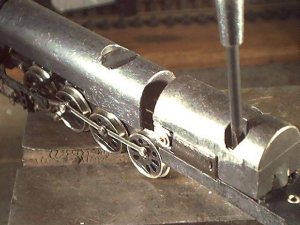

    The front side frame rail screws must be loosened to release the light wires before the weight is removed. The cylinder block can be pulled downward to access the screws.

    Attached Files:

  7. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

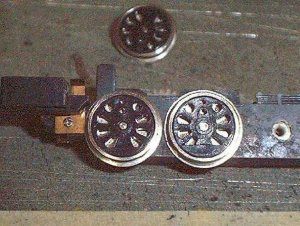

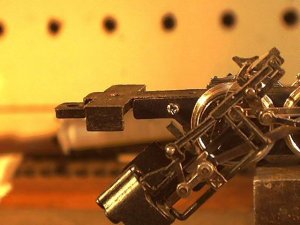

    Remove the crank pins on the second set of drivers and remove the cylinder block and valve gear.
    then remove the remaining crank pins and siderods. The pins are pressed in and can be pried out with a small screwdriver.
    Remove the drivers from the frame by prying them outward with a small screwdriver.

    Attached Files:

  8. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

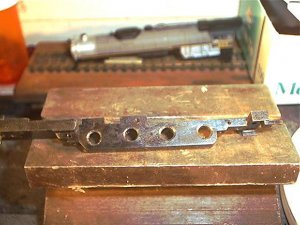

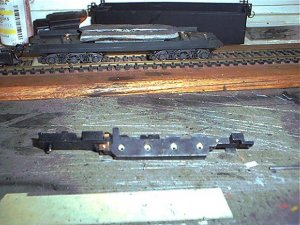

    Remove the side frame rail screws, remove the frame rails and gears.
    Wash all the parts ( except motor) with warm soapy water and dry thoroughly.

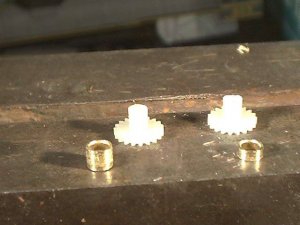

    Cut 4 sleeves from 3mm ID brass tubing.
    2 .130"
    2 .065"
    The 2 sleeves on the rear axles must be shorter to provide clearance for the reduction gear.

    Attached Files:

  9. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

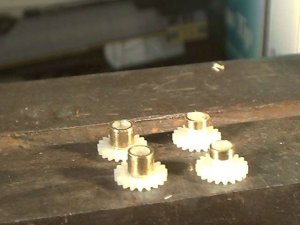

    Apply a thin coat of Loc-Tite on the stem of the gear and press the sleeves in place.

    Attached Files:

  10. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    The axle holes in the main plastic frame must be bored to 3/16" to allow clearance for the sleeves.

    Attached Files:

  11. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

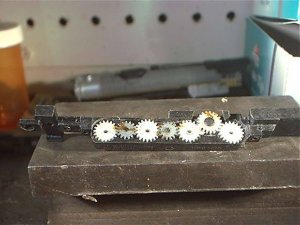

    Reinstall the gears in the frame and apply a small amount of grease on the gears.
    Then reinstall the side frame rails and screws.

    Attached Files:

  12. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

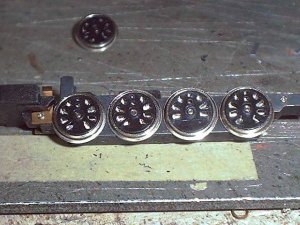

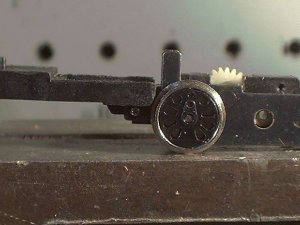

    Installing the drivers.
    I start with the right rear driver. Put a dab of grease on the driver bearing and a small amount of Loc-Tite on the axle and press the driver into the axle center.
    Rotate the the reduction gear counterclockwise untill the crank pin on the rear driver is at the 12 O'clock position. This takes the play out of the gear train.

    Attached Files:

  13. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Lube and Loc-Tite the next driver and press it in with the crank pin in the 12 O'clock position. Rotate the gear train by the reduction gear to verify the 2 drivers are in time. Re adjust the driver if necessary. If you use super glue instead of Loc-Tite this must be done quickly before it sets.

    Attached Files:

  14. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

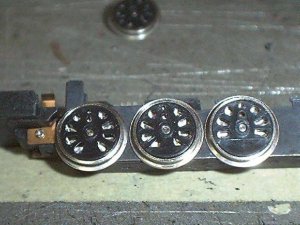

    Rotate the drive train until the 2 installed drivers are in the 12 O'clock position, then lube and Loc-Tite the next driver and install it in the 12 O'clock position. Rotate the gear train by the reduction gear to verify the 3 drivers are in time. Readjust the driver if necessary.

    Attached Files:

  15. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Rotate the drive train until the 3 installed drivers are in the 12 O'clock position, then lube and Loc-Tite the next driver and install it in the 12 O'clock position. Rotate the gear train by the reduction gear to verify the 4 drivers are in time. Readjust the driver if necessary.

    Attached Files:

  16. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    To install the drivers on the left side, put the driver on the right side in the 12 O'clock position, lube and Loc-Tite the driver and press the driver into the axle with its crank pin in the 3 O'clock position.

    Attached Files:

  17. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Repeat this process with the rest of the drivers on the left side, quartering each left hand driver with the right hand driver on the same axle.

    Attached Files:

  18. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0

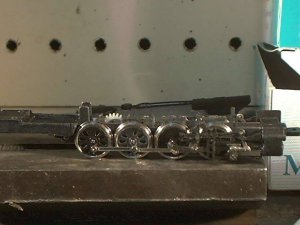

    Install the side rods, cylinders and valve gear.
    The ecentric on the crank pin should be set just to the rear of the driver center.

    Attached Files:

  19. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Roll the chassis on a piece of track to check for binding.
    If you got all the drivers on the right in time and the left driver in quarter with it's right hand driver you will have a smooth running chassis.

    Install the motor and rear weight.

    Attached Files:

  20. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    2,153
    Likes Received:
    0
    Check the mesh of the worm and reduction gears.
    I found this loco needed to have this clearance adjusted. This was done by removing a small amount of material from the frame to lower the motor.

    Attached Files:
