Removing 1" from 2" pink foam ???

Discussion in 'FAQs' started by MinnMonkey, Oct 4, 2007.

  1. MinnMonkey

    MinnMonkey Member

    Joined:
    Apr 11, 2005
    Messages:
    64
    Likes Received:
    0
    I am looking at carving a river into my layout. Any suggestions how I would remove (easily and cleanly) a 1-inch deep "channel" out of my 2" foam base?
  2. steamhead

    steamhead Active Member

    Joined:
    Apr 17, 2005
    Messages:
    2,527
    Likes Received:
    0
    If it's clean you want, you're going to need a hot-wire cutter. Lacking that...it's going to be messy. Use a serrated kitchen knife, hacksaw...whatever is handy. Also keep a vacuum cleaner at hand to keep the mess down.
    Good luck...!!!
  3. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0
    I used kitchen knives and a wirebrush to do all my faom carving. Yes, it was a mess, but that is half the fun! Keep a shop-vac on duty and use it often.
  4. steamhead

    steamhead Active Member

    Joined:
    Apr 17, 2005
    Messages:
    2,527
    Likes Received:
    0
    Don't despair just yet....I used to cut out landing gear boxes out of foam wings for my R/C aircraft. I used my Weller soldering gun, and replaced the soldering tip with a pre-formed heavy gauge SOLID copper wire, about 12-14 gauge. It cut through foam like a hot knife through butter..!! Maybe you could rig something like this up to help you cut down on the mess...!! Just don't press the trigger for too long...the gun might give up the ghost....
  5. MinnMonkey

    MinnMonkey Member

    Joined:
    Apr 11, 2005
    Messages:
    64
    Likes Received:
    0
    I guess when I said cleanly, I ment smoot cuts. The mess doesn't bother me to much.
  6. runkster

    runkster New Member

    Joined:
    Oct 5, 2007
    Messages:
    1
    Likes Received:
    0
    You will need a hot wire cutter. There are several that are not expensive.
  7. Doc Holliday

    Doc Holliday Member

    Joined:
    Oct 28, 2002
    Messages:
    630
    Likes Received:
    0

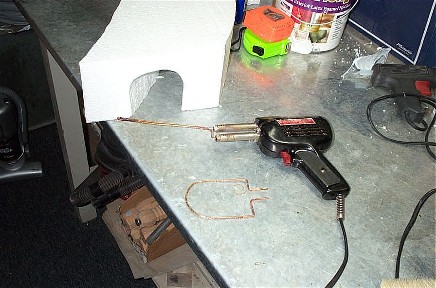

    I did what Steamhead did. I bend the copper wire into the shape I want to cut out. Here's a pic of my tunnel boring knife.
    Doc
    [​IMG]
  8. steamhead

    steamhead Active Member

    Joined:
    Apr 17, 2005
    Messages:
    2,527
    Likes Received:
    0
    Looks good..!! Glad to be of help.. :thumb:
  9. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0
    Do you really need smooth cuts? To have a little texture is not a bad thing. And any roughness could be filled in with spackle or sculptamold. If you sprinkle dirt or sand on, and then your ground cover, you'll be okay. Like I mentioned, I used a wire brush for some of the shaping and it worked pretty good. It left some texture in the foam, but to me, that is a good thing.
