Progress Pictures on the ACT RR

Discussion in 'N / Z Scale Model Trains' started by fifer, Dec 30, 2003.

  1. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0

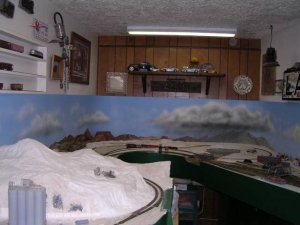

    The layout looking north.
    Room is 8' X 19.5'.

    Attached Files:

  2. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #2

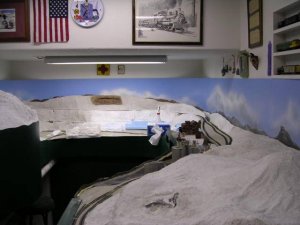

    Layout looking South.
    To mountain region.

    Attached Files:

  3. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #3

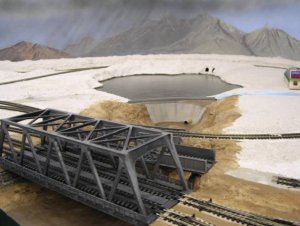

    Lake , Dam and River north of yard.

    Attached Files:

  4. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #4

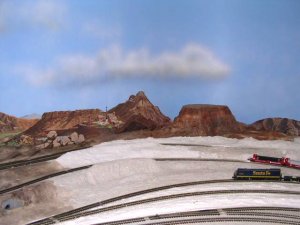

    The Mesa corner.

    Attached Files:

  5. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #5

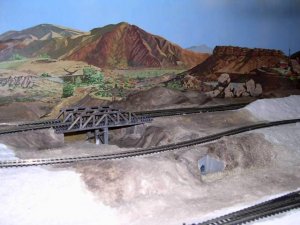

    The desert wall.

    Attached Files:

  6. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #6

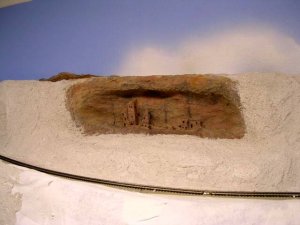

    The Indian ruins (south wall).

    Attached Files:

  7. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #7

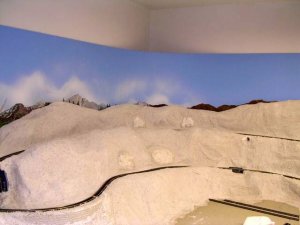

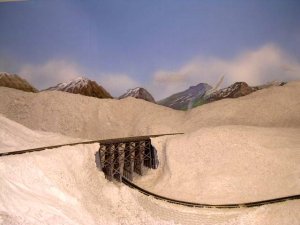

    The mountain corner (south east).

    Attached Files:

  8. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #8

    The Canyon , upper track leads into the 4 turn helix for a 9 3/4" drop to 0 elevation.

    Attached Files:

  9. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #9

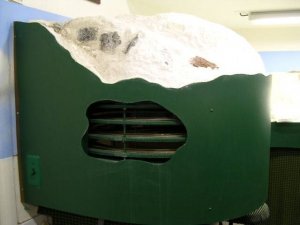

    The Helix.
    It has access from bottom and I can stand up in it , and is lighted,with double track inside.

    Attached Files:

  10. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #10

    The Yard (northeast wall).

    Attached Files:

  11. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #11

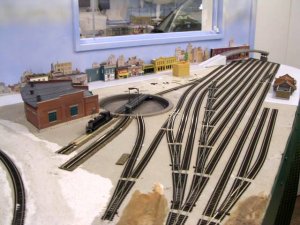

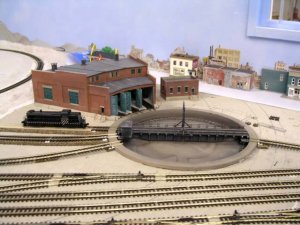

    The roundhouse and turntable.

    Attached Files:

  12. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #12

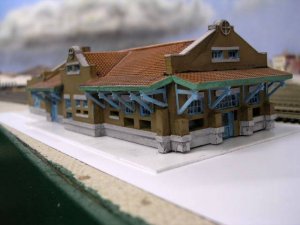

    The Station.

    Attached Files:

  13. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #13

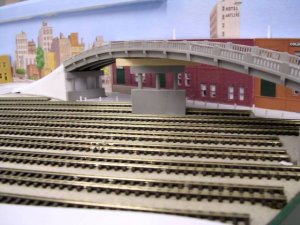

    The newly constructed south yard end overpass (unpainted).

    Attached Files:

  14. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    #14

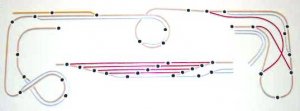

    The control panel.

    Attached Files:

  15. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    Well I'm impressed! :thumb: Please keep posting as you progress, really liked the Indian ruins and the lake/dam. :cool:
  16. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    Great work Fifer.:wave: :thumb: :thumb:
  17. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    Excellent looking layout!!!! I really like your backdrops, the dam, the cliff dweller ruins, ....very nice!!!!!
    Ralph
  18. SD90

    SD90 Active Member

    Joined:
    May 23, 2003
    Messages:
    1,161
    Likes Received:
    0
    Wow, very nice! What did you use for the water behind the dam? It sure looks good! Keep the pictrues coming.

    Mike.
  19. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    Thanks

    Thanks Guys .
    Mike the water is a piece of ripple shower door glass and slides back for access.
    When I get the colored Enviro-Tex casting resin in the river I'll paint the underside of the glass to come to a close color .
    The bodies of water in the southwest tend to be a little brownish blue and the rivers are almost always brownish.
    I need to get the water in to place the bridges in their final set and attach track.
    After I finish the base plaster I need to start wiring.
    I have all the tortoise machines in place and wiring done to a amphinal connector and just need to wire the panel; and plug it in.
    Mike
  20. fifer

    fifer Active Member

    Joined:
    Dec 5, 2003
    Messages:
    1,096
    Likes Received:
    0
    Backdrops

    Thanks Ralph , about 30% of the backdrops are printed commercial and then I blended them in and painted the rest with common hobby acrylics from Hobby Lobby.
    I also water these down to match the backdrops and do the basic ground cover. I have not used any woodland foams yet, it will go on after the base paint and track painting.
    I do base scenery first so I know how much track I really need to paint and ballast.
    The rest of the track is just glued and tacked. The track is all Peco cd 55. The track going under the trestle is only a back and forth mine track with a small loco and 5 close coupled atlas 26' ore cars.
    Thanks , Mike
