Progress on the Perth and Exeter

Discussion in 'HO Scale Model Trains' started by 60103, Jan 31, 2003.

  1. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    After all this time, I think I should give a little update on what I'm doing.
    I'm installing control panels. The two small stations are getting Atlas controllers, but the large station is getting a full panel.
    I had help and finished wiring the panel (not hooked up to track yet) and last night started testing the connections. There were only 2 problems -- both push buttons. One of the dead end tracks had a normally closed button, and one of the others didn't work at all -- looks like we melted the button when soldering. Of course, it was in the middle of a string of 4.
  2. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Exeter (St. Dayle's)

    Attached should be the track plan I used for Exeter (St. Dayle's) station.
    I had to drop a few tracks. Oh, and it's reversed.;)

    Attached Files:

  3. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Hi David,
    Always have to alter/change in the middle of something:D Nice looking plan. BTW, seen that plan before I think, is it one of "C.J.Freezers" plans? In reverse.

    Shamus[​IMG]
    [​IMG]
  4. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Shamus: it is, from one of the Peco books. The reverse just fit (I have a sixteen foot wall).
    It took me a while to reverse it, till I photocopied it on a transparency and turned it over.
    There are a few problems, because the original plan expected left hand running, and I had to drop a vital crossover.
    (My wife was allowed to vet the plans, but when it was done she said "It's all TRACK! Where's the scenery?")
  5. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Nice David, Did you ask your wife for more room to accomadate the scenary:D :D :D :D
    You did`nt:eek:
  6. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Chris:
    The scenery came on the next few walls (I've got 3 3/4 walls.)
    Two items I meant to mention in the first post:
    Push buttons are fragile (at least, Radio Shack's are) and if you don't use a heat sink you can melt the terminals far enough out of position that they don't work.
    What use are normally closed push buttons to a model railroad? I carefully examined the packages and picked up the wrong one.
  7. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0

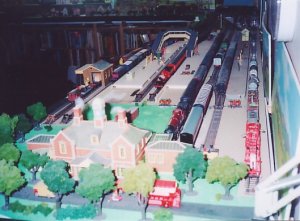

    Exeter (St. Dayle's)

    Here is the station from the end, taken from the basement stairs.
    (camera has no adjustments, so focus is not the best)

    Attached Files:

  8. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Alright!

    Way to go David! Looking good.

    :D Val
  9. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Hi Dave, nice to see the Perth and Exeter picture and track plan.
    You posted a photo of a bridge elswhere. Does it fit into this layout?
  10. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Robin:
    The bridge is on the opposite wall to Exeter.
    I've been working like mad, and Extere now has new platforms. I used 1/2" styrofoam, cut to fit between the tracks (only two of them are straight) painted charcoal on top with white edging.
    The track on the right now is the start of a 2% grade which will go up a removable section to the high level station, completing a continuous run. (maybe I should call it an insertable section ;) )
  11. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Glad you are "working like mad":D David, the results are great:D
    Lots of room at the Station.
  12. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0

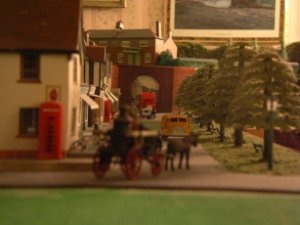

    Perth town

    Picking up the thread over a year later. :rolleyes:
    A side street in Perth, just beside the market.

    Attached Files:

  13. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Perth High Street

    This is the length of the town. Taken from where the market building usually sits. The station is up above the town, on the left.

    Attached Files:

  14. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0

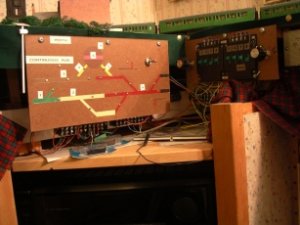

    Control Panel #1

    The control Panel for Perth.
    Left hand panel is track diagram and point (switches) controls. Right hand is blocks -- Atlas components.

    Attached Files:

  15. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Control Panel #2

    Controls panel for St. Mary Ax (pronounced Simmery Ax).
    Only 3 blocks, all points by hand. Buttons control dead ends in platforms.
    Rotary switches select one of 4 power packs, Atlas component then picks a rotary switch. Avoids jumping when the rotary passes a live power pack.
    There is also a paper track diagram that I didn't get in.

    Attached Files:

  16. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Control panel #3

    Exeter (St. Dayle's)
    The big station on the line. See track plan above.
    Block controls and point controls on same panel. A monster, dangles from the benchwork but can be pushed in.
    (Afraid to show the back, and I don't think I can photograph it.)
    I need to rewire bits of it.

    Attached Files:

  17. rcline

    rcline Member

    Joined:
    Jul 26, 2004
    Messages:
    313
    Likes Received:
    0
    I love to see the work of a person who has talent and determanation hard at work. Great job!!! Post more photos !!!!!!! must see!
  18. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Uh, there hasn't been much done on the line since I completed the continuous run. Between my mother-in-law's death and my detached retina (now a cataract), I've missed both the time and inclination. With one eye tempararily wonky, I don't feel I can do decent modelling. I have been running trains, though, and playing with the digital camera. Sorry the pictures came out so small.
  19. grumbeast

    grumbeast Member

    Joined:
    Jan 13, 2003
    Messages:
    472
    Likes Received:
    0
    Looking Great David!

    Graham
  20. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Control panel #3 is masonite face on a 1x2 frame.
    You can make out a board at the left side. This is screwed on to the panel (one each side) and there is a dowel or broom handle joins the two pieces and sits behind the legs of the shelving. The top shelf has enough clearance that the panel can be pushed back in. The dowel holds the control panel when it's out. You can see the wire for the switch machine studs dangling down the front.
