progress on my N gage modules

Discussion in 'N / Z Scale Model Trains' started by Bill Pontin, Apr 19, 2002.

  1. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

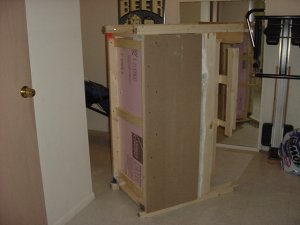

    Finally figured out how to stack and lock both of my 2x4 ft modules so they interlock for transportation to and from shows. The stack or cube should not be too hard to transport, 26" x 48" x 36" high. The legs serve several purposes, they are bolted on with "T" nuts to space and hold the sections together and to provide protection to the delicated track ends. Put it together and took it apart several times to work out any bugs.

    Bill P:)

    Attached Files:

  2. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

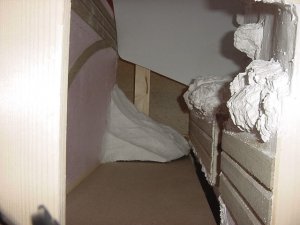

    Have to get busy now and start painting and adding the scenery. Was not too sure how much space I had between the modules. Plenty of room, should have no problem leaving everything in place during transportation. Picture is looking down into one end, little hard to visualize, but the mountains nest nicely. :rolleyes:

    Attached Files:

  3. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,347
    Likes Received:
    0
    Nice bit of engineering there Bill :cool: !
  4. kettlestack

    kettlestack Member

    Joined:
    Jan 18, 2002
    Messages:
    867
    Likes Received:
    0
    Looks real sturdy Bill, I'm impressed, good work.

    Top photo..... pity the "GAUGE IND" lettering isn't larger though, I found it difficult to read :)

    Are you using Sculptamould for your mountains to keep the weight down?

    (chuckling here) .. Is your new motto "Have Layout, Will Travel"?

    Errol
  5. roryglasgow

    roryglasgow Active Member

    Joined:
    Jun 4, 2001
    Messages:
    1,237
    Likes Received:
    0
    That looks great, Bill! I wish I had your engineering skills...

    -Rory
  6. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,023
    Likes Received:
    0
    Bill,
    You're a genius!
    You've kind of put a whole new spin on that "The Box" thing haven't you? :D
    Really looking forward to seeing some pics of these modules in action!
  7. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0
    Thank you fellows for the kind words, Charlie it will be some time before I can use the modules in a club layout. Next show is not until September, so I can take my time finishing them. Another problem is that summer limits my model railroad activities. Love to work in the garden, have to finish the grandchildrens tree house and dawgone it's almost time to put the kayaks on the car roof and take off on any good Saturday or Sunday that comes along. :cool:

    Bill P
