pictures of modern coalmine ?

Discussion in 'Photos & Videos' started by jkristia, Nov 14, 2002.

  1. jkristia

    jkristia Member

    Joined:
    Aug 1, 2002
    Messages:
    433
    Likes Received:
    0
    Hi all.

    I'm looking for some pictures of a modern coalmine. I have searched using google and other search engines, but without any results. What I need is just some idea as how to build my own building. I do have Walthers coal mine, but I would really like to get away from that standard Walthers look, so I was thinking of either scratch building or kit bashing the building, so it doesn’t scream “WALTHERS” when you look at it.
    Any ideas, pictures, prototypes, models are appreciated.

    Thanks
    Jesper
  2. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Jesper,

    Your question prompted a memory so I sorted through my box of model railroad magazines and articles that I cut out over the years. The July 1995 issue of Railroad Model Craftsman has a good article about building a modern coal mine based on prototype structures. It has good pics of the models and the impresssive conveyor systems. I hope you can find a copy.

    Good luck!
    Ralph
  3. tomfassett

    tomfassett Member

    Joined:
    Oct 16, 2002
    Messages:
    226
    Likes Received:
    0
    Oh, thanks Ralph! Get everbody's hopes up!:p :D
    I got all excited thinking you were going to post a bunch of pics and now I have to go on a scavenger hunt. Hey Jesper, if you find one you share, if I find one, I'll share... Maybe we can also find an article on how to build a doghouse for Ralph (he, he)...:D :p :rolleyes: :) :D

    Tom F
  4. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Well shoot Tom, there is the lil' matter of copyright infringment. :)
    Please make the doghouse big enough to include a layout room, will ya?
    Ralph
  5. rich maiorano

    rich maiorano Member

    Joined:
    Apr 27, 2002
    Messages:
    644
    Likes Received:
    0

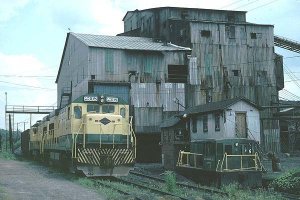

    hey jesper hows this one:D rich

    Attached Files:

  6. rich maiorano

    rich maiorano Member

    Joined:
    Apr 27, 2002
    Messages:
    644
    Likes Received:
    0
  7. jkristia

    jkristia Member

    Joined:
    Aug 1, 2002
    Messages:
    433
    Likes Received:
    0
    Ralph thanks for info. I just checked
    http://www.rrmodelcraftsman.com/
    And they still have 95 issues available, so I guess I will order that issue.

    Rich. I think I could kit bash Walthers coalmine into something similar. Definitely, it's not the standard Walthers look, but I don't know how "modern" it is :)

    Thanks for your info, I appreciate it

    Jesper
  8. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Hi Jesper!
    I don't know if these might help you any or not...thought it might give you an idea or two...

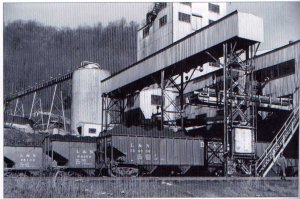

    This is a picture of the Glenbrook Mine on the L&N's Clover Fork Branch in Eastern Ky. circa 1960's
    This type of architecture hasn't changed a whole lot over the last 30 or 40 years.

    Attached Files:

  9. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Here's another one...

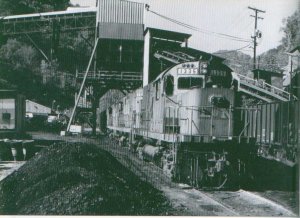

    This one is of the Lost Mine near Bulan, Ky. circa 1980's

    Attached Files:

  10. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Jesper,
    Charlie's pics are somewhat similar to the models in the RMC article. Lookling more closely at the pages I have it may be that the coal mine was a series an not limited to the July 1995 issue.

    Ralph
  11. jkristia

    jkristia Member

    Joined:
    Aug 1, 2002
    Messages:
    433
    Likes Received:
    0
    Once again thanks for the help.
    I like the first picture Charlie posted, and I just saw that there are some coalmine pictures in the new Great Model Railroads 2003 on page 16/17, so I think I have enough to get some ideas. Actually, the Glenbrook mine (Charlie’s first picture) looks very similar to Walthers, just with some add ons, so I will probably use that one.

    Charlie. I just did a search for Glenbrook mine on google for more pictures, but without any results. Do you maybe have another one that shows a little more of the building?.

    Thanks
    Jesper
