Peter von Danzig

Discussion in 'Ship & Watercraft Models' started by modelperry, Jun 17, 2008.

  1. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0
    For my next trick, I will attempt to build the Maly Modelarz "piotr z gdanska", aka Peter von Danzig. This Ship was built in the 15th century and is believed to be the first known ship with carvel planking of the hull. Carvel planking consists of butting each plank against each other instead of overlapping which was the primary method of the day. The ship was built in France to haul merchandise but was siezed by the Hanse government and converted to military service when the captain could not pay some debts owed while the ship was docked in Danzig.

    Greg

    Attached Files:

  2. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0

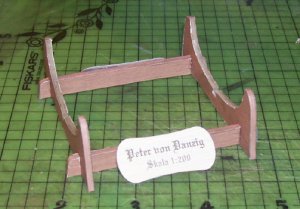

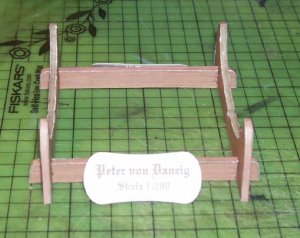

    This will be the first sailing ship I will have tried and feel it will be a challenge for me. The rigging is probably not as complex as some, but it still looks a little intimidating to me. To start off and provide a place to sit this model between build sessions, I built the stand for it. These pieces as well as the hull framework are laminated onto 2 mm stock (another first for me). This should be one stout model when complete!

    Greg

    Attached Files:

  3. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0

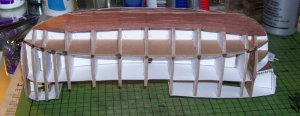

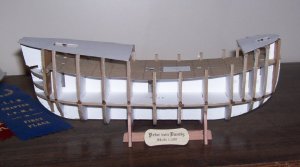

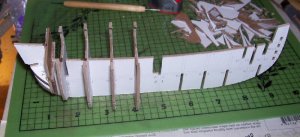

    Here are some photos of the hull framework. Can't say that my fingers are big fans of 2 mm cardboard.:cry:

    I made a few mistakes that I had to fix on this. There are supports at the stern for the main deck piece to sit on that I originally glued to the wrong side of the former. I had to cut them off and make new ones for the other side. Also, the front most formers are supposed to interlock with the main deck. I didn't realize this until after I glued them in place and before I installed the deck. Minor surgery to the deck piece fixed this issue.:oops:

    Greg

    Attached Files:

  4. Soaring

    Soaring Middle School Student

    Joined:
    Nov 7, 2007
    Messages:
    957
    Likes Received:
    0
    Whooo! This'lll be nice to watch! I love watching old style ships being made in card. By the way, you're doing great so far!
  5. cjwalas

    cjwalas Member

    Joined:
    Nov 29, 2006
    Messages:
    354
    Likes Received:
    0
    I'll definitely be watching this one! I have a short stack of MM sailing ships and this is one near the top. Please mention ALL the little quirks you run into a long the way for the rest of us that may follow your footsteps one day!
    And best of luck on getting this one done to your liking. I'm sure it'll be an impressive model!
    Chris
  6. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0

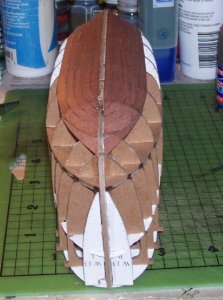

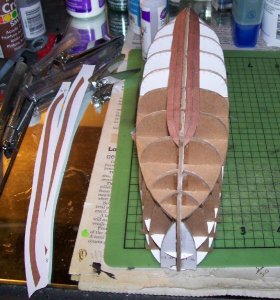

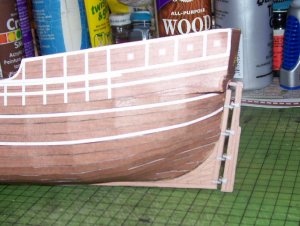

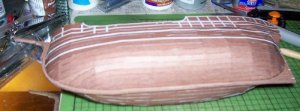

    Here are some pictures showing the hull planking process. I'm sure there are some tricks that would make this area look better, but I'm OK with the results so far. One thing to note: Parts 9P & L do not follow the numerical sequence of the rest of the hull planks. These are two triangular filler pieces that go on after parts 11P & L. See photo 2 below.

    One nice thing about the formers is that they have plank locating marks on them to help guide you on proper placement. Very helpful.:thumb:

    Greg

    Attached Files:

  7. cjwalas

    cjwalas Member

    Joined:
    Nov 29, 2006
    Messages:
    354
    Likes Received:
    0
    Looks to be coming along very nicely! (furiously scribbling notes) The fit on the planking looks good so far. No short end pieces or other traditional MM issues?
    Chris
  8. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0
    The ends at the stern are just a touch short. I think that touch up painting will address this issue OK. Part 5 (the rear most panel) seems short on the top. this may resolve itself later on. I guess I'll find out.

    Greg
  9. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0

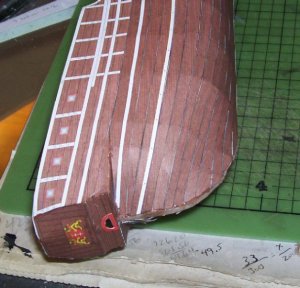

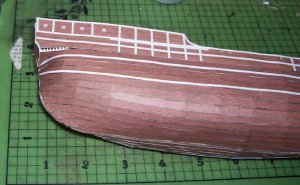

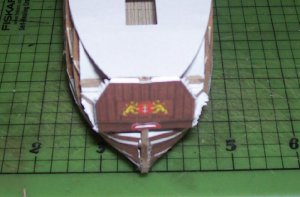

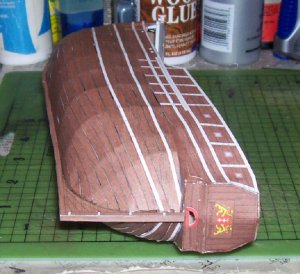

    Here is some more progress on the hull planking. I've also included a photo of the stern to show a possible trouble spot as I progress.

    Greg

    Attached Files:

  10. cjwalas

    cjwalas Member

    Joined:
    Nov 29, 2006
    Messages:
    354
    Likes Received:
    0
    Yes, that stern does look like a potential hiccup in the works. Is that an actual open space I see in the fit between the stern piece and the hull, or is it just a former or white paper?
    Chris
  11. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0
    The stern piece has two tabs at the top with a gap to straddle the vertical former. I think these were supposed to glue to the stern sub-deck piece, but they would not reach that far to fit. Also, I think I will have to do a little filling and painting where the hull planking is supposed to meet the former at the stern. I didn't do any sanding or shaping of the formers before starting the hull planking. I have had to trim some former edges as I go to get the planking to look half decent. I'm sure I could have done a better job. Live and learn I guess.:oops:

    Greg
  12. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0
    O K. I've run into some real trouble with the hull planking. At the stern of the ship. I will post pictures Monday morning, but basically I mislocated a couple pieces, (parts 4 and 5) and the hull planking was adversely affected. I've had to fill gaps, trim planks and cobble things together. If building this again, I would do all the planking except parts 20P & L, then go back and place parts 4 & 5. I would alsoshape the formers better before planking them. With all the trouble I've had, I'm now inclined to just build the ship without rigging and chalk this up as a learning experience. I did receive this kit as a bonus from the papermodelstore, so I'm not that worried if the end result looks like ....peasoup

    greg
  13. cjwalas

    cjwalas Member

    Joined:
    Nov 29, 2006
    Messages:
    354
    Likes Received:
    0
    You've got to keep going, Greg! Think of all the poor, unfortunate modelers your helping...well, me anyway! This is exactly the kind of thing I suspected would be an issue with this and other MM kits. I know they can be made to look very good, if not fantastic. But I suspect there's a real learning curve to them and you're on it! DON'T GIVE UP THE SHIP!
    Chris
  14. Tim Crowe

    Tim Crowe Member

    Joined:
    Jul 16, 2007
    Messages:
    119
    Likes Received:
    0
    DON'T GIVE UP!

    There's a lot of people relying on you to show them how to build the ship

    Me included

    Tim
  15. Soaring

    Soaring Middle School Student

    Joined:
    Nov 7, 2007
    Messages:
    957
    Likes Received:
    0
    I third it! Don't give up! I've seen some boat builds have gaps in their hulls. They filled in the gaps, and coated it with paint! Try it sometime, it makes it look amazing.
  16. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0

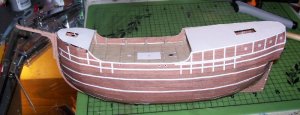

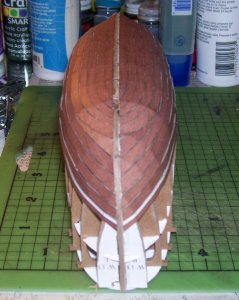

    Do not fear, I'm not done Yet! I'm just rreeaall frustrated! At least I was. Now that I'm past the planking part (which I actually enjoyed at the beginning), things are going a little smoother. Now that I have the keel and rudder in place, I believe my positioning of parts 4 and 5 is actually correct. Why this crap doesn't fit in the back like it's supposed to is beyond me. It must be an MM thing. :curse:

    Here are some photo's to study.

    Greg

    Attached Files:

  17. Soaring

    Soaring Middle School Student

    Joined:
    Nov 7, 2007
    Messages:
    957
    Likes Received:
    0
    Pssst, Edge color with paint, paint the bottom ;) Then go over the planks to emphasize the edges. YOu're doing great! Keep going!
  18. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0
    Thank's for the advice. I tend to only edge color the stuff that really bothers me. At normal viewing distance the ship doesn't look too bad. My camera tends to pick up more than my eye does. My only hesitation to painting the hull as has been suggested is that the paint would hide all the nice woodgrain printing that I don't want to try and duplicate.

    If this were a steel hull ship I would be more apt to paint the hull.

    Greg
  19. modelperry

    modelperry Member

    Joined:
    Jun 16, 2007
    Messages:
    165
    Likes Received:
    0

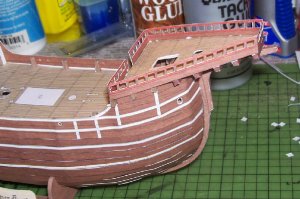

    Only one picture today of the forward deck. I had to trim one of the deck supports to conform to the hull, otherwise fit was good. I started work on the aft deck now. I think I've found the main culprit to the poor fit at the rear now. I will outline this in the next entry.

    I do plan on edge coloring the railing.

    Greg

    Attached Files:

  20. cjwalas

    cjwalas Member

    Joined:
    Nov 29, 2006
    Messages:
    354
    Likes Received:
    0
    Looking better and better! I look forward to your observations on the fit!
    Chris
