Overview of my Nscale layout

Discussion in 'N / Z Scale Model Trains' started by cpNscale, Jun 2, 2004.

  1. cpNscale

    cpNscale Member

    Joined:
    Nov 13, 2003
    Messages:
    117
    Likes Received:
    0

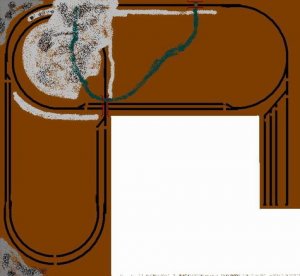

    Overview of my N scale layout

    I finally got all the track layed except my yard line but that won't take to much time.Its basically a door layout shaped in a L. Its 7 feet long by 5 feet wide on the upper section.Due to space restrictions i'm using 4% grades both on the back straight section and the spiral where the upper track enters my tunnel to the lower switch by the bridge.
    Please pardon the crudness of the picture but i haven,t been able to get any of the track software to work with my design.

    90% of the track is atlas flex track

    Attached Files:

  2. rcwatkins

    rcwatkins Member

    Joined:
    Jul 5, 2003
    Messages:
    468
    Likes Received:
    0
    So far so good, just hope to one day to see the real thing.
  3. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    :wave: Looks fine to me also. And welcome to the Gauge. Be sure to keep us posted with pictures. :thumb: :rolleyes:
  4. rcwatkins

    rcwatkins Member

    Joined:
    Jul 5, 2003
    Messages:
    468
    Likes Received:
    0
    He's been here since November but I too welcome cpNscale.
  5. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Great progress! Looking forward to more updates and pics!
    Ralph
  6. cpNscale

    cpNscale Member

    Joined:
    Nov 13, 2003
    Messages:
    117
    Likes Received:
    0
    Update

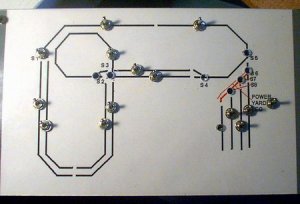

    Just finished building and wiring my control panal today.Just have to wire the remainder of the turnouts and the yard track.Am making progress slowly.Its nice to be able to run 2 trains at once on a DC layout.

    Attached Files:

  7. cidchase

    cidchase Active Member

    Joined:
    May 15, 2002
    Messages:
    1,640
    Likes Received:
    0
    cpNscale, I really like that plan. It seems to have a lot of desirable features,
    but still has lots of space for structures or what have you. Lookin' Good!!
    :thumb: :thumb: :cool:
  8. SD90

    SD90 Active Member

    Joined:
    May 23, 2003
    Messages:
    1,161
    Likes Received:
    0
    It does look good, lots of room for scenery too!
  9. MCL_RDG

    MCL_RDG Member

    Joined:
    Dec 8, 2002
    Messages:
    880
    Likes Received:
    0
    I once...

    ...ran my railroad...

    on a piece of plywood- probably no more than 2' x 4' sitting on top of a big corrugated box in my dad's basement.

    It had enough room to have an oval of track and I ran an n-scale Atlas 0-4-0 pulling 3 or 4 (5) passenger cars between Philadelphia and New York. I am pretty sure that when the transformer got too hot to touch I knew the train got to Phila. Then I graduated, with dad's assistance to a hollow core wood door.

    I miss the piece of 2' x 4', but I miss the hollow wood core too!

    Mark
  10. cpNscale

    cpNscale Member

    Joined:
    Nov 13, 2003
    Messages:
    117
    Likes Received:
    0

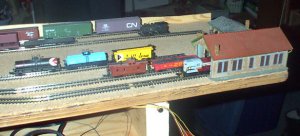

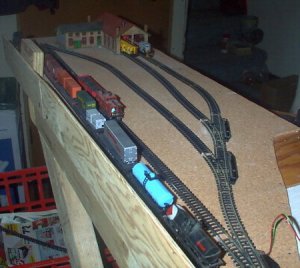

    Yard picture 1

    Finally laid the yard track today.Now i need to wire the turnouts and power wires and then im all set

    Attached Files:

  11. cpNscale

    cpNscale Member

    Joined:
    Nov 13, 2003
    Messages:
    117
    Likes Received:
    0

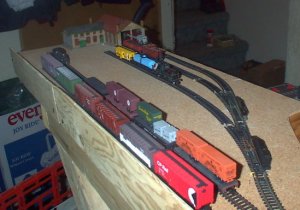

    Yard Picture 2

    Also how can i add multiple images to a post.Trying to add with the size requirement is a pain.

    Attached Files:

  12. cpNscale

    cpNscale Member

    Joined:
    Nov 13, 2003
    Messages:
    117
    Likes Received:
    0

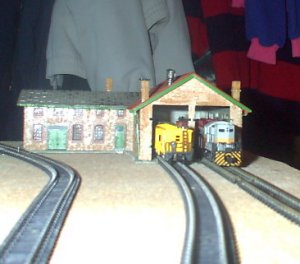

    Yard Pic 3

    This will be temporary until i replace the no.4 turnouts leading to the service building with 2 no.6's.And replace the buiding with a more modern facility as well.
  13. Papa Bear

    Papa Bear Member

    Joined:
    Dec 29, 2003
    Messages:
    630
    Likes Received:
    0
    Looks great, CP! :thumb:
  14. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Looking great so far, can't wait to see more pic's of the layout :thumb: :thumb:
  15. cpNscale

    cpNscale Member

    Joined:
    Nov 13, 2003
    Messages:
    117
    Likes Received:
    0

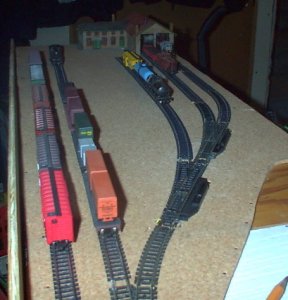

    I have replaced the 2 no4 turnouts with no 6's and straightened out the center track now.Power is wired just need to wire the turnouts.

    Attached Files:

  16. rcwatkins

    rcwatkins Member

    Joined:
    Jul 5, 2003
    Messages:
    468
    Likes Received:
    0
    All I'm getting now is the x.
  17. cpNscale

    cpNscale Member

    Joined:
    Nov 13, 2003
    Messages:
    117
    Likes Received:
    0
    I got the new yard pictures uploaded thru The-Gauge,needed to get them under the 68k size restriction.Seems RailImages web site is off line now too
  18. cpNscale

    cpNscale Member

    Joined:
    Nov 13, 2003
    Messages:
    117
    Likes Received:
    0
    Been awhile since i had a time to keep my progress updated.But now have most my plaster down and painted a base coat of tan over the entire layout .Now getting ready to start the senic painting.
    [​IMG]
    [​IMG]
    [​IMG]
  19. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Nice to see your progress especially now the scenery is in the works
  20. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Coming Along Nicely!

    Looking great! Keep us posted! :thumb:
