ORP"Burza"- the beginning of general repair-start

Discussion in 'Ship & Watercraft Models' started by Orion, Jun 24, 2005.

  1. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0
    From details which I executed , then:
    central manhole boiler room:
    [​IMG]

    manholes under pole:
    [​IMG]

    ventilation:
    [​IMG]

    bow hawsepipe:
    [​IMG]

    continuation...next
  2. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0
    Main anchor lift:
    [​IMG]
    [​IMG]

    ....and on board of ship:
    [​IMG][​IMG]

    ..tbc
  3. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0
    and several pictures of lift yet:
    ][​IMG]
    [​IMG][​IMG]

    cannons came into being also:
    [​IMG]

    continuation...next
  4. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0

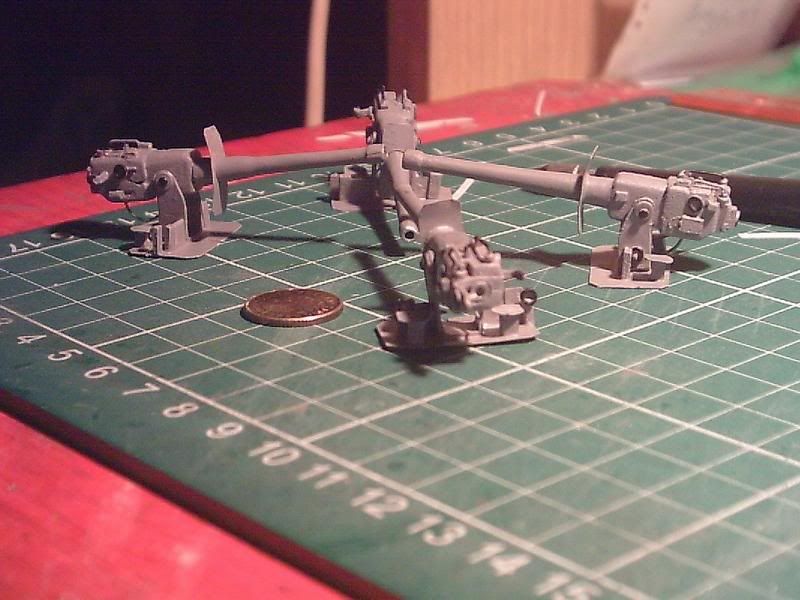

    continue cannons:

    ][​IMG][​IMG]
    [​IMG][​IMG]

    to be continued
  5. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0
    Polish technicians " they folded" it in the whole, adding " tarpaulin casings":
    [​IMG]

    and they installed on ship:
    [​IMG][​IMG][​IMG]

    finished..uff
  6. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0
    Hi All

    I wanted you to introduce the more far progresses of works over repair of ORP "Burza" ("Storm").
    For reminder, model is not "cut-out paper" but it comes into being "from new".
    I execute model on datum feature of the Modeler's Plans number 143.

    I`ll not describe all but the next stages of repair will show the pictures.
    It changed very a lot of " on ship"......

    So, let`s begin:

    quarter - deck on stern of ship:
    [​IMG][​IMG][​IMG]

    tracks for trolleys of depth bombs and fenders of screws :
    [​IMG]

    to be continued
  7. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0
    tracks for trolleys of depth bombs and fenders of screws :
    [​IMG][​IMG]

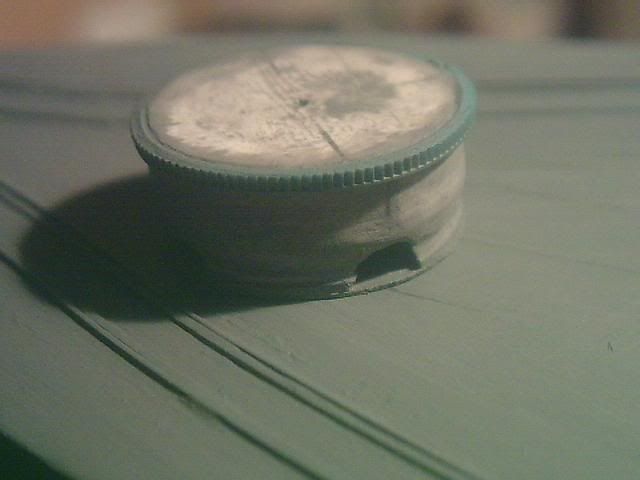

    basis of launcher of torpedoes:
    [​IMG]

    and stage of her building:
    [​IMG]

    tbc
  8. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0
    Next pictures:
    [​IMG][​IMG]

    [​IMG][​IMG]

    tbc
  9. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0
    platform cannons on stern :
    [​IMG]

    quarter - deck on stern, platform of headlight :
    [​IMG][​IMG]

    tbc
  10. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0
    stairs of main quarter - deck and between deck:
    [​IMG][​IMG]

    manholes and "glow-worms" on stern:
    [​IMG]

    and present, general view of stern:
    [​IMG]

    to be continued
  11. Orion

    Orion Member

    Joined:
    Jun 19, 2005
    Messages:
    36
    Likes Received:
    0
    and on end, present view general model:
    [​IMG]

    Many details stayed to realization yet. From "large" elements:
    4 well - sweep of boat
    2 poles ( main and on stern)
    machine guns "Maxim 08"
    cannons anti-aircraft "Vickers" 40mm

    and lots...lots of "small fragments".

    I`ve hope, that you " I`d not bore"
