ngauger - challenge #1

N Gauger

1:20.3 Train Addict
Ok - everyone that has just started in the hobby... or are afraid that you might make mistakes......

The last words you sometimes hear a redneck say is: "Hold my beer and watch this"!!!!

I was trying to decide what the heck I wanted to do for the scratchbuild challenge and I decided on a Steam Engine Repair/ Maintence facility.

I proceeded today to rip out the sub flooring of the transfer table.. giving me a 3 ft x 2 ft area to work wioth :)

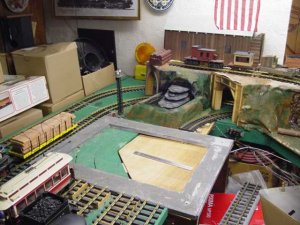

I examined the area....... as below - that's a 1 ft long steel ruler there.....


Attachments

  • Layout 006.jpg
    Layout 006.jpg
    41.1 KB · Views: 283

N Gauger

1:20.3 Train Addict

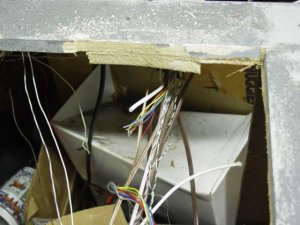

I grabbed the jig saw and started cutting.....

All together now: announce1 Hold my beer and watch this!!!!!
......... What's wrong with this picture?!?!?!?! :cry: :rolleyes: :cry: :rolleyes: :cry:


Attachments

  • Layout 007.jpg
    Layout 007.jpg
    31.9 KB · Views: 286

N Gauger

1:20.3 Train Addict
Well, i DID remember to move the wires on the "other end" of the table :D

I forgot this end..... I did have the forsight (ok - Idiot proofing ability) to make sure all wires that ran around the layout were ALL Different colors :D :D :D

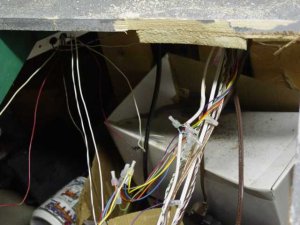

20 min of "wasted time" later it looked like below....

Notes: Solder & Flux are good to always have around... As are Crimp connectors...

~~~~ "Flux" is Not the only 4 letter word I used today!! stooges8 stooges8 stooges8
wall1 wall1 wall1 wall1 wall1 wall1 wall1 wall1 wall1 wall1 wall1


Attachments

  • Layout 008.jpg
    Layout 008.jpg
    30.3 KB · Views: 286

N Gauger

1:20.3 Train Addict
So, A lesson to all concerned...

!~~ Use all different color wires

~~ Mark them some way if you can

~~ Always measure twice, Look 3 times and cut once :D :D :D :D

~~ Never think for a minute to be overwhelmed with anyones ability - Us experienced people (I Started in 82) make mistakes too :D :D :D

~~ Everythings Funny - till someone gets hurt... Then it's Hysterical!!!!!!

~~ Noone was hurt today - No fingers lost - Just ego's brusedsign1 sign1 sign1


N Gauger

1:20.3 Train Addict
sign1 Never thought of that - they are 12 & 24V wires - but everything was off anyway :) And yeah, at least a few sounded like it stooges8


N Gauger

1:20.3 Train Addict

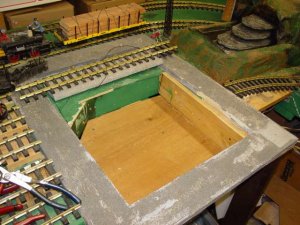

and since the 2 X 4's are secure... I could add the 1/4" plywood


Attachments

  • Sterling 2006 002.jpg
    Sterling 2006 002.jpg
    45.9 KB · Views: 222

N Gauger

1:20.3 Train Addict

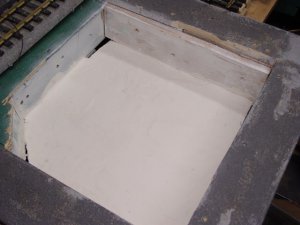

then the Spackle covering the plywood, to make he concrete floor :)


Attachments

  • Sterling 2006 038.jpg
    Sterling 2006 038.jpg
    34.5 KB · Views: 218

N Gauger

1:20.3 Train Addict

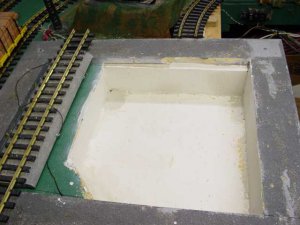

Well, I got the concrete walls done :) A lot of spakle and a very soft sponge and it's looking like it should :) So Far :)

I still have to design all the "stuff" that wil go into the pit... Ladders, Tools, grease etc.....


Attachments

  • Challenge.jpg
    28.1 KB · Views: 191

N Gauger

1:20.3 Train Addict
I'm trying to decide what to make the access lasdder out of - - Maybe that plastic I-beam and plastic tubes..... Or should it be stairs for access and not a ladder?????
