New switching yard

Discussion in 'Track Planning' started by spitfire, Feb 7, 2003.

  1. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

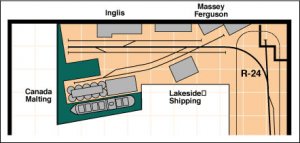

    Thanks to all the feedback from everyone on my previous thread I have decided not to try to combine switching and classification - duh! So, I've moved classification to the other side of the layout, where it will double as staging. Now I am free to concentrate on serving these busy industries. Incoming loads will be mainly sheet steel and grain, but with the shipping terminal I can bring in just about anything I want. Outgoing will be manufactured goods - appliances and farm machinery, and empties.
    The crossovers will have double slip switches. (grid is 12")

    cheers
    :D Val

    Attached Files:

  2. billk

    billk Active Member

    Joined:
    Jun 13, 2001
    Messages:
    1,192
    Likes Received:
    0
    Hey Val -
    I see 4 crossovers. Not all of these are double slip switches, I hope!

    Also, you might want to try doing some "paper switching sessions" with your diagram to see if you can spot or pickup cars at the various locations efficiently (or at all). For instance, how would a switcher pulling a car drop it off at the Inglis location?
    BillK
  3. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Hmmm, I see trouble here! :eek: :D
  4. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Val,

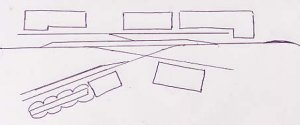

    You are ambitious! Double slips and cross overs! The complex trackwork would be interesting but I lean more to the simple and fewer headaches. May I suggest this alternative? It includes a cross over which I think is a great addition to industrial track scenes. You know, you might just build the benchwork for this area as large as you can and then fiddle with track templates or actual switches to determine the final plan. I rarely have a drawn plan end up reflecting reality. :)

    Ralph

    Attached Files:

  5. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Nice plan Ralph!
  6. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Thanks Ralph! That looks good too.

    Just want to clarify something with those who are more familiar with real ops. Can't the cars be backed into their respective sidings? I'm sure I don't need to have a runaround for every single siding do I?

    Val
  7. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Sure they can Val! You can have single spurs off the main line that can receive cars and send out cars that way. Only problem is it can only happen in one direction unless you don't mind the cars in front of the locomotive for the rest of the trip (a some time prototypic operation). Once you have your plan drawn, follow the track with your eye or finger and imagne its the loco. Playout dropping cars off and picking them up. You'll see where it can be done conveniently and where there may be complications.
    Happy planning!
    Ralph
  8. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0

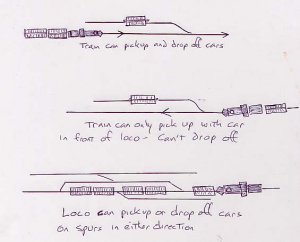

    Here's a little diagram of what I mean. In case the handwriting doesn't come out well in the picture I'll explain that the first diagram shows how a spur can be serviced by trains running in one direction.....but not so easily by trains running the other way (diagram 2). The bottom illustration shows how a single runaround siding can help a locomotive move cars into spurs going either direction. Maybe there will be places on your layout where its OK for trains to serve a spur in one direction only. That happens all the time on models and prototypes. A siding in an industrial area, however, gives you a lot of options.
    Hope this helps!
    Ralph

    Attached Files:

  9. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0

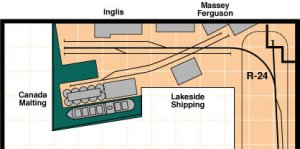

    AHA!!!! Now I understand - thank-you Ralph. So what you're saying is that it's better to have the spur coming off the opposite way from the direction of the train so it goes past the siding and backs in. Is that right?

    (Gee, I'm glad I ordered all that steel - and can benefit from some of your experience. My RR has some crazy fool at the helm who seems to have all the money and power but no actual experience - hmmm, maybe kinda prototypical after all LOL).

    Is this any better?

    cheers
    :rolleyes: Val

    Attached Files:

  10. sumpter250

    sumpter250 multiscale modelbuilder

    Joined:
    Jan 19, 2002
    Messages:
    3,217
    Likes Received:
    0
    Val,
    The New York & Atlantic, the current freight hauler on Long Island, deals with the "directional" problem by running push-pull. They have a loco at each end of the train. The photo I saw, showed two MP15ACs on the train. These were former METRO units.
    Pete

    P.S. Where you've indicated a ship, pierside, you might be able to modify a Lindberg, North Atlantic Fishing Trawler kit, for your vessel. The picture I posted in the "bridge pictures" thread, shows one of those kits, modified.
    P.
  11. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Looks good Val.
    Like your graphics Ralph...What Program is that.....Handpencil 2.0?
  12. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Thanks 88!

    Sumpter, I was drooling over those ship models earlier. I'll check out the Lindberg (and that thread again). Thanks for the tip.

    cheers
    :D Val
  13. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Nah 88, I got the upgrade, Pen 2.1 :)

    Val,

    Yep, that's what I'm saying from a model railroad operational convenience stand point. You can place stub ended spurs all over the layout in different directions. "Eastbound" trains can serve some while "westbound" can serve the others.

    I imagine on some prototype RRs and on large model RRs, cars are picked up from some spurs and transported to the next yard where they are sorted into a train that actually goes back past the spur to the car's origin. Folks more into operations might clarify this.

    Any way, have fun above all else and enjoy planning the track configuration for this interesting scene. Grain elevators, ships, and lots of trackage will make it a winner!

    Is next week the one you're taking off to start building?
    Ralph
  14. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Val:
    Just for fun, envisage moving a car from Canada Malting to the MF plant.
    It's on the same siding but...
    (I know it's not logical.) Also from Inglis to MF.
    And where does Strachan Avenue go?
  15. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Ralph, it's the week of the 17th that I have off. I'll be cleaning out and painting the Train Room and hopefully get to starting the benchwork. Your diagrams are making this very easy to understand, and thanks again!

    David, Strachan Ave hmmm? You're right, I will need to work that in, or maybe Bathurst St. I kinda like that truss bridge on Bathurst over the tracks and Canada Malting is at the foot of Bathurst, but MF and Inglis are definitely closer to Strachan, so it's sort of a toss-up right now. I'm playing pretty fast and loose with the geography anyway!

    cheers
    :D Val
  16. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Hi Val its looking great, Hope all goes well with the bench work, how high will it be from the floor??

    You know ya just have to put Strachan street in it has a lot of History that name.;)
  17. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Thanks Chris. I'm thinking maybe 44" from the floor. That's about solar plexus height when I'm standing and eye-level when I'm sitting.

    cheers
    :D Val
