New Suspension Bridge Diorama

Discussion in 'Scratchin' & Bashin'' started by Mike R, Apr 28, 2003.

  1. Mike R

    Mike R Member

    Joined:
    Jan 18, 2002
    Messages:
    256
    Likes Received:
    0

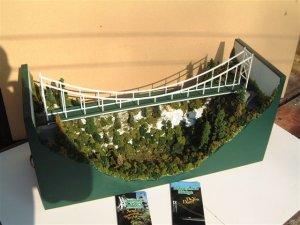

    Even though not a strictly 'railroad' bridge, I thought the 'bridge fans' might like to see this one. It's a diorama I just finished, featuring a pedestrian suspension bridge, currently being built at Scenic Caves, near Collingwood.

    This model will be going into a display at a tourism marketing venue.
    It's approximately 87:1, but heavily compressed for length, as the real bridge will be over 400' long.

    I had to use wood for the 'cabling', after being unsuccessful in soldering up brass shapes and music wire into the cabling.
    best regards / Mike

    Attached Files:

  2. Mike R

    Mike R Member

    Joined:
    Jan 18, 2002
    Messages:
    256
    Likes Received:
    0

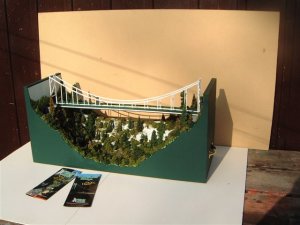

    Another view:
    regards / Mike

    Attached Files:

  3. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    Well done Mike
  4. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0
    Looks real good Mike.
  5. jimmybeersa

    jimmybeersa Member

    Joined:
    May 15, 2001
    Messages:
    516
    Likes Received:
    0
    Now thats a nice looking structure as a bridgefreek iI like it!!!!
  6. tomgschilling

    tomgschilling New Member

    Joined:
    Mar 10, 2003
    Messages:
    11
    Likes Received:
    0
    Mike, excellent bridge. What did you use for the facia surrounding the diorama Looks great. ...Tom
  7. Mike R

    Mike R Member

    Joined:
    Jan 18, 2002
    Messages:
    256
    Likes Received:
    0
    Tom;
    The basic 'box' was built with 5/8" particle board, all straight edges with 45 degree gusset corners.

    The fascia is 1/8" Masonite, freeform jigsawed. I glued my blue styrofoam up to the Masonite edges.
    Paint on the Masonite is just Hunter Green craft paint, "Plaid" brand.
    Then spraybombed clear acrylic.

    thanks everyone for the kind comments.
    regards / Mike
  8. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Great Job!!

    That's a beautiful little diorama, Mike! Both the bridge, & the surrounding scenery!
    :cool: :cool: :cool:
  9. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Mike, I hope the real bridge is as strong as the model looks.
  10. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Thumbs Up!

    :) :) Really impressive work! :) :)
  11. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Yeah, way to go. I've got plans to scratch-build a couple of bridges for my layout, I just hope I can measure up to work like this. :)

    Don
  12. CSX6638

    CSX6638 Member

    Joined:
    Jul 24, 2002
    Messages:
    139
    Likes Received:
    0
    Mike
    Thats a great looking bridge, a few HO scale figures walking on it
    and one taking photos of the valley at the middle of the bridge would kick your super dioarama up a notch.
  13. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
  14. Mike R

    Mike R Member

    Joined:
    Jan 18, 2002
    Messages:
    256
    Likes Received:
    0
    CSX6638;
    Valid points, but there's a couple of reasons why there's no figures on the unit.

    The prototype is 410' long, but because my client's display case width was limited, I had to compress the model a lot. It only scales at about 210' long. To partially compensate, I made the 'guardrails' lower [about 120:1.......TT still lives !]

    I tried a few LPB's on it when I was done, but to my eye, they made the bridge appear shorter. :eek:

    The other reason is that I quoted the client the LPB's as an extra $ item, and there was a bit of "sticker shock". I told them I could always add figures at a later date if they wished.
    ..thanks again everyone for your kind comments.
    regards / Mike
    :)
  15. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Very nice Mike, It would be really awesome to see it at the full scale size. Do you know when the real bridge will be built or completed? It will be worth the drive to come and see it. In Souris Manitoba there is a long swing bridge across the river. Real fun to walk across.
  16. Mike R

    Mike R Member

    Joined:
    Jan 18, 2002
    Messages:
    256
    Likes Received:
    0
    Robin : Scenic Caves hope to be completed & open by May 24 with the new bridge. If you'd like to email me around then, I will check and confirm.
    I will however, be away fishing May 22-26 incl.
    Best regards / Mike:D
  17. K.V.Div

    K.V.Div Member

    Joined:
    May 11, 2001
    Messages:
    641
    Likes Received:
    0
    Beutifull Bridge and Diorama Mike, The scenery enhances the bridge to make the whole scene very realistic:cool:
    Cheers!

    Terry
  18. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Looks real good Mike.
