Need some help with locomotive power plant compartment

Discussion in 'Scratchin' & Bashin'' started by KCS, Aug 12, 2005.

  1. KCS

    KCS Member

    Joined:
    Nov 24, 2004
    Messages:
    488
    Likes Received:
    0
    All right. After have given it some thought about the wrecked train I posted about in the HO forum, I decided I'm going to turn those wrecked cars and locomotive into an actual train wreck scene. I have removed the motor along with the gears, worms, wiring, etc. I am putting a Cummins diesel power plant in the engine compartment. How ever I want that wrecked look of a few doors slung open and half torn off showing the inside of it. Any good idea's of how I can cut these door's out without damaging the paint and without making sloppy crooked lines? I'm trying to get as close to prototype as possible. Also how can I get the roof's and sides of box cars to be bowed upward so it looks like the real thing when all that weight collapses on it self? I figured for a fire look I would go outside on a couple cinder blocks and set some old parts sprues on fire and hold what items I want to look like they caught fire over the tops of the flame just close enough to catch the soot but without melting the plastic. Thanks in advance for any info.
  2. Marxed

    Marxed Member

    Joined:
    Jan 29, 2005
    Messages:
    428
    Likes Received:
    0
    for bending box cars and stuff.... your going to need to apply some heat.... i'm not sure exactly what would be best for this, therefore i'm not going to advise any heating method over another...


    doing doors could be hard... you could allways consider having it opened by damage, maybe a car flew upwards and struck the engine, tearing some of the side off...
  3. Glen Haasdyk

    Glen Haasdyk Active Member

    Joined:
    Feb 3, 2004
    Messages:
    1,313
    Likes Received:
    0
    When I was building model cars we would sometimes use thread or dental floss to 'saw' a door or trunk open. you would have to drill a hole in the door corner and slowly saw the thread back and forth along the door line. unfortunetly the plastic is considerably thicker than the sheet metal that the prototype door is to it would have to be thinned via filing and sanding.
    From the pictures that I've seen of train wrecks the cars stay reletivly intact if a boxcar is knocked off the tracks however the load inside will shift and sometimes the sides of the car will be bowed out for the load hitting it. this is probably best done with a soldering iron getting the plastic warm enough (don't touch the iron to the plastic! Just run ti next to it) until you can flex and bend the plastic by hand.
  4. KCS

    KCS Member

    Joined:
    Nov 24, 2004
    Messages:
    488
    Likes Received:
    0
    Thanks for that tip on using the thread. I took a piece of plastic of the same thing and drew some "fine" lines on it using a ruler and proceeded to cut with thread. It took about 20 strokes and made a perfect cut out line. I cut out two doors already using this method and it looks B-E-A-UTIFUL! Thanks much. As for the roof's of the box cars as I was saying, if you see some that have derailed and fallen over you will see that the weight of the car landing on itself creats a "hump" in the roof. I've sense many cars like this. Now on to the flat spots! :p
  5. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    :thumb: How about some pictures of you process Charles? :wave: Jim
  6. KCS

    KCS Member

    Joined:
    Nov 24, 2004
    Messages:
    488
    Likes Received:
    0
    I'll try to. We just got a new camera off ebay and it takes much better pictures than our webcam. I'm leaving out to make a run to Dallas,TX in the morning and I'll be back sometime tomorrow night. I'm going to take the locomotive with me to work on it in the truck while we wait for our trailer to get loaded. I do have the box car's weathered. I'm not to happy with how they look because this is my first time at weathering. The grab irons and other details on the cars that weren't damaged I went ahead and hand damaged myself for the added effect.
  7. Sunburn

    Sunburn Member

    Joined:
    Jun 24, 2005
    Messages:
    54
    Likes Received:
    0
    bending plastic

    I remember from way back when I was a kid building Tamiya military models that by dipping the parts in hot water you could bend them. I subsequently wrecked a Merkava tank body by putting it in contact with boiling water.
    This same technique could be CAREFULLY applied. If you coupled the water-heating's smooth and stretching disfigurement with some carefully applied cuts and punches you could have some pretty disastrous results, essentially creating a flattened car or a partial debris field.

    worse comes to worse, you break out the sledgehammer. :D
  8. KCS

    KCS Member

    Joined:
    Nov 24, 2004
    Messages:
    488
    Likes Received:
    0
    LMAO. I thought about that last part real hard. I tried the boiling water trick one time because I was told about it by many people but I came home and threw t around in my mind for a couple days and decided to give it a try. I was told if you need a figure (person) to fit something when it doesn't just dip it in boiling water and bent the arms and legs to the desired results. Well I gave it a try and I was having a hard time with it. It would cool to fast before I could bend anything or it melted to fast and cooled to fast again causeing the arm's and legs to break in two. I'm going to find an old car to experiment with now. I'm gonna give this another try.
  9. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

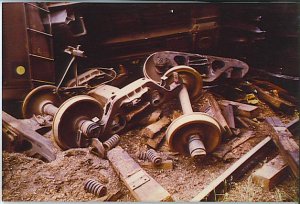

    Here's some pix from a freind who worked wreck trains for 30+ years on the old Frisco. This one show what a beating the trucks, ties and rails take. Note the truck springs scatter everywhere (something like my workbench when I sneeze at the wrong moment :oops: )

    Attached Files:

  10. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

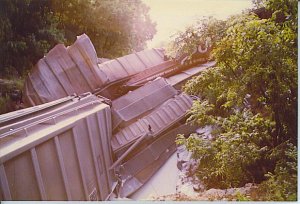

    Badger Pass, Missouri. This train accordioned itself after a rock slide hit it mid-train. Note how the sheet metal is ripped and torn as well as buckled. Note also the sand load from the hopper that was split open.

    Attached Files:

  11. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

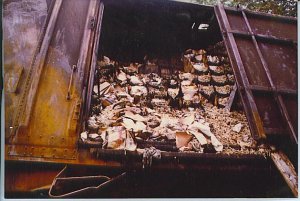

    French fries anyone? A reefer full of frozen potatoes that caught fire in the yard. Note the colors on the scorched sides of the car.

    Attached Files:

  12. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

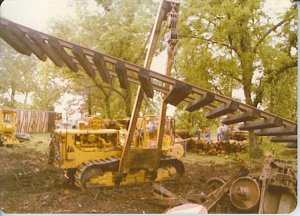

    This'll be easy enough to model with Atlas Snap-track :thumb: Wreck train crews work 24/7 'til the line is open---any way, any how and be sure it's done yesterday. .

    Attached Files:

  13. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

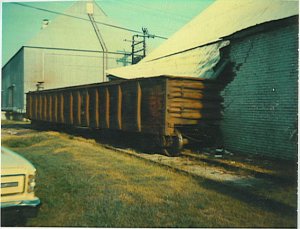

    And, for the folks with small pikes, wreck scenes don't have to take up a lot of space. One of your LPBs forgets to set the car brakes on a siding with a slight incline and you have a bad Monday morning scene like this one... Hope the pics give you some ideas :wave:

    Attached Files:

  14. Marxed

    Marxed Member

    Joined:
    Jan 29, 2005
    Messages:
    428
    Likes Received:
    0
