Need ideas for making a outdoor BBQ

Discussion in 'Scratchin' & Bashin'' started by 2slim, Mar 10, 2005.

  1. 2slim

    2slim Member

    Joined:
    Jan 16, 2004
    Messages:
    173
    Likes Received:
    0
    Want to build a gas or brickette type grill to go with a cabin scene I'm working on. **For HO Scale**

    TIA
    2slim
  2. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    What era slim? If it's the 1950's you could build one of those fancy suburban brick BBQs. If more modern then there's a couple ways to go: the round style that sits on a tripod, or the more enclosed kind.

    I'd start of with a Google image search to find the type of BBQ you want. Then use either brick sheet or styrene to make the enclosure, or wires for the tripod. There are engine detail parts you can use for the grill. Here's a sample of some of them.

    Hope this helps.

    Val
  3. 2slim

    2slim Member

    Joined:
    Jan 16, 2004
    Messages:
    173
    Likes Received:
    0
    Val,
    Thanks for the link, actually made me remember that I have some old pipe screens that I could use as the wire grill portion. The tripod type is what I'm thinking of, except that they now have 4 legs, (2 with wheels, wooo). And the bodies are now squarish with a lid. I did a google search and came up with a few photos, now just to find a suitable shape in the parts bin.

    2slim
  4. jetrock

    jetrock Member

    Joined:
    Dec 19, 2003
    Messages:
    956
    Likes Received:
    0
    pipe screens...heh.

    Most of that kind of barbecue are 2 or 3 feet across, so about 1/4"-3/8" would be about right. If you wanted to model a closed one as an item sitting in someone's backyard, a suitably sized plastic bead would work, with a piece of wire wrapped around the center and a few bits of narrow brass rod stuck in the base as the legs.

    For an open one, that could be interesting--if one wanted to get complex, two of the legs of the barbecue could actually be the leads of a red LED hooked to an under-the-table flicker circuit--that way you could have glowing "coals" for your HO scale backyard barbecue! As for the body, take a look in your desk drawer for pen caps of about the right diameter to savage for such purposes.

    Just don't ask anyone how to model HO scale ants...
  5. Doc Holliday

    Doc Holliday Member

    Joined:
    Oct 28, 2002
    Messages:
    630
    Likes Received:
    0
    I've seen a lot of rural barbeques home made from metal drums. Cut a HO scale drum in half, top with an air vent grill, add legs and you're ready for the ribs.
    Doc
  6. jetrock

    jetrock Member

    Joined:
    Dec 19, 2003
    Messages:
    956
    Likes Received:
    0
    Aha! Thinking outside the Webber Grill! Of course, the classic 55 gallon drum BBQ, available at any hobby shop! Just add a bit of screen culled frome one's friendly neighborhood, ahem, tobacco-accessories shop, brass rod legs, and if one is feeling daring, that LED I mentioned earlier. Paint it black and serve up the HO scale coleslaw...
  7. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

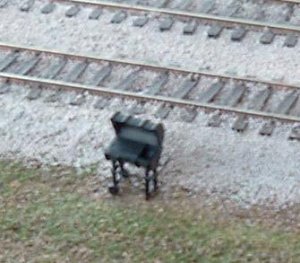

    Like this...though I didn't use screen, just a bit of styrene for a griddle. Ladder stock legs, two slices of styrene rod for wheels and a wire push handle were added to a barrel from a kit that came in halves.

    Attached Files:

  8. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Neat Bob!!!! :thumb:

    Val
  9. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Thank you, Val.

    Jet, the screens from faucet aerators carry less of a social stigma and can be purchased without dark sunglasses and a ball cap pulled down over your ears. ;) :p :D
  10. 2slim

    2slim Member

    Joined:
    Jan 16, 2004
    Messages:
    173
    Likes Received:
    0
    Jetrock,
    That's a cool idea for a closed BBQ, the open one sounds do-able but a bit ambitious for me, still a good idea though.

    Bob,
    I knew you would come up with a cool idea, I'm actually going to use a freight car brake cylinder from my parts box. I sawed it in half length wize and tilted the top back. This is going to be a table top grill. Bob, I know you have built a picnic table can you share some pic's?
    2slim
  11. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0

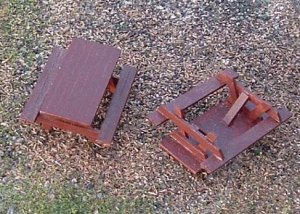

    If you need dimensions, PM me. Hmmmmm...I like the idea of a table top grill, hmmmm....lessee what's in the junk box.... ;)

    Attached Files:
