Need help planning layout

Discussion in 'Track Planning' started by Dakota train, Mar 2, 2007.

  1. Dakota train

    Dakota train Member

    Joined:
    Mar 30, 2006
    Messages:
    51
    Likes Received:
    0

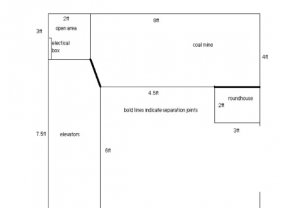

    I am in need of some help designing a layout in HO. I have tried using Atlas's program with no luck. So I'm asking for help from the great people of THE GAUGE. I'm not really going to model a specific year, but I would say more Steam era and transition period. Want to keep the wiring simple so no reverse loops, the elevator row will have three sidings, mine area will have at least two sidings. The rest is up for design.

    Attached Files:

  2. yellowlynn

    yellowlynn Member

    Joined:
    Jul 8, 2001
    Messages:
    787
    Likes Received:
    0
    First question: can you walk around all sides of it? If not, that top right corner is going to be a real doozey to do ANYTHING on.

    Lynn
  3. Dakota train

    Dakota train Member

    Joined:
    Mar 30, 2006
    Messages:
    51
    Likes Received:
    0
    bad corner

    No I cant walk around the sides of it. My plan was to first build the 4X8 area and then when time and money allows add on with the roundhouse section and the elevator row section. I know it would be a long reach with the roundhouse section on to reach any derailments. But I do have a long reach and with the help of mechanical arm, should be no problems to get the cars. All scenery will be done when building the 4x8, before any additions are put on. Thanks for the reply:wave:

    Terrell

    PS. Gage still likes the little steamer.
  4. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    If the only "obstructions" in the room are the electrical panel, and the door, you would be far better off building some sort of round the walls shelf with a duckunder or swing/lift section at the door and electrical panel (or even a very narrow shelf unde the panel, depending on how high it is).

    My favourite layout fo about this size is Mike Hamer's Boston & Maine: http://www.ovar.ca/Mike Hamer/Hamer.htm

    Without the surround staging, it is pretty much the size of your room.

    Andrew
  5. Dakota train

    Dakota train Member

    Joined:
    Mar 30, 2006
    Messages:
    51
    Likes Received:
    0
    i didnt notice before, but some of the drawing is cut off. At the bottom of the drawing just right of the 2.5x7.5 bench is a doorway that goes to the utility room with a deep freezer in their. Don't want to try and slide a deep freeze under a layout. I do have to keep a opening for the electrical box due to the bottom of the box is only 31 inches from the floor. Its a big 200 Amp 40 space box. The room is 10X10 give or take a few inches. Thanks for the reply.
  6. yellowlynn

    yellowlynn Member

    Joined:
    Jul 8, 2001
    Messages:
    787
    Likes Received:
    0
    Are you planning an oval for continuous running on the 4 X 8, with the mining on the inside? That will be a deciding factor in track planning.

    Lynn
    Tell Gage "Hi"
  7. Dakota train

    Dakota train Member

    Joined:
    Mar 30, 2006
    Messages:
    51
    Likes Received:
    0
    I would like a continous loop for running. That would hopefully keep my sons attention.
  8. Dakota train

    Dakota train Member

    Joined:
    Mar 30, 2006
    Messages:
    51
    Likes Received:
    0
    Its very surprising that nobody has offered to help plan this layout. Just looking for some ideas. Every little bit helps.
  9. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,707
    Likes Received:
    0
    I think people are still trying to get their mind around your space. You will need access to the elcectrical panel, but the layout needs to be low enough for a child to use it. Do you plan to get to the electrical panel by crawling on your hands and knees? If you can't get to the space behind the layout, you can't reach the back of the 4 x 8 from the front unless you have 48 inch arms. If you are going to use 4 x 8 benchwork, it can only be against a wall if it is on castors, or has access hatches in the center. When you add a low enough height to work for a child, it is very difficult to design anything. Trains that would interest children can be very small radius. Make a 4 x 6 or 4 x 8 in the middle of the room for your children, and then build a shelf type around the walls for you. Once your layout is sufficiently completed to allow continuous running, the children can operate on your layout and take theirs down.
  10. BigJim

    BigJim Member

    Joined:
    Nov 19, 2006
    Messages:
    157
    Likes Received:
    0
    I think we need more information but access to the panel is a must (even if not required by law) The drawing below may not meet your local code (3' access in front open in most areas) but will be better than crawling. I think it is much better to have access on noth sides of 5' than one side of 4'.
    [​IMG]
    [​IMG]
  11. Dakota train

    Dakota train Member

    Joined:
    Mar 30, 2006
    Messages:
    51
    Likes Received:
    0
    Russ, i do plan on crawling under to access the elect. panel. And to be child friendly, I will just build a box for them to stand on as that's what my rr club has for the children. I know that 4x8 benchwork is not ideal especially if you cant move it. But the 4x8 will be the main for probably a couple of years before any additions are put on, so everything will be done. then when I do put the additions on and have a derailment and can't reach, out will come the the mechanical reach arm to assist. I dont want to sound stubborn about having a 4x8 base, but I would like continious running loop/s on the 4x8, so I would think more space the better. Unless someone can show me something narrower with cont. loops. Thanks:wave:
  12. yellowlynn

    yellowlynn Member

    Joined:
    Jul 8, 2001
    Messages:
    787
    Likes Received:
    0
    I've got a plan figured out in my head but haven't had a chance to draw it out. My drawing is about like my writing, do it in a hurry and even I can't decipher it:rolleyes: :rolleyes:

    Lynn
  13. yellowlynn

    yellowlynn Member

    Joined:
    Jul 8, 2001
    Messages:
    787
    Likes Received:
    0
    finally

    This may do it.

    Lynn

    Attached Files:

  14. yellowlynn

    yellowlynn Member

    Joined:
    Jul 8, 2001
    Messages:
    787
    Likes Received:
    0
    too long

    Sorry it took so long, but I had computer problems and still have scanner problems to work out.

    Lynn
  15. Dakota train

    Dakota train Member

    Joined:
    Mar 30, 2006
    Messages:
    51
    Likes Received:
    0
    Finally get to reply back, your layout design is similar to what I was thinking. I thought about a long passing siding that would start from the upper right corner over to the upper left corner, so i can park a long train on it and still run. One question I have is the branch line coming off of the main in the lower left of the 4x8. Just wondering what kind of radius I would need to make the corner, I would like the sidings to be as close to the inside edge as possible. I tried using RTS 7 program with no luck, they dont have all the sections of track needed to build a layout. So if anyone out there uses a better program and would like to draw out Yellowlynn's plan that would be wonderfull. It will probably save me alot of headaches down the road.

    Thanks YellowLynn for your help

    Terrell
  16. yellowlynn

    yellowlynn Member

    Joined:
    Jul 8, 2001
    Messages:
    787
    Likes Received:
    0
    little change

    Just tried coming off in a different direction. Is this more of what you had in mind?

    Lynn
