N Scale Scratchbuilt DPM Interior

Discussion in 'Scratchin' & Bashin'' started by FrankG, Apr 18, 2008.

  1. FrankG

    FrankG Member

    Joined:
    Nov 19, 2004
    Messages:
    111
    Likes Received:
    0

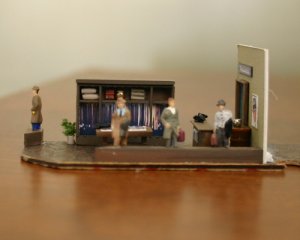

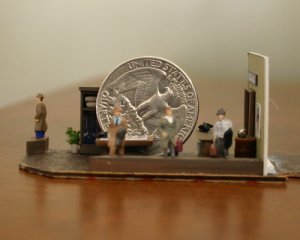

    I've completed a scratchbuilt interior for an N scale men's clothing store that I've been working on. This was designed to fit inside of DPM's corner apothecary kit.

    Here's how I've constructed it:

    - The flooring of this interior is a small counter top sample of Formica freely available from most home improvement stores cut to size on a table saw

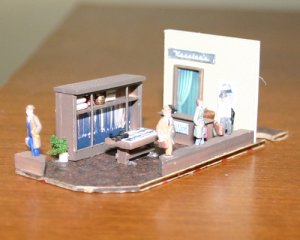

    - The back wall of the shop (shown in photos) is simple sheet styrene cut of size.with a paint swatch (again home improvement store) glued to the front of it. The paint swatch adds a small texture to the wall and you really get a wide selection of prototypical wall colors to choose from.
    - The inside wall of the structure (behind the big rack/shelf) has the same paint swatch glued direction inside the structure. This makes it much less critical for everything to be accurately aligned.
    - To the back wall (shown) I added a doorway with curtain, a 1940s Stetson ad and a Kessler’s company sign. All three of these printed details I created in Photoshop.
    - The door frame was cut from a piece in my scrap box. It was painted and the curtain attached behind it.
    - The window displays are made from strip styrene and cut to a 45 degree angle with a Chopper II.
    - The mannequins in the window are Woodland Scenic with the bottom of their legs removed. You can't tell the legs are cut down because the window displays sit just below the window's frame on the kit.
    - The clothing rack/shelf is made from parts from an HO scale fire escape kit. The railings of the fire escape form the vertical pieces of the shelving unit. The rest of the vertical railings were cut away. The rest of the shelving unit is made from a simple styrene box with this railing piece glued to the front. Two strips were added to form the top molding and the horizontal shelf.
    - A printout I created was added for the hanging suit jackets.
    - Misc. detail from my scrap box was added to the top shelf.
    - The potted plant was a tiny piece of kit sprue with green Woodland Scenics scenic material added to the top of it.
    - The display table is just a basic table shape make from strip styrene. To the top of that, I added a print out of folded shirts and a small bit of plastic so the table to appeared more dimensional.
    - The checkout counter is a block of styrene with a very thin styrene strip added to the top. I added a chunk of random black plastic to the top to represent a cash register and a small sign to the front of it.
    - Behind the counter, I added a plastic N scale barrel with a silver jewelry bit from a craft store to the top.

    I really wasn’t going for award-winning detail for this interior. Since the interior is difficult to see as a whole once in the structure, the idea was really to convey a lot going on with very little.

    I have a ton of info about the building of this interior on my N scale model railroading blog: N Scale Modeling

    Attached Files:

    • ki2.jpg
      File size:
      126.3 KB
      Views:
      152
    • ki3.jpg
      File size:
      119.1 KB
      Views:
      149
    • ki5.jpg
      File size:
      187.1 KB
      Views:
      150
    • ki8.jpg
      File size:
      139.3 KB
      Views:
      150
  2. ScratchyAngel

    ScratchyAngel Member

    Joined:
    Mar 26, 2008
    Messages:
    207
    Likes Received:
    0
    That's pretty sweet. Love your site too, saw it the other day with your post about the signs for the shop. It's not hard to believe the LBP are getting their new duds there.
  3. Art Decko

    Art Decko Member

    Joined:
    Oct 26, 2006
    Messages:
    440
    Likes Received:
    0
    *Very* nice work, especially considering the tiny scale! Thanks for giving us a look!
  4. Herc Driver

    Herc Driver Active Member

    Joined:
    Apr 19, 2005
    Messages:
    1,593
    Likes Received:
    0
    That is really great!
  5. RonP

    RonP Member of the WMRC

    Joined:
    Nov 3, 2006
    Messages:
    640
    Likes Received:
    0
    Very nicely done.
  6. nkp174

    nkp174 Active Member

    Joined:
    Oct 11, 2006
    Messages:
    1,549
    Likes Received:
    0
    I agree with the previous posts...very nice.
  7. tetters

    tetters Rail Spiking Fool!

    Joined:
    Jan 22, 2005
    Messages:
    905
    Likes Received:
    0
    That looks great! Your technique for creating neon signs in the windows is so clever yet simple too. Thanks for sharing.
  8. nachoman

    nachoman Guest

    :thumb: EGAD! THAT'S N-SCALE?!!!! :thumb:

    Kevin
  9. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0
    Very nicely done! All great ideas for any scale. :thumb: :thumb:

    I don't think I've seen a men's wear store with a 55 gallon drum behind the counter though... ;) :D

    Andrew
  10. BobGui

    BobGui New Member

    Joined:
    Mar 3, 2008
    Messages:
    21
    Likes Received:
    0
    Now that is skill that gives me a goal to reach. :thumb: If you ever have any leftovers that you haven't got room for let me know.
  11. COX 47

    COX 47 Member

    Joined:
    Dec 28, 2004
    Messages:
    133
    Likes Received:
    0
    Wow...Great job!!....Cox 47
  12. FrankG

    FrankG Member

    Joined:
    Nov 19, 2004
    Messages:
    111
    Likes Received:
    0
    Thanks for the comments.

    I used the barrel because it's far enough to the back of the store and is viewblocked by several things to really just look like a small round table.
  13. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0
    Cool...! Shame on me for not thinking outside the box, er... barrel ;) :D

    Andrew
  14. engineshop

    engineshop Member

    Joined:
    Apr 29, 2003
    Messages:
    143
    Likes Received:
    0
    Great ideas especially the neon signs. I now thinking of a flickering light module for those Bate's motel signs.
