My new industrial layout

Discussion in 'HO Scale Model Trains' started by Nomad, Aug 10, 2008.

  1. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0

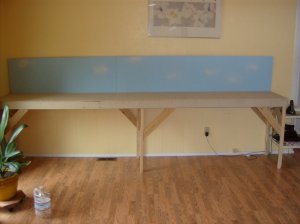

    Here is the table and trackplan for my industrial layout i will build this winter (2x12'). The track is ordered, (Atlas c 83) now i need to keep saving so i can start buying turnouts.

    Loren

    Attached Files:

  2. planeshavings42

    planeshavings42 Member

    Joined:
    Apr 13, 2002
    Messages:
    317
    Likes Received:
    0
    Great plan Loren, and you have obviously done a fine job on the bench work, that is probably the most important part of a layout is the solid, flat bench work, keep it up, and let us see progress as you are able.

    :thumb:
  3. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0

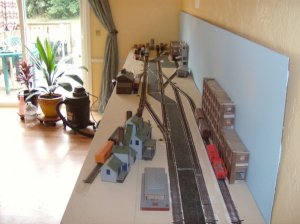

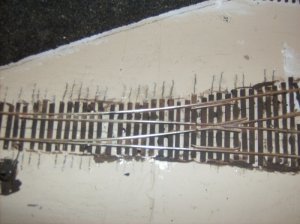

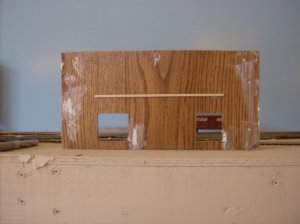

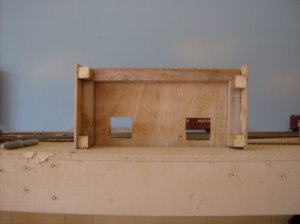

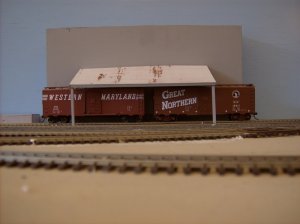

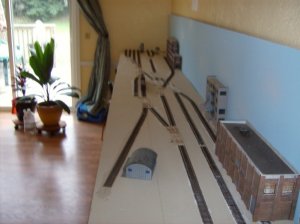

    Well, finally have some progress to show. Track work is done ( I even made my own turnouts this time )and i have been operating the layout working the bugs out. Here are some pics. Also some pics of a building i made, Gary s. style.
    Second picture shows the road made of asphalt roofing shingles.

    Loren

    Attached Files:

  4. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Nice set up Loren! Keep us up to date!
    Ralph
  5. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    Thanks Ralph. The weather is getting colder, so i will be working on it more now.

    Loren
  6. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    WOW AWESOME Loren!!! I love the buildings and the track plan :thumb: :thumb: :mrgreen: and you have one of my favorite little buildings i see, Centennial Mills :thumb: :mrgreen:

    Looking forward to seeing more progress shots :mrgreen:
  7. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    Charlie, i will get you a picture later today with explanation. You said full size turnout. You mean 1 to 1 scale?
    Thank you Josh.
    Charlie, just read this thread,
    http://www.zealot.com/forum/showthread.php?t=163105
    Now I know what you mean about the turnout.

    Loren
  8. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,949
    Likes Received:
    0
    Sweet! Excellent plan!

    Good job!:thumb:
  9. steamhead

    steamhead Active Member

    Joined:
    Apr 17, 2005
    Messages:
    2,527
    Likes Received:
    0
    Hi...I see you modified (or haven't finished..??) the area where you have a single spur at an angle. Your track plan shows two straight spurs here. Is there a reason behind the change..?
    It's amazing how much railroading can fit in a relatively small space....Good job..!!
  10. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0

    Attached Files:

  11. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    Thank you, Brakie. Coming from you, that is a great compliment:mrgreen:.

    Loren
  12. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    Gus, I ended up moving the industry that I show in the track plan to the spur on the top left because I forgot to leave room for my furniture factory.:oops: It was to big for anywhere else, so I had to change to a single track siding. Also, the way the way the original track plan looks, it looks like a double track main ( to me ) and I did not want that.

    Loren
  13. tetters

    tetters Rail Spiking Fool!

    Joined:
    Jan 22, 2005
    Messages:
    905
    Likes Received:
    0
    That looks great Loren!!! Your turnouts look awesome too. Can't wait to see some more. Awesome! :thumb: :thumb: :thumb:
  14. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    Thanks Tetters. I've seen the track work you do, so if you think mine are ok, I must be doing something right.

    Loren
  15. nkp174

    nkp174 Active Member

    Joined:
    Oct 11, 2006
    Messages:
    1,545
    Likes Received:
    0
    One of P2K's 0-6-0s would look awesome on there.

    Nice work on the turnouts!
  16. jesso

    jesso Member

    Joined:
    Jul 21, 2006
    Messages:
    725
    Likes Received:
    0
    Looking great! That looks like a fun little layout! You guys that are brave enough to build your own switches are really impressing me. I don't know if I'll ever do that.
  17. Fluesheet

    Fluesheet Member

    Joined:
    Jan 22, 2006
    Messages:
    367
    Likes Received:
    0
    First, I agree with Jesso - anyone who has the stones to take on a turnout as their first attempt at handlaying is doing right just on that fact alone! :cool: Until I actually try it and find out it's easy (or not), I'll always be impressed with you people who build them yourselves!

    Something that Tetters noted in one of his threads that would probably apply here - don't cut the length of your ties until everything is complete then - bzzzzzt - whack them all off even with a Dremel :twisted:

    Agreed! I love those locomotives - I need to get another...

    Also, I like the track plan - it gives me an idea for my grand plan that is under way. :thumb:


    Matt
  18. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
  19. tetters

    tetters Rail Spiking Fool!

    Joined:
    Jan 22, 2005
    Messages:
    905
    Likes Received:
    0
    Love those pictures. Thanks for posting them up!

    Loren, I'm excited to see you giving hand laying another go. If I'm not mistaken, you were getting a little "put off" by your attempts awhile ago. Glad to see you are getting good results this time around. This is going to be a great switching layout for sure. That is some good solid bench work you have there too. :thumb:



    I wonder if my wife would let me build a layout in the front room??? :p sign1
  20. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    Tetters, this time I want to take my time and enjoy the layout. Usually I get in a hurry to get the track done and run a train. So I use Atlas switches. Well, the Atlas turnouts I have have been on 3 layouts so far and were getting pretty sad looking, and I hated the thought of buying more when the train just clanks, banks and derails on the turnouts. So, I said this time I am going to do it right.

    Loren
