My Layout - No Questionaires!

Discussion in 'HO Scale Model Trains' started by Mastiffdog, Nov 27, 2003.

  1. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0
    Well, I have asked too many questions, and since it's Thanksgiving I thought I'd share my progress on the layout. I started it in May 2003. I used code 83 and code 70 Shinohara and 7 #6 and 1 #4 turnout onto a siding. My rail is spiked into true-scale pine roadbed ontop of 1/2" ply subroadbed. I used all Tortoise motors in conjunction with DS44 Stationary Digitrax decoders so that I can throw or close all turnouts on my handheld unit (this is fun!). My train room is 12x12 and the layout is 8x8 and I am planning coming off with a 2 1/2 by 10' "L" for more industries and turnouts.

    So, here's the photos!
  2. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0

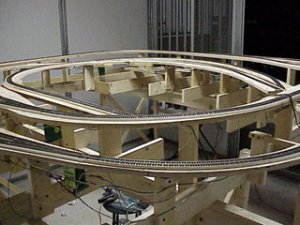

    Layout Photo 1

    It's in a horse tack room. At least I don't have to feed it.

    Attached Files:

  3. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0

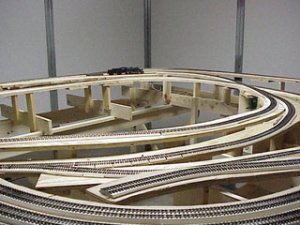

    Layout Photo 2

    Here's some more ...

    Attached Files:

  4. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0

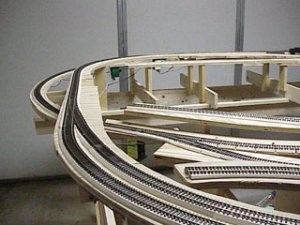

    Layout Photo 3

    I welcome your constructive criticism.

    Attached Files:

  5. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0
    Layout Photo 4

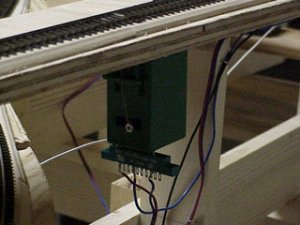

    A tortoise ... well worth the extra work to install!

    Attached Files:

  6. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0
    Layout Photo 5

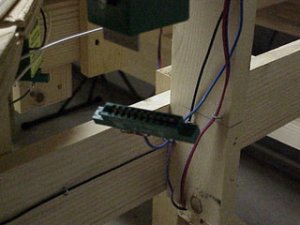

    I used "edge connectors" on my switch machines to make soldering and troubleshooting a breeze ...

    Attached Files:

  7. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0
    Layout Photo 6

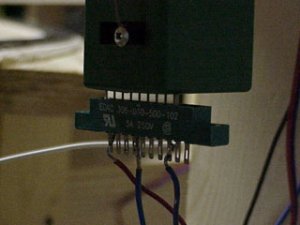

    They disconnect so you can solder your leads on the bench rather than to the Tortoise itself. Much easier.

    Attached Files:

  8. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0
    Layout Photo 7

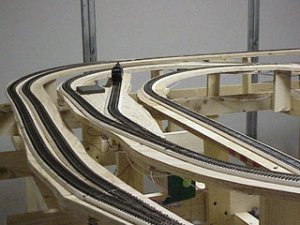

    Getting ready to weather rails now ...

    Attached Files:

  9. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0
    Layout Photo 8

    Track is solid and trains run great - using a Athearn Genesis USRA 2-8-2 for testing. Steam gives you the best feedback on track quality. I recommend making sure of this before moving on.

    Attached Files:

  10. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0
    Layout Photo 9

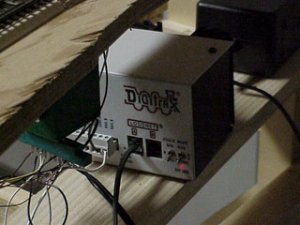

    For my rail power I am using the Digitrax Empire Builder. The last photo - thanks!

    Attached Files:

  11. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    This is one great layout mastiffdog. Would love to see progress photos as you go along.
  12. Eddie Landreth

    Eddie Landreth Member

    Joined:
    Mar 9, 2003
    Messages:
    115
    Likes Received:
    0
    Great looking work there, Mastiffdog. I can tell you've put a lot of effort into making it right. That benchwork looks very well done.
  13. grlakeslogger

    grlakeslogger Member

    Joined:
    Sep 3, 2003
    Messages:
    133
    Likes Received:
    0
    Lookin' good!!! Please keep the progress photos coming. It looks like you are quite a craftsman--a pleasure to see what you've posted so far.
    --Stu--
  14. Mastiffdog

    Mastiffdog Member

    Joined:
    Sep 7, 2003
    Messages:
    137
    Likes Received:
    0
    Wish I were ...

    This is my first HO layout, so I really appreciate the kind words from all of you so far. Hardly a craftsman! The only other layout I have done was N scale on a 4x8 board using Atlas sectional and DC power. I lost interest because it was single dimensional and using all of the Atlas buttons and sliders was confusing. DCC is alot easier once you adopt and understand the basic concepts.

    I really enjoy buidling the joist and riser benchwork. It fun to change elevations. I will use the cardboard strips and plaster towel method (Dave Frarry's Book) to start the scenary. Last night I was experimenting with weathering the track. I used "roof brown", "rail brown", flat gray, and flat black (very sparingly). I thought I would have to mask the tops of the rails, but I was able to wipe of the paint off the tops.

    I am new to weathering the Shinohara turnouts, would any one be willing to step me through the process so I don't paint my turnouts to the point of non-function?

    Thanks,

    Dog
  15. belg

    belg Member

    Joined:
    Apr 29, 2001
    Messages:
    900
    Likes Received:
    0
    Hey Dog I think the benchwork and track look great. But I think the comment you made about not having to feed it was a little off, I'm thinking in the long run you'll pay more for all your RR stuff then you would to feed a horse. That's kind of like saying you'll never pay for sex once you get married. Master Card Visa American Express ring any bells?????
  16. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Hiya my friend,
    I like the benchwork and trackwork very much, it sure looks as if it's going to be a busy railroad.
    Shamus
    [​IMG]
  17. Flangehead

    Flangehead Member

    Joined:
    Oct 18, 2003
    Messages:
    69
    Likes Received:
    0
    Looks like fun!
    I'll be looking forward to more pics as the layout progresses. Great idea on the connectors, I wish I had done that. Too late now, but I will replace the connectors whenever I work on a machine. I'm surprised I've never burned myself with falling solder when working under the layout. I call working under the benchwork " Making A Run To Stiphnech City".
  18. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    That's an impressive looking layout Dog.
