My Future Milwaukee Road Iowa Division Layout

Discussion in 'HO Scale Model Trains' started by stevechurch2222, Mar 8, 2008.

  1. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    For what you're getting, I guess thats not a bad deal, but dang I can not afford that! Maybe eventually I will
  2. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Steven,I think most of us are in that same boat as you.Hopefully things will turn around so we can all afford these products and others.
  3. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Right now I have my motive power figured out and the bay window caboose fleet figured out,now I am putting together my freight car fleet I want,no more than 80-85 cars on the layout.
  4. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    Excellent, I'll see if I can design a yard with a 90 car capacity.
  5. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Miles,That will be great,I can't wait to see the track plan.I will need space for the motive power and cabooses.I'm sure I will figure out what to do with the industrial spurs,it will give the layout plenty of operation including mainline running.
  6. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0

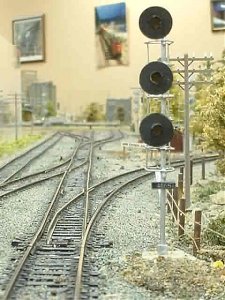

    Getting the freight car fleet worked out,hopefully that will be done in a day or two.Haven't got any of the cars yet,just figuring out the number of cars I will need for the layout.Looks like around the same amount I said earlier.The searchlight signals will look something like this photo from Signalogic but with a single head.

    Attached Files:

  7. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0

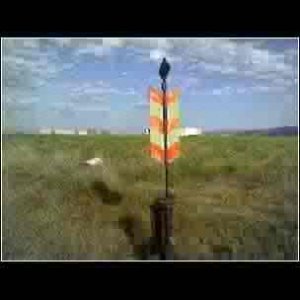

    I am going to have 3 or 4 of these perched in the trees along the Mississippi River on my layout,working on finishing the freight car fleet for my future layout.I am also using the Milwaukee Road chevron switch stands on the layout for the industries on the entrance to the yard.

    Attached Files:

  8. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    that'll be a really nice touch to add the eagles in there like that!
  9. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    I thought so too,since they are regular visitors every year along the river,there are even some nests along the river.
  10. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    I like the switch stands too.I will post the track plan as soon as it is done.
  11. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    Although I have never seen them myself, I've heard that the bald eagles like the area along the Illinois River, specifically around Starved Rock
  12. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    That is correct,they are also along the Missouri River near De Soto Bend in Iowa,Council Bluffs up to Sioux City.I'll post the updated track plan when it's finished.
  13. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    I am looking to add another pair of the griswold crossing signals with gates with the "A" frame gate arms from Signalogic.Hope to have the freight car fleet figured out sometime today or tomorrow.
  14. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Freight car fleet is almost done,should be done by this weekend,t will total no more than 90 cars.I will have 5 bay window cabooses,6 SD40-2's and 4 MP15AC's for a total of 12 engines on the layout so I can use everything I get in the future on the layout.No final track plan yet,soon I hope will post as I get it.
  15. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    I am changing the era on the future Milwaukee Road layout and having go through the current time as if the Milwaukee Road never went bankrupt,and rebuilt all of it's equipment,cabooses will still run on the layout and the color scheme will remain the same.
  16. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    I have just about got the freight car fleet worked out,I have decided to model the era from 1979-the present as if the Milwaukee Road rebuilt the entire Iowa Division with 132 pound rail and was well off fiancially.I have gotten a lot of good feed back about the 2nd plan,it originally was going to be double track back when the Rock Island was going to be included,but the Milwaukee Road will be the only railroad included on the layout.The changes I would like to make to the plan are single track instead of double track and show the yard tracks for the yards,8 tracks for the 1st yard and 6 tracks for the 2nd and 3rd yard.If someone would be willing to redraw the plan with these changes I would greatly appreciate it.The branch line and the industries will stay the same,and I need tracks for the motive power and a caboose track for my cabooses,I plan on having 4-5 bay window cabooses.Any help will be greatly appreciated.Thank You.The radius will still be 30" and the size will be 24'X24',not 25'x25'.Every thing else will remain the same.

    Attached Files:

  17. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    The passing sidings can be made into industrial spurs,and spurs for industries can be added to the branch line.
  18. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    I am looking at the area from Savanna,Illinois to Council Bluffs,Iowa for modeling,the same era 1979- present.
  19. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    I would like to put the bridge at the top since it will be 14' long and then where the bridge is in this photo put the branch line and the industrial spurs where the bridge is in the photo.The river will also go at the top.I will have an update this weekend,any replies will be appreciated.
  20. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0

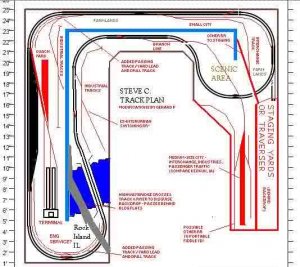

    View attachment 67270 View attachment 67270 I have drawn a peliminary plan in MS Paint Shop, it's the best I can do.I have X Trax Cad and Atlas Right Track software,but it doesn't come out right.Feel free to re draw the plan.Thanks.

    Attached Files:
