My Future Milwaukee Road Iowa Division Layout

Discussion in 'HO Scale Model Trains' started by stevechurch2222, Mar 8, 2008.

  1. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Miles Western,you can click on the state of Iowa on the map and it will show you the Iowa Division route,it ran east-west.
  2. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Miles Western,I have the copy of the map if you want to contact me off line. Steve Church Milwaukee Road Iowa Division
  3. MikeRR

    MikeRR New Member

    Joined:
    Mar 25, 2005
    Messages:
    2
    Likes Received:
    0
    hi,i am mike from ny,i seem 2 have a problen on my track i can not get any trains 2 run on that track,i have 2 separate trackd they do not connect in any way 1st i did runs fine,2nd dont run at all i try hooking up 2 power tracks 2 it n nothing all i get is over load on it i try other transformer n same thing over load, the track is lil bit bigger than other.i need some advice on this pls thanks.
  4. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    So back to the topic at hand...
  5. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Back to the topic,I am working out the track plan to upload,I will try to post later today.I remember trains on the Iowa Division with SD40-2's in the late 70's to early 1980 right before the shutdown,Also remember when the Milwaukee trains took the C&NW tracks at Tama,Iowa due to poor track conditions,That began on December1,1978 that's when C&NW SD45's were used at the point of Milwaukee Road Trains due to the fact the Milwaukee units were not set up to read the signals on the Northwestern.Trains I saw on the Iowa Division of the Milwaukee Road usually had all types of cars on it like auto racks,piggyback flats,tank cars,box cars,reefers,gondolas,
    gondolas,bulkhead flats,cement hoppers,grain hoppers and the bay window cabooses.These trains were fun to watch and it was fun to watch the MP15AC's switch an industry or work the yard classifying cars for different destinations.I miss those times and it was sad that the Iowa Division shutdown,I really miss those trains.This is the main reason I am planning for my future Milwaukee Road Iowa Division layout to re create those times in the 1979 to March23,1980 time frame.The only difference will be the track being rebuilt to 132 pound rail. Steve Church Milwaukee Road Iowa Division
  6. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0

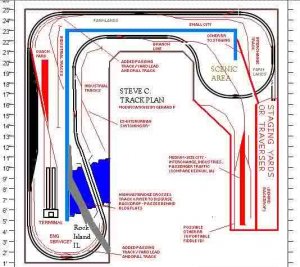

    I am unable to convert the track plan to a pdf or any other format.I have no plans on the bench work,I can send the original plan when Rock Island was going to be part of the layout and now it is not.The plan is double track but one track can be removed and the yard can have 8 tracks and the other yard 6 or 8 tracks. Here is the original plan,it just needs the one track removed to make it a single track mainline and the yards to have 8 tracks in the main yard and 6 in the other yard.The the coach yard can have 6 tracks and the staging yard can have 8 tracks so one yard can be for westbound trains and the other yard for eastbound trains.I like the industries on the plan,also the plan would have to be shrunk a foot on all sides since it is 25'x25' and I am going with 24'x24'.The swing truss drawbridge will still be 364' in scale length or a little over 52" long in HO Scale. The towns with the yards will be renamed Savanna,Illinois and Perry,Iowa. Steve Church Milwaukee Road Iowa Division

    Attached Files:

  7. Triplex

    Triplex Active Member

    Joined:
    Aug 24, 2005
    Messages:
    1,849
    Likes Received:
    0
    From the backdrop, I gather you have access all around.
  8. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    I sure will,I will add access hatches to get to the middle of the layout. Steve Church Milwaukee Road Iowa Division
  9. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    Steve, I'll see if I can draw up an alternate plan for you soon. Is the benchwork complete?

    The last thing you want with the problems you described is a hard to access hatch, they're quite uncomfortable to deal with, no matter how easy they are to get to. wall1
  10. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Miles nothing is complete with the bench work,waiting to rent a house some time this year.
  11. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    Would you like to go with the 2X4 foot connected module Idea for benchwork? Send me an E-mail, and we'll talk about it in more depth.
  12. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Miles,Sure.I will send you an e-mail.
  13. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Miles,Will the layout be accessable.If an oval track plan would it be a moveable section? or u shaped?if u shaped then two of the ends would have to be 6'x6' for the 30" radius curves and have an access hatch to get to the layout.Either way will work.Whatever will be easier.the added industrial spurs will make for a lot of switching,which will make the layout operate like a real railroad.I am thinking of not using the two PK2 GP38-2's,harder to add decoders and stick with 4 SD40-2's and 4 MP15AC's.
  14. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    Well, you'll just have to see, won't ya? ;) Just kidding.

    I'll post a rough sketch soon.
  15. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    fair enough.,I have started a new Iowa Division memories thread at the Milwaukee yahoo group,22 responses so far since I started it Sunday.I will choose a different theme each week,I am pleased with the responses so far.Hopefully that it will continue as it brings back memories I have of the Iowa Division,and also gives me the opportunity to learn more about the Iowa Division to help me in modeling it.
  16. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0

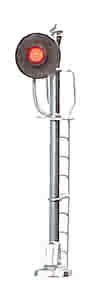

    I have my searchlight signal and grade crossing signals and the detection systems worked out,I am going with Signalogic for everything.They plan on having everything available this summer or fall.All the signals are to scale.I have attached what they will kind of look like.The pictures are not the actual
    product but they will look a lot like these pictures.The "A" frame gate arms will have flashing lights.Also the Iowa Division topic on the Yahoo Milwaukee Group will be about industries on the Iowa Division since I plan on having industries on the layout to switch. Steve Church Milwaukee Road Iowa Division

    Attached Files:

  17. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    stevechurch, does that grade crossing actually work? Lights flash, arm goes up/down? If so, I may have to invest in a couple eventually
  18. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0

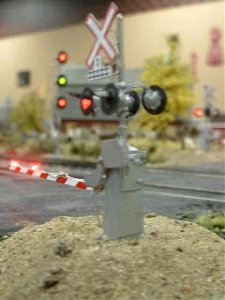

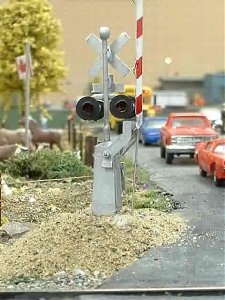

    Steven,Yes they will work.The gates will go up and down and the searchlight signals will change colors from green to res and then yellow and back to green.The signal system for the block signals and the grade crossing signals will work just like the prototype.ABS or CTC signaling for the block signals and the realistic signaling like a prototypical grade crossing.I attached a photo of some earlier signals that Signalogic had out.One photo has the gate in the upright position and the second photo is with the gate in the lowered position.Circuitron's tortise switch machine is used to activate the gates.

    Attached Files:

  19. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    that is way too cool! How much do those cost?
  20. stevechurch2222

    stevechurch2222 Member

    Joined:
    Dec 10, 2007
    Messages:
    141
    Likes Received:
    0
    Steven,about $250.00 for everything.That includes the signals with gates,and all the detection to make them work.The linkage and switch machine is also included.Kevin is his name and he will build any type crossing signal with gate that you want.All the searchlight signals and crossing signals with gates and with out gates and the detection systems should be out this summer or fall.I know some people think it's a high price,but for the time involved and the end result it's worth it.The Signaling Solution's price are not much different and the signals are not to scale like Signalogic's.The Signaling Solution uses Tomar Industries and NJ International signals plus what else is out there.I will keep every one updated on the layout plans.
