my first real attempt

Discussion in 'Scratchin' & Bashin'' started by csxengineer, Sep 20, 2003.

  1. csxengineer

    csxengineer Member

    Joined:
    May 16, 2003
    Messages:
    439
    Likes Received:
    0

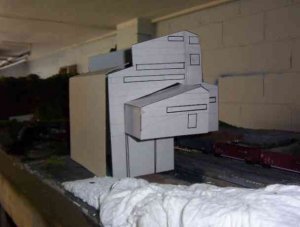

    I made a mock up off a coal mine from a single photo I found

    Attached Files:

  2. csxengineer

    csxengineer Member

    Joined:
    May 16, 2003
    Messages:
    439
    Likes Received:
    0

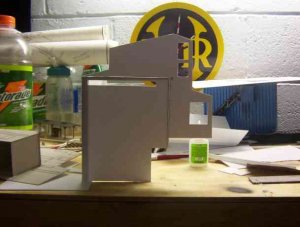

    step 2

    with Evergreen styrene, I started to build the rear and front part.

    Attached Files:

  3. csxengineer

    csxengineer Member

    Joined:
    May 16, 2003
    Messages:
    439
    Likes Received:
    0

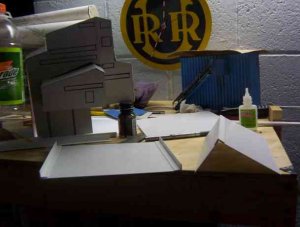

    step 3, the sides

    started the right side

    Attached Files:

  4. csxengineer

    csxengineer Member

    Joined:
    May 16, 2003
    Messages:
    439
    Likes Received:
    0

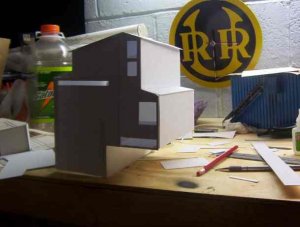

    step 4, glueing the front

    taking shape.

    Attached Files:

  5. csxengineer

    csxengineer Member

    Joined:
    May 16, 2003
    Messages:
    439
    Likes Received:
    0

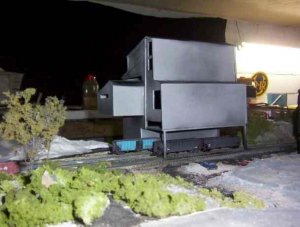

    step 5. test fitting it on layout

    still lots more to do.

    Attached Files:

  6. Greg Elems

    Greg Elems Member

    Joined:
    Dec 20, 2002
    Messages:
    414
    Likes Received:
    0
    WOW! :D :D Nice work. Looking forward to seeing your next installment.

    Greg
  7. Ray Marinaccio

    Ray Marinaccio Active Member

    Joined:
    Aug 4, 2003
    Messages:
    1,984
    Likes Received:
    0
    Yea, that's looking good.
  8. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,444
    Likes Received:
    0
    Wow,,,, your first attempt??? Very well done.
    No stopping you now:D
  9. Catt

    Catt Guest

    Scratchbuilding WARNING!!! this disease is highly contageous and VERY SATISFYING :D :D :D

    Nice work csx.
  10. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,348
    Likes Received:
    0
    Looking great !
  11. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,669
    Likes Received:
    0
    Thats a good looking coal mine csxengineer
    Hope to see more as it develops.
    Scratchbuilding is FUN
  12. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,715
    Likes Received:
    0
    Looks great csxengineer. Nice work.
  13. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,522
    Likes Received:
    0
    That project of yours looks interesting and it looks excellent work, keep us posted.

    Shamus
    [​IMG]
  14. csxengineer

    csxengineer Member

    Joined:
    May 16, 2003
    Messages:
    439
    Likes Received:
    0

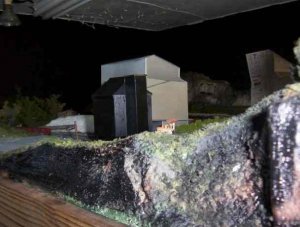

    a little paint

    okay, a little paint, still gotta do the windows

    Attached Files:

  15. csxengineer

    csxengineer Member

    Joined:
    May 16, 2003
    Messages:
    439
    Likes Received:
    0

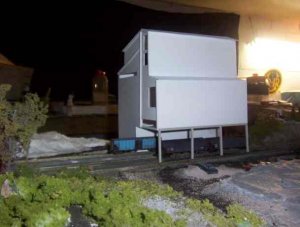

    other side

    other side

    Attached Files:

  16. csxengineer

    csxengineer Member

    Joined:
    May 16, 2003
    Messages:
    439
    Likes Received:
    0
    how do I make green tinted windows?

    how do I make green tinted windows? The industrial glass that is tinted green to let some sun in? I have clear styrene, but if I paint that green, it looks just like green plastic. Help. Also, what can I add to make this more realistic? Thanks
  17. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,215
    Likes Received:
    0
    That's the stuff! The mine looks good CSX! For green tinted windows try the school supplies aisle at your local store for transparent colored folders for school reports. For added realism how about some conveyors? Also maybe some steps. ladders, and platforms with railings so your mine workers can access different levels of the structure...Nice work!
    Ralph
  18. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,721
    Likes Received:
    0
    Somewhere, deep in the bowels of www.walthers.com, a sales rep is letting out a pitiful wailing at the thought of yet another modeler freed from the chains of store bought structure kits. Cool beans...
  19. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,024
    Likes Received:
    0
    Very nice, csx!
    That is some d%$# good scratchbuilding!
  20. pomperaugrr

    pomperaugrr Member

    Joined:
    May 21, 2003
    Messages:
    125
    Likes Received:
    0
    csxengineer:

    Most craft stores carry a spray paint for "stained glass" projects. This is safe for plastic and it translucent. A thin coat will allow you to see through it a bit. This is effective if you are lighting your structures. I used it on a couple of HO passenger cars I helped a friend with. It works very well, but be sure it's dry before handling it.

    Eric
