My first module

Discussion in 'Modular Layout Forum' started by ulf999, Sep 25, 2007.

  1. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
    My first module, build last fall, was a 72cm by 28cm straight section with a bridge. I used 9mm plywood for the frame and 22mm under the track.
    On this module I used Märklins c-track.

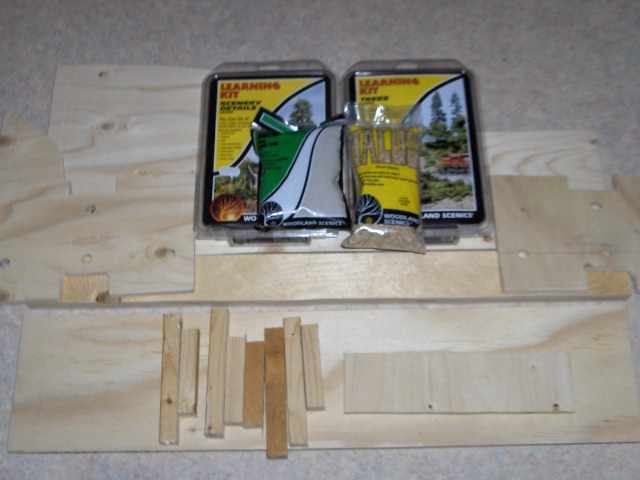

    The kit :)
    [​IMG]

    The sides are defined in a specification (guidelines).

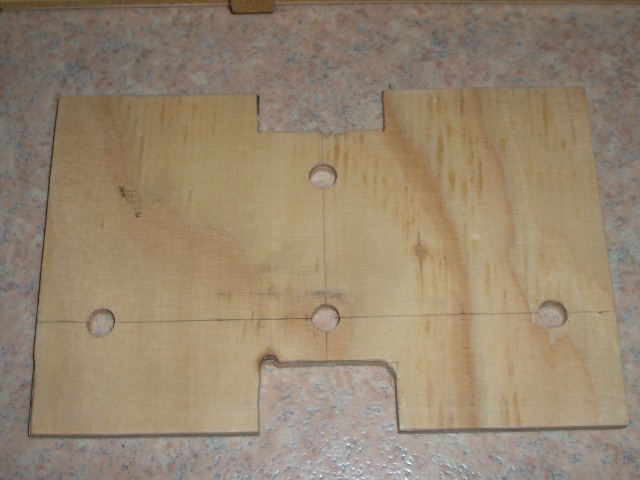

    12 mm holes spaced 5cm from bottom, 10 cm apart. in the center another hole 12 cm from bottom.
    The top 'cut out' is for the 22mm plywood carrying the rail (22mm * 60 mm). The bottom is for cables/wires. It is 30 * 60 mm.


    [​IMG]


    [​IMG]


    Preparing room for an Atlas girder plate bridge
    [​IMG]

    With the bridge in place
    [​IMG]

    Since I had no abutments laying around. Me and Evergreen took care of it.
    [​IMG]

    More work on the bridge abutments
    [​IMG]

    It seems to fit [:)] time to add the good ole' Humbrol Filler
    [​IMG]

    Some pink foam glued in place using latex.
    [​IMG]

    (news)paper in place, We're ready for the plaster cloth.
    [​IMG]
  2. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
    plastercloth in place.

    some newspaper wads as base for the riverbed.
    [​IMG]

    [​IMG]

    Slots cut out to fit the bridge abutments. Didn't turn out too bad...
    [​IMG]

    Next step will be to add some rock faces/castings and paint all the wooden sides black.
  3. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
    (images link to 500k images)
    Rockfaces attached using hydrocal
    [​IMG]

    I use aluminum foil between rockfaces to make the oozing hydrocal look more like the rocks
    [​IMG]

    Woodland scenics 'Earth Color Kit'
    [​IMG]

    I've used burnt umber, raw umber, stone gray och slate gray.
    [​IMG]
  4. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
    Plastercloth painted with a brown latex paint
    [​IMG]

    While the paint is still wet, I sprinkle some ground foam (WS, blended earth)
    [​IMG]

    It's getting there [:)]
    [​IMG]

    [​IMG]

    Next step will is to add more ground foam and soil + glue. some of the pictures here:
    ulf999/Mt_module/groundfoam - Photobucket - Video and Image Hosting
    Also reveals some white spots that I have to fix. Oh and of course, soon it's time to glue the bridge abutments in place as well
  5. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
    Tallus added (WS fine brown and coarse buff)
    [​IMG]

    The tallus etc is SOAKED with a mixture of white glue, water and rubbing alcohol.
    [​IMG]

    Abutments glued in place using latex. Bridge test fitted (to be painted...)
    [​IMG]

    The camera reveals quite a few spots where I will need to add a bunch of ground foam [:)]
  6. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
    The gaps around the bridge support has been fixed with putty
    [​IMG]
    Picture clickable for a larger image

    [​IMG]
    Picture clickable for a larger image

    the putty then painted with the same brown latex paint and sprinkled with earth blend ground foam
    [​IMG]
    Picture clickable for a larger image

    [​IMG]
    Picture clickable for a larger image

    [​IMG]
    Picture clickable for a larger image
  7. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
    The bridge has been prepared with for pre-ballast paiting:
    [​IMG]
    Picture clickable for larger image

    [​IMG]
    Picture clickable for larger image

    Ballast in place. Glue to come (hopefully it will look about the same when I'm done...)
    [​IMG]
    Picture clickable for larger image

    The UP ALCO was very eager to check out the new tracks [:D]
    [​IMG]
    Picture clickable for larger image

    A bunch more of pictures here


    Some weathering of the tracks and the ballast.
    In order to make the main line look like it's busy, I've given the rails some dirt [:)].
    Using a brush I first added a wash of PS earth diluted with 5 parts water. Then some PS grimy black diluted with 10 part water and finally on the outside a wash of PS rust 1 to 5.

    [​IMG]
    click for larger image

    [​IMG]
    click for larger image

    [​IMG]
    click for larger image

    I've also begun adding some WS Fine-leaf Foliage
  8. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
    Basically done!
    Pines planted. The trunks/roots need some low vegetation...

    I think it took me some 20-30 hrs to build this (inlc. bridge etc)

    All pictures clickabel for larger versions

    First out a 50s picture
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    That was it :)
    /Ulf
  9. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,691
    Likes Received:
    0
    Hey! That turned out very well. Great to have you here at the Gauge, and thnaks for the "how-to" photos.

    Welcome aboard!
  10. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    WOW!!!!! Awesome Module, Great work, and I loved the step-by-step pics too :thumb: :thumb: :thumb: :thumb:
  11. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    That is really nice ! Thank you.

    Loren
  12. nkp174

    nkp174 Active Member

    Joined:
    Oct 11, 2006
    Messages:
    1,545
    Likes Received:
    0
    Impressive.

    I'm curious, to most Swedish modelers of US trains use NEM style couplers on their models or do they use kadees?
  13. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
    I believe a lot of the European models have NEM style couplers.
    There are some kadees that can be used with the NEM pockets. I have a few, and I'm planning to replace to Kadees on the cars where it's possible
  14. nkp174

    nkp174 Active Member

    Joined:
    Oct 11, 2006
    Messages:
    1,545
    Likes Received:
    0
    That's cool. Do you have any plans for your next module?
  15. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
    Thanks, so far I have 7 modules. More to come :) Not quite sure if it'll be a station (using walther Golden Valley structures) or one featuring Walthers New River Mining...
  16. jesso

    jesso Member

    Joined:
    Jul 21, 2006
    Messages:
    725
    Likes Received:
    0
    Wow! That is great!

    You have seven modules? All I can say is, please post pictures!!!
  17. ulf999

    ulf999 Member

    Joined:
    Aug 14, 2007
    Messages:
    85
    Likes Received:
    0
  18. jesso

    jesso Member

    Joined:
    Jul 21, 2006
    Messages:
    725
    Likes Received:
    0
    Thanks! They are all great!
  19. Sarge_7

    Sarge_7 Member

    Joined:
    Oct 1, 2007
    Messages:
    422
    Likes Received:
    0
    Man that is awesome, love them pics!!!
  20. nachoman

    nachoman Guest

    Wow. That looks great. Do all your modules connect together?

    Kevin
