My Biggest Scratchbuilt Bridge

Discussion in 'Scratchin' & Bashin'' started by K.V.Div, May 2, 2003.

  1. K.V.Div

    K.V.Div Member

    Joined:
    May 11, 2001
    Messages:
    641
    Likes Received:
    0

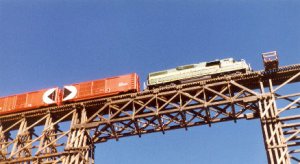

    Here are a few pis of an N Scale wood trestle I built a few years ago.
    The bridge measures a scale 405ft in length and 164ft in height and, while it follows no specific prototype, it is built to Canadian Pacific standard plans and is based loosely on the crossing at Bridal Veil Falls (now known as Fallslake Creek) on Canadian Pacific's now abandoned Coquihalla subdivision.
    I am planning to install it on a new oNeTrak module later this year.

    Terry

    Attached Files:

  2. K.V.Div

    K.V.Div Member

    Joined:
    May 11, 2001
    Messages:
    641
    Likes Received:
    0

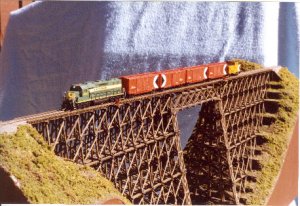

    Next pic.

    Attached Files:

  3. K.V.Div

    K.V.Div Member

    Joined:
    May 11, 2001
    Messages:
    641
    Likes Received:
    0

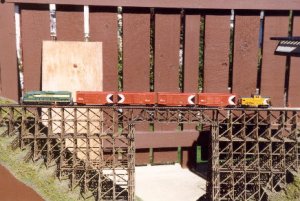

    One looking up from the creekbed

    Attached Files:

  4. K.V.Div

    K.V.Div Member

    Joined:
    May 11, 2001
    Messages:
    641
    Likes Received:
    0

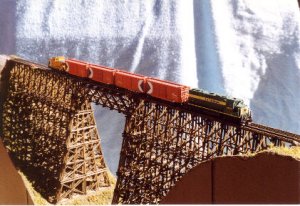

    Side on pic, sorry about the unprototypical backdrop:(

    Attached Files:

  5. K.V.Div

    K.V.Div Member

    Joined:
    May 11, 2001
    Messages:
    641
    Likes Received:
    0

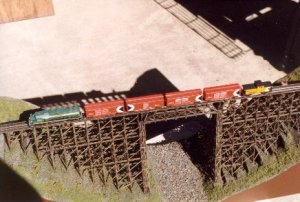

    And one from overhead. The train is there because I was asked to send along a few photos to accompany a custom painted model of an Esquimalt and Nanaimo Railfreight GP38 done for a customer and I decided to add a few peices of rolling stock for effect.
    Cheers!

    Terry

    Attached Files:

  6. Bob Collins

    Bob Collins Active Member

    Joined:
    Feb 2, 2001
    Messages:
    1,023
    Likes Received:
    0
    That is absolutely awesome.

    Is it okay to ask about how long it took to build it and approximately how many pieces are involved?

    Thanks for sharing.

    Bob
  7. Gary Pfeil

    Gary Pfeil Active Member

    Joined:
    May 8, 2001
    Messages:
    2,593
    Likes Received:
    0
    Fantastic!
  8. Mike R

    Mike R Member

    Joined:
    Jan 18, 2002
    Messages:
    256
    Likes Received:
    0
    Superb model, Terry. Did you keep track of how many hours it took ?
    regards / Mike:D
  9. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    best N scale bridge I've seen to date.

    that one shot from the creekbed looks like a real train to me.

    Good work................what's next?
  10. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    AWESOME !!!!!!!!!!!!!!!!!!! :cool:
  11. davidstrains

    davidstrains Active Member

    Joined:
    Aug 29, 2002
    Messages:
    1,061
    Likes Received:
    0
    That is really a great piece of craftsmanship. Outstanding job, Terry.
  12. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    WOW!!!! Impressive, that's all I can say.:)

    What material did you use, and do you have any idea of how much time it took to build?

    Don
  13. K.V.Div

    K.V.Div Member

    Joined:
    May 11, 2001
    Messages:
    641
    Likes Received:
    0
    Thanks for the comments guys. The bridge is constructed from Northeastern and Kappler stripwood. The Kappler wood is supplyed in N Scale dimensions, while with the Northeastern Product, I used HO size and divided by half.
    All peices were indiviually stained with thinned Polly Scale Oily Black prior to assembly and I lost count of the number of peices about 3/4 the way through construction (lost count at around 1400).
    I wanted a large bridge for an upcoming model train show competition in September of that year, so I decided to start early. Research and planning started in May and took the better part of two weeks, during which time I drew out a full size side-on plan as well as an overhead one.
    I spent aproximately 2 hours every day untill the beginning of September, for a total of just over 200 hours.
    The track is handlayed Code 55.
    Cheers!

    Terry
