ModelKopia SS21 Tochka TEL (1:50 to 1:35 kitbash)

Discussion in 'Armory & Military' started by Fishcarver, Dec 9, 2006.

  1. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    SS21 with Primer Paint

    Here is a shot of the Tochka missile, in its primer paint coats. Segments have been outlined with a black drawing pen. The paddle-shaped structures are steering vanes.

    Attached Files:

  2. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Adding Bits to the Hull

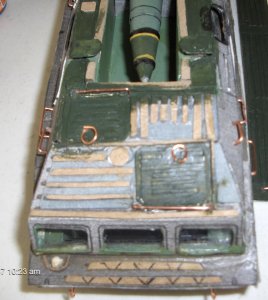

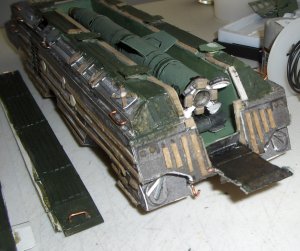

    I am adding grab irons, tow hooks and other "naughty bits" to the hull, using #20 copper wire. All major openings will be fully functional.

    Attached Files:

  3. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Here's another view:

    Attached Files:

  4. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

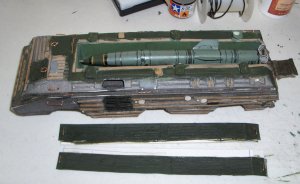

    Progress to date:

    So, here we are so far!!
    Next steps will be the jacks and the undercarriage.......................

    Attached Files:

  5. barry

    barry Active Member

    Joined:
    Jan 28, 2004
    Messages:
    2,369
    Likes Received:
    0
    I love watching your Russian factory Jim they are a bit like fairy tales a sort of ugly duckling that in the last scene becomes a fully flrdged swan and I sit here and wonder how did he do that all of a sudden.
  6. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Barry: I take this as high praise, given the quality of your own work!! Thanks!

    I sometimes wonder how these vehicles turn out as well as they do myself. Mind you, Russian Armour Green tends to hide a multitude of sins :)

    My wife is looking forward to the end of this build, as it is taking place on a folding table in the kitchen.........

    MTF

    Jim
  7. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Stabilizing Jacks

    I decided to "cheat" here!! ;-) (remember where the build is taking place!!)

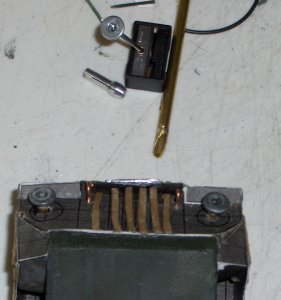

    After setting pieces of 3/32 ID brass tube into the hull for the hydraulics, I found some pop rivets in the bottom of one of my tool boxes. With a little reconfiguration, they become the stabilizing jacks, as seen here:

    Attached Files:

  8. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

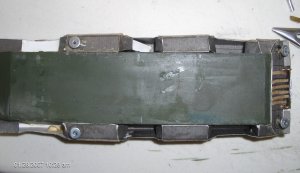

    The jacks are now all in place. To tighten up the fit of the jacks into the brass tubes, I wrapped the ends of the jack pistons with aluminum foil, secured with CA Glue.

    Attached Files:

  9. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    We start painting...

    The first of a couple of coats of Tamiya Russian Armour Green is being applied. Typiically, I'll put the first coat on with a large brush so as to get into all of the nooks, crannies and glue joints. I'll finish with an airbrush later.

    Slowly but surely, the model becomes a little less ugly. Still a lot of work to do, though....

    As an aside: yesterday, I sprayed the missile with Krylon matt finish and set it outside to dry in the rare BC sunshine. I forgot about it, and it stayed outside all night. There was no problem this morning: I just brought it in and let the frost dry off naturally. I'll finish painting it this week.

    Attached Files:

  10. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Moving Right Along Again:

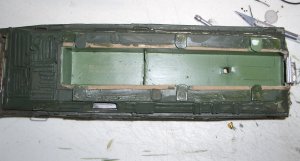

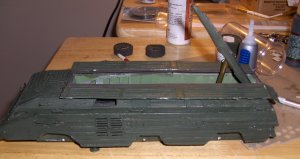

    With the hull details largely(but not completely) finished, the EL mechanism is installed. The hull gets another coat, and the sliding doors are test-fitted.

    Attached Files:

  11. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Another View.

    Attached Files:

  12. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Starting to Come Together

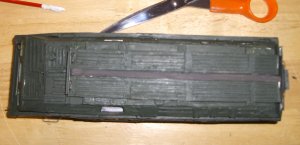

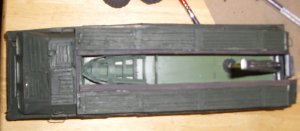

    Here is a top view, showing the (closed) operable missile doors:

    Attached Files:

  13. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

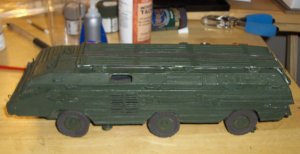

    ...And a side view, with the wheels in place. Still a few details to add to the hull yet, and some further painting. We are almost there!!.

    Attached Files:

  14. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

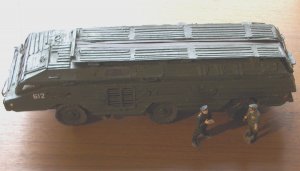

    The Finished Product

    Top View:

    The tac number is a dry transfer. "612" denotes the year and month of the start of the build

    Attached Files:

  15. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Doors Open

    Here are the missile doors open, with the missile stripped for transport. (I had to build a second missile for this shot!)

    Attached Files:

  16. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

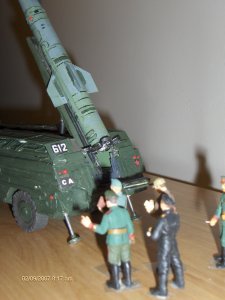

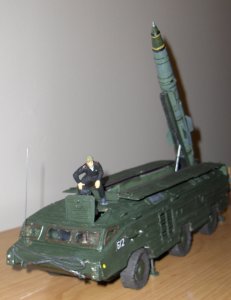

    Front Quarter View

    Attached Files:

  17. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1

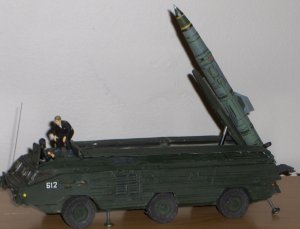

    Side View

    Attached Files:

  18. Fishcarver

    Fishcarver Active Member

    Joined:
    Jul 20, 2004
    Messages:
    890
    Likes Received:
    1
    Rear view

    Attached Files:

  19. josve

    josve Active Member

    Joined:
    Oct 21, 2005
    Messages:
    847
    Likes Received:
    214
    Congatulations with another great bashbuild Jim!!
    Already looking forward to your next project!!
  20. Clashster

    Clashster Member

    Joined:
    Dec 2, 2006
    Messages:
    585
    Likes Received:
    0
    very cool!
