    The tray that held the main chutes was pushed out too I,m guessing.The snorkles where giving A problem of letting in water too I read.Thanks for the pictures PK there seems to be not a whole lot of pictures of the capsule from that era.
  2. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71
    I,m thinking of redesigning the hatch lip where i can remove it .I,m thinking also velcro to hold it together.The aft section too, with the heat shield as part of the assemble .Also the whole body in 18 inch sections. With slip joints in the spurs and the out side skin holding the whole thing together with screws at the joints.That way it can be broken down so I can get it out of the room I,m building it in.I,m looking at a hardener for the paper too.But it can only be shipped in warm weather.The hardener will turn the paper rock hard and can be dyed to colors like silver ,gray and black.Also I,m thinking of a stand in pvc pipe to hold the whole thing when done.
  3. Paper Kosmonaut

    Paper Kosmonaut Member

    Joined:
    Jun 26, 2010
    Messages:
    132
    Likes Received:
    0
    Perhaps you'll find some interesting viewpoints or enlightening photos here.
  4. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71
    Yes thank you PK
  5. Closet Astronaut

    Closet Astronaut Member

    Joined:
    Nov 29, 2010
    Messages:
    296
    Likes Received:
    0
    A good paper hardener I have found is super glue, but you'd need a 55 gallon drum. I can't wait to see the pics of the main. Speaking of getting it out of the room, who was the auto maker that built the first car and had to knock out the wall of his garage to get the car out....I think it was Ford.
  6. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71
    Paverpol is the name and is safe as all hell
  7. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71

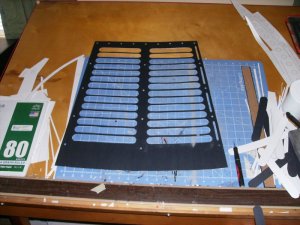

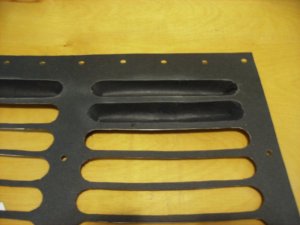

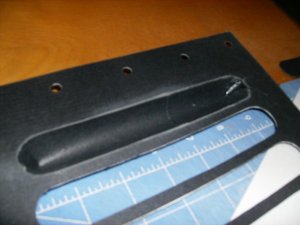

    009.jpg Now that I have shingles to play with I started to figure out how to make them louvered.
  8. WeeVikes

    WeeVikes Member

    Joined:
    Sep 6, 2007
    Messages:
    107
    Likes Received:
    0
    Wow...

    How many of these things do you have to make?
  9. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71
    I was told 1000 dimples.So I was thinking doing them on and off it will take me FOREVER!!!!Thats all right since I,m retired gives me some thing to do.
  10. Mercsim

    Mercsim Member

    Joined:
    May 28, 2007
    Messages:
    88
    Likes Received:
    0
    Plus the roughly 150 little vertical ones on the 'left' side of each shingle....

    I have cut a few out and done the same thing to try it. If its any consolation, I spent WAY more time researching, designing, modeling, drawing, converting, etc than you will making them....
  11. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71
    That is true Scott.I started to build some of the shingles because the plan is to the main body in three part.The first part will be the fore body and after body to the end of the first set of shingles.Slip joint and velcro and screws will hold the 3 sections together when displayed.Some of the equipment I will be scratch building for this section are. Launch oxygen valve-Suit pressure regular-co2 and odor absorber-suit compressor-emerency o2 rate valve-Suit circuit shutoff valve-Oxygen pressure reducer-Cabin pressure control valve-Water separator-Attitude gyro-Rate gyro-Amplifier calibrator[I have a lot on this one to really detail it]Landing system components-Batteries-Telemetry transmitter and power supply-Support couch-Water supply-Flight control handle-Oxygen supply-Camera correlation clock-survival kit-Inverter cooling duct-Capsule water tank.And as I find more in this area I try to include it.I also read up on the part and give a small description of it,s purpose.
  12. Closet Astronaut

    Closet Astronaut Member

    Joined:
    Nov 29, 2010
    Messages:
    296
    Likes Received:
    0
    And I thought building 5 F1s and 6 J2 engines for the 1/48 Sat V was repititious....
  13. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71
    Yes a lot of the main structure is but in the end the details are the fun part.It takes about 8 hours to do one.It,s cut out 3 times one pattren sheet 2 for the front and back and the insert.So I,m cutting out 4000 dimples.Then theres the sanding and filler and paint.But I think it will be worth it in the end.
  14. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71

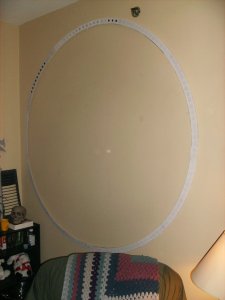

    Starting the aft section 002.jpg
  15. Closet Astronaut

    Closet Astronaut Member

    Joined:
    Nov 29, 2010
    Messages:
    296
    Likes Received:
    0
    Whoa! Thats big, hows the wife feel about hanging giant model parts on the wall?
  16. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71
    The girlfriend is fine with it.In fact we are getting a 2 bedroom apt together this spring.So we have a room to do paper models together.
  17. Closet Astronaut

    Closet Astronaut Member

    Joined:
    Nov 29, 2010
    Messages:
    296
    Likes Received:
    0
    Thats cool...a girl that enjoys the same hobbies. Better hang on to her. :thumb: My wife has 0 intrest in what I'm doing. But we've been married 26 yrs this May so.:wink:
  18. Closet Astronaut

    Closet Astronaut Member

    Joined:
    Nov 29, 2010
    Messages:
    296
    Likes Received:
    0
    Hey bud...I haven't seen any new photos in a while, must be busy busy making aaaalllllll those dimples. I'm sure you've probably thought of this but how about building a hundred or so, go work on some thing else for a while then come back to them, kinda switching on and off, should break up the monotony a bit.

    Just thinking out loud.
  19. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71
    I have been doing research.Looking at different paper and paints to get the titanium and allumium right.I have a titanium watch and when I ask the sales people I want the paper to look like this.They give me a strange look.Part of paper modeling I guess .LOL
  20. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71

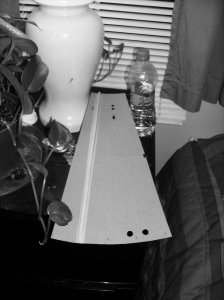

    011.jpg will get back to the full size one after i move.That way I won,t have to use the moving truck one more trip to move it.Started a 1/4 scale to work out some things on the scratch builds for the full one.wanted to see how close the colors where to the real one.So I went black and white on the photo. View attachment 96773
