Mine ore carts

Discussion in 'Gallery & Designs' started by ASC Mclaren, May 3, 2014.

  1. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209

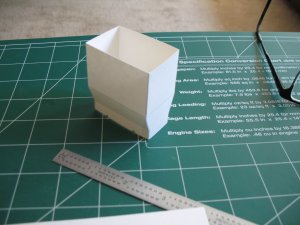

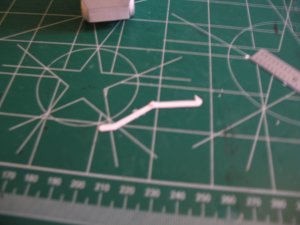

    So, I had a wild hair. My grandfather worked in the mines of Butte, MT. As a child we went back to Butte almost annually. I decided to design and build some ore carts. I did these as I could design the models using only a scale and pencil. I designed both with a 1" gauge and the intention of using HO wheels. I may design some wheels to go with. I do need to design the tilt lever to finish the first model. The first picture is the prototype for the first model. I may try to design the compressed air loco in the second picture (From the World Mining Museum, at the Orphan Girl mine Butte, MT. My grandfather worked in that mine among others). mine.jpg bbm-8.jpg IMG_2960.JPG IMG_2961.JPG IMG_2962.JPG IMG_2963.JPG IMG_2966.JPG IMG_2969.JPG

    Attached Files:

    Rhaven Blaack likes this.
  2. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,514
    Likes Received:
    2,451
    This is a cool idea and a GREAT way to honor your grandfather as well.
    I am looking forward to seeing how this project turns out.
  3. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209

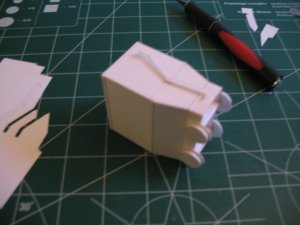

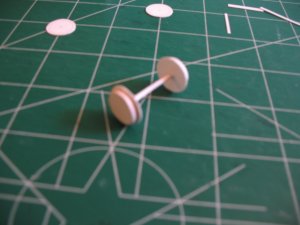

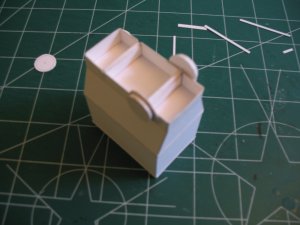

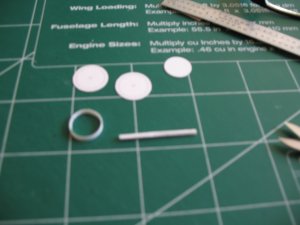

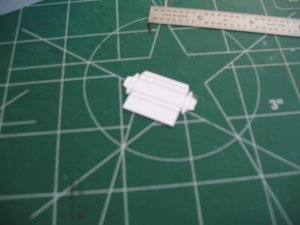

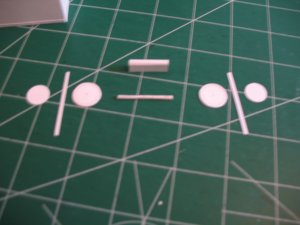

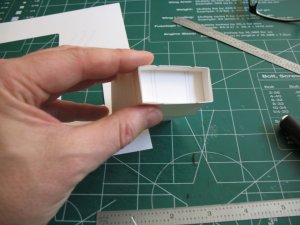

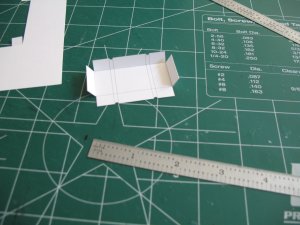

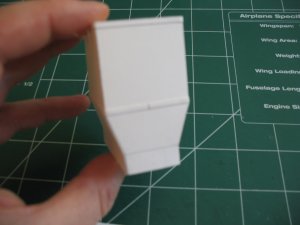

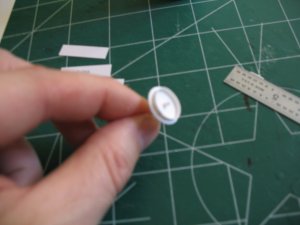

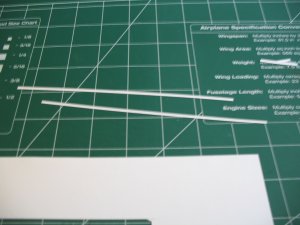

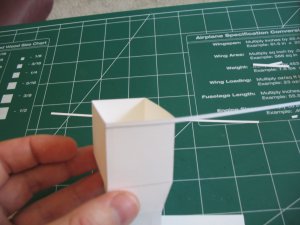

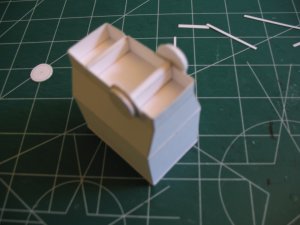

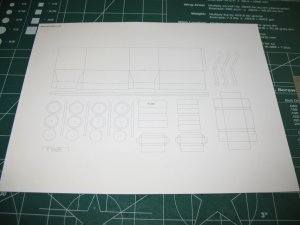

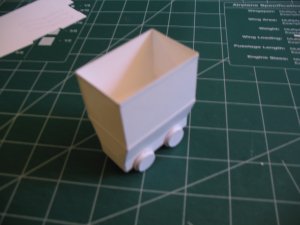

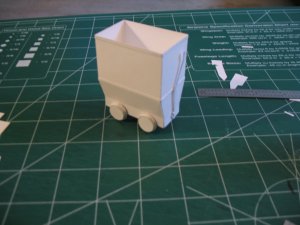

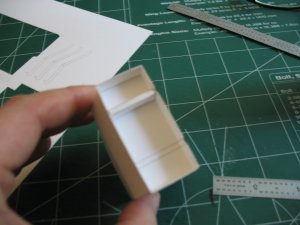

    Well, I tried to transfer the hand drawn model to a decent file, but no dice. So I re-drew the design in a 2D CAD program. This is the alpha build of the new file. The model is "in the white". There were only one real issue that I need to correct and I have modified the wheels for aesthetics. Those changes will be in the next build. If all goes well I will transfer the file from DXF to a more common file format and then look at texturing before making it available, if there is any interest. IMG_3095.JPG IMG_3097.JPG IMG_3098.JPG IMG_3099.JPG IMG_3100.JPG IMG_3101.JPG IMG_3102.JPG IMG_3103.JPG IMG_3104.JPG IMG_3106.JPG
  4. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209
    more pictures:

    Attached Files:

    Rhaven Blaack likes this.
  5. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    765
    Likes Received:
    209
    And the finished model: IMG_3123.JPG

    Attached Files:

    Rhaven Blaack likes this.
  6. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,514
    Likes Received:
    2,451
    That looks COOL!!!
    I am looking forward to seeing the texture!
  7. silveroxide

    silveroxide Well-Known Member

    Joined:
    Aug 23, 2007
    Messages:
    2,153
    Likes Received:
    489
    Great, I always love to see scratch builds. Something simple but with a history behind it.
  8. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,682
    Likes Received:
    3,523
    I really like models like this. They make great display pieces too. They preserve a tiny part of history, an important tiny part. :)
    ASC Mclaren likes this.
