Marlpost Update

Discussion in 'Modular Layout Forum' started by MasonJar, May 26, 2005.

  1. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,449
    Likes Received:
    0

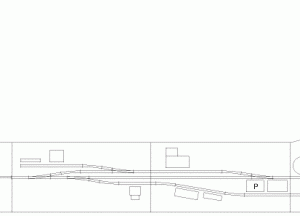

    Here is an update of my modular plans - in three parts.

    Andrew

    Attached Files:

  2. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,666
    Likes Received:
    0
    Looks good Andrew. Where are you at building these modules?
  3. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,449
    Likes Received:
    0
    Hi Robin,

    I have built the frames for the two modules making up the town. I have completed most of the buildings, and I have the kits for the others. :) All the rolling stock required for these industries has been acquired ;)

    However, with so much other stuff going on (e.g. kids, home renos, etc) it is going very slowly... :(

    Andrew
  4. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,488
    Likes Received:
    0
    Good Luck Andrew, the module plans look great.

    Are these HO-Track or N-Track modules?
  5. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,255
    Likes Received:
    0
    Cool!

    Looks great, Andrew! I'm going to be paying attention to your progress on this one. :thumb:
  6. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,449
    Likes Received:
    0
    Thanks guys.

    Will - they are HOTrak modules. The middle two are considered "Free-mo" - that is, they have a single main line centred between the front and back. The turntable module is a transition from free-mo to conventional (two main lines at the "front" of the module), and the junction is, well, a junction ;)

    Steve - Thanks! and I hope you have a long attention span! It will be a while, I am afraid... Just the nature of my railroading these days... ;)

    Andrew
  7. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,859
    Likes Received:
    0
    Looks Really Good Andrew
  8. tweet469

    tweet469 New Member

    Joined:
    Dec 14, 2004
    Messages:
    22
    Likes Received:
    0
    Mason, how did you do your drawings and display them? I have AutoCAD which does great for drawing modules, but I have been unable to post a drawing. I'm pretty good at using the program, but not that hot at using the computer online.
  9. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,449
    Likes Received:
    0
    Hi Tweet.

    The drawings were done by a friend who is very talented with XTrkCAD. He saved them as gifs (or jpegs, can't recall) and I posted them here. You need to make sure your drawings conform to the specs for The Gauge... there is a thread in the Photo forum about how to post.

    Andrew
