    Hi All

    I promissed to start this thread last week here:
    http://www.cardmodels.net/forum/showthread.php?t=4886&page=6
    , but cause of my modem breakdown i didn't. Now i'll try to repair this.

    My name is Leszek, I'm from Zakopane, Poland.
    I retourned to cardmodeling two years ago, after twelve years of break and the Essex is my best work for a while.
    Those photos shows the model under construction:
    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    Blue flight deck and planes were not with the kit, they were designed by my friend Origami especialy for this model and are avalaible to upload on his web site with many other planes in 1:200 and 1:300 scale.

    http://www.republika.pl/waspcv7/warsztat.htm

    I made some Dauntless, Hellcats, Helldivers and Avengers. Total 30 pieces.

    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    Spinning propeler effect is printed on transparent plastic card.
    The planes with the kit were violet and poor.

    [​IMG]

    The masts and radars i made myself with thiny iron and copper wires and cyanoacrylic glue.

    [​IMG]
    [​IMG] [​IMG]

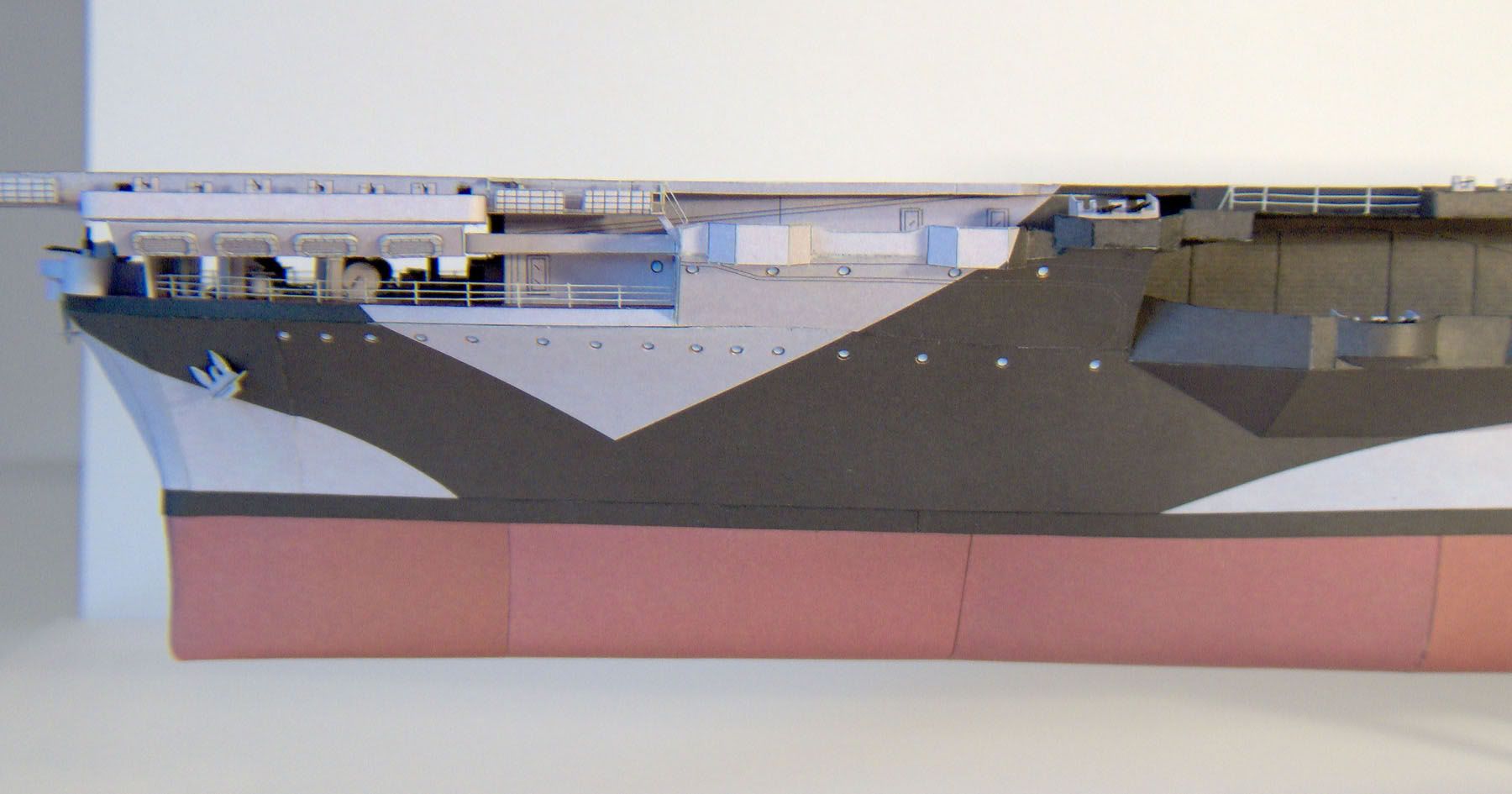

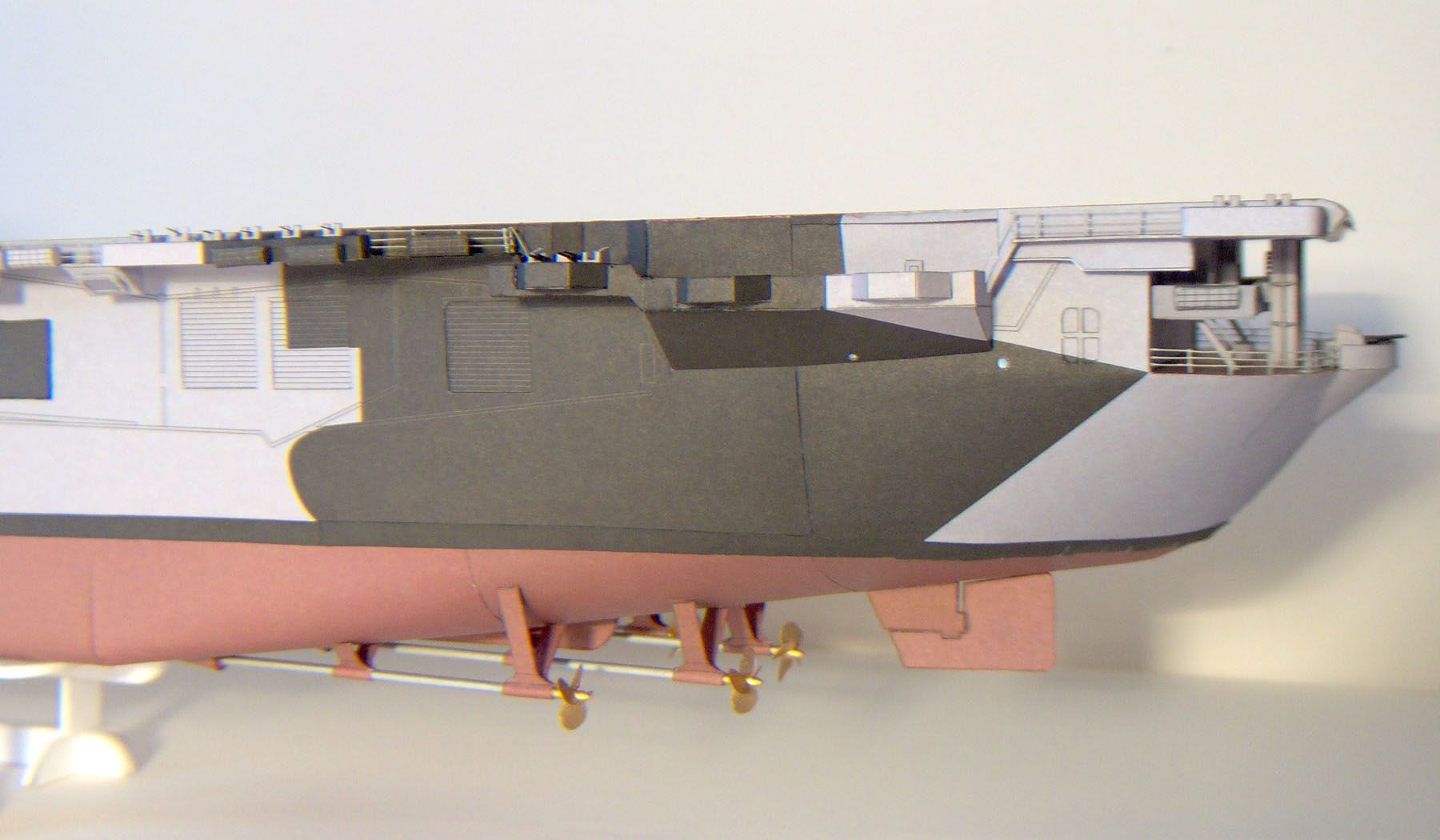

    Finally, some photos of finished model.

    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    I hope it's not to much and You enjoy to watching the pictures. :)
