Lunar Module LM5 / 1:12 / own design

Discussion in 'Space & Aeronautics' started by Waeschens, May 5, 2013.

  1. Waeschens

    Waeschens Member

    Joined:
    Jun 22, 2007
    Messages:
    48
    Likes Received:
    0
    Dear space freaks,
    after some small projects in xxs i will starting something in xxl. I don´t know how long it will take to finish this project because it has not the first priority in my life. But I hope that it is possible to get a model who is relevant to the original. The first step was to get the plans and photos of the LM5. After that I made the decision about the materials that I want to use.

    Regards from Germany

    Michael

    Attached Files:

  2. Waeschens

    Waeschens Member

    Joined:
    Jun 22, 2007
    Messages:
    48
    Likes Received:
    0

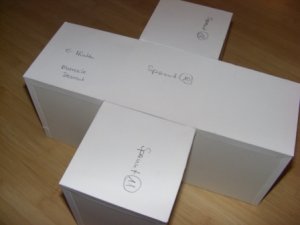

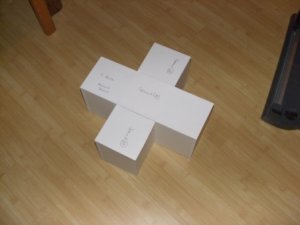

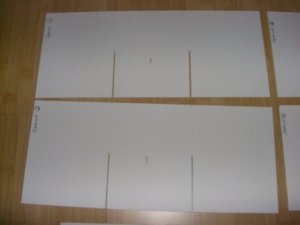

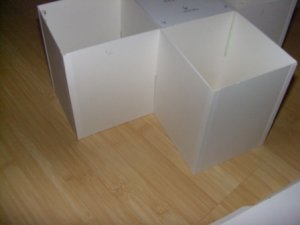

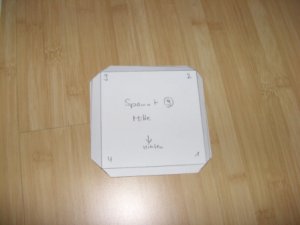

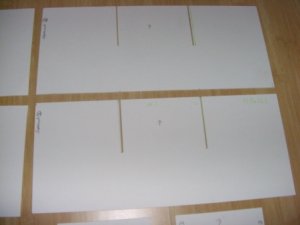

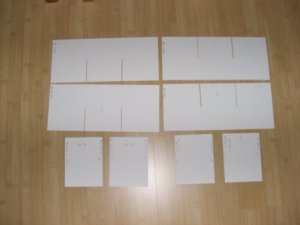

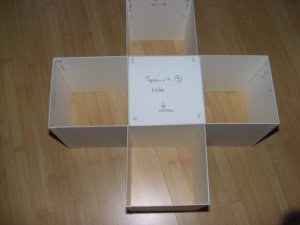

    The Cross will made from Bristol with a weight of 300 gr/m².
    I don´t build the tanks in the descent stage or any other details from inside.

    Attached Files:

  3. Waeschens

    Waeschens Member

    Joined:
    Jun 22, 2007
    Messages:
    48
    Likes Received:
    0

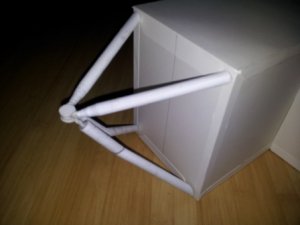

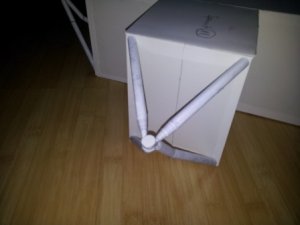

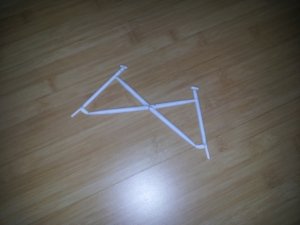

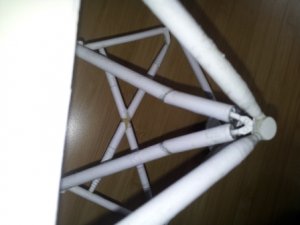

    Outrigger truss

    The Outrigger truss is made from normal paper with a weight of 80 gr/m². The tubes are wound around a core of 3 mm. After the tubes were dried, the core was removed. For connecting the truss with the mainstructure of the descent stage I use parts of 3mm wood sticks as a bolt. The knot was made ​​of Bristol and superglue.

    Attached Files:

  4. Waeschens

    Waeschens Member

    Joined:
    Jun 22, 2007
    Messages:
    48
    Likes Received:
    0

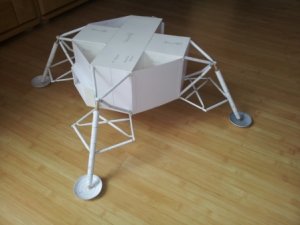

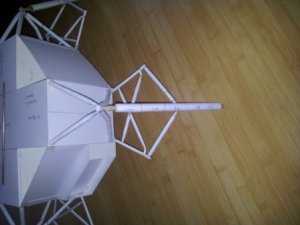

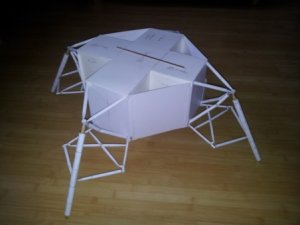

    Because the weight of the hole construction I decide me to use 8 mm wood sticks for the core of the main strut.

    Attached Files:

  5. Waeschens

    Waeschens Member

    Joined:
    Jun 22, 2007
    Messages:
    48
    Likes Received:
    0

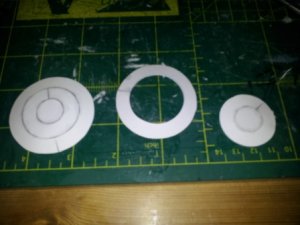

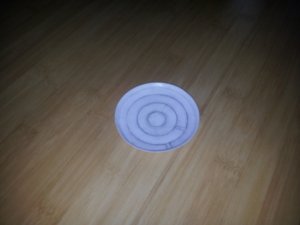

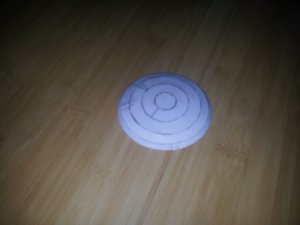

    The pads

    The next step is the construction of the pads. That will be a little bit tricky but not impossible.

    And that´s all for the moment from the LM assembly facility in Germany.

    Michael

    Attached Files:

  6. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,682
    Likes Received:
    3,524
    A great start. The landing pad looks great and the strts are excellent. I look forward to seeing this come together. :)
  7. WeeVikes

    WeeVikes Member

    Joined:
    Sep 6, 2007
    Messages:
    107
    Likes Received:
    0
    Michael,

    This is stunning!

    What scale is the model? Are the landing gear hinged? Are you planning on designing and building an interior? And lastly, will you be somehow making this design available once you finish?

    Thank you. Best of luck in this!


    Mike
  8. Waeschens

    Waeschens Member

    Joined:
    Jun 22, 2007
    Messages:
    48
    Likes Received:
    0
    Hi Mike,
    the model´s scale is 1:12. I planned to build the interior of the ascend stage. No the landing gear isn´t hinged. But maybe I will build a second one in the future with a detailed descend stage interior and movable hinges.

    I have not planned a publication as a kit. Many parts caused by pencil drawings directly on the paper. Some parts in Blender and Corel Draw. I'm not good in creating building instructions, but maybe I'll post the hole model with instructions once. But not before I've finished the model.

    Michael
  9. Waeschens

    Waeschens Member

    Joined:
    Jun 22, 2007
    Messages:
    48
    Likes Received:
    0
    @ Zathros

    I think the landing gear is the complicated part of the descend stage.

    Michael
  10. kbkline

    kbkline Member

    Joined:
    May 4, 2013
    Messages:
    66
    Likes Received:
    0
    Wow I'm a space fanatic and I can't wait to see this complete.
  11. Rogerio Silva

    Rogerio Silva Active Member

    Joined:
    Nov 10, 2012
    Messages:
    1,530
    Likes Received:
    11
    It's really looking good! More pics, please!
  12. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,682
    Likes Received:
    3,524
    You could always refer people to the Build Thread, as the instructions. If you ever wanted me to digitize you drawings by going over them with Rhino3D, let me know. :)
  13. kbkline

    kbkline Member

    Joined:
    May 4, 2013
    Messages:
    66
    Likes Received:
    0
    Yes please do this :mrgreen:
  14. PaperAir

    PaperAir Active Member

    Joined:
    Nov 20, 2008
    Messages:
    1,003
    Likes Received:
    71
    this is going to be one big model
  15. gene1772

    gene1772 New Member

    Joined:
    Nov 20, 2007
    Messages:
    10
    Likes Received:
    0
    This looks fantastic! Great start. I have been waiting for a larger scale lunar module and I don't think anyone has made one with the interior so you will be the first. Excellent.
  16. Vince

    Vince Member

    Joined:
    Jul 27, 2011
    Messages:
    151
    Likes Received:
    1
    What? Paper modelling is not the first priority of your life???:shock:

    Personally, I blame my lack of free time on my dog. The little freeloader expects to be fed EVERY DAY so I have to work to maintain a house and the kind of lifestyle he demands.

    I'd probably be able to do more building if I didn't spend so much time online reading about building!!hamr

    But seriously, it looks great so far. Thanks for sharing with us.
  17. Waeschens

    Waeschens Member

    Joined:
    Jun 22, 2007
    Messages:
    48
    Likes Received:
    0

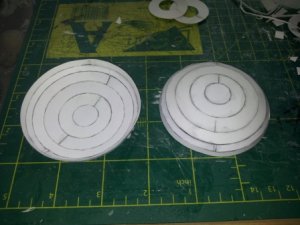

    Pads

    Ok, working on the LM went ahead. I'm going to draw the other parts of the computer. Here are the pictures of the pads. These must be re-drawn on the computer, so that the segments are long enough. They are a bit too short straight, so I had to extend it. I ordered black tissue paper for wrapping the pads. I'm still waiting for the delivery.

    Regards

    Michael

    Attached Files:

  18. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,682
    Likes Received:
    3,524
    It looking really good. I just reread the scale, wow, this is going to be a big model! :)
  19. Waeschens

    Waeschens Member

    Joined:
    Jun 22, 2007
    Messages:
    48
    Likes Received:
    0

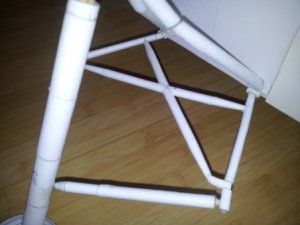

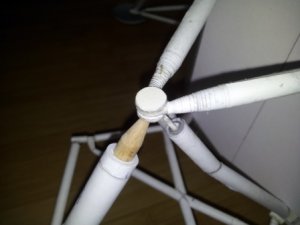

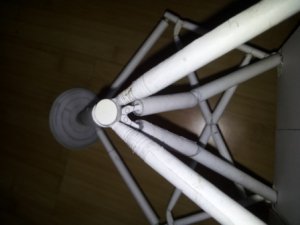

    Some more pictures of the Outrigger Strut. I had used a pencil sharpener for the upper end. The other end was built with a wooden ball. Fur the main strut I had used a wooden stick (diameter 8mm). The main strut was covered with tubes made from paper with 80g/m². The inner diameter is 8mm and the outer diameter is 14mm. The main strut case was manufactured in segments, that is easier to handle.

    Regards

    Michael

    Attached Files:

  20. Waeschens

    Waeschens Member

    Joined:
    Jun 22, 2007
    Messages:
    48
    Likes Received:
    0
    Dear Readers, I am pleased that you enjoy it all. This is an incentive to make more.

    Michael
