    Here is the assembly of the Lightjet with cockpit.

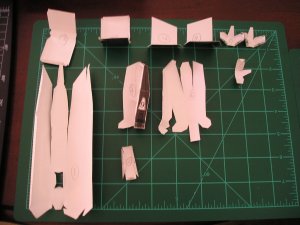

    Side pieces #4 with reinforcement

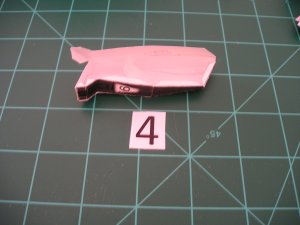

    Assembled side piece #4

    Side piece #6

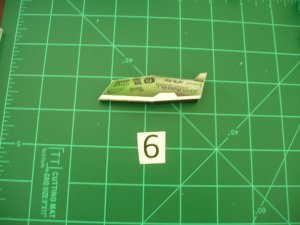

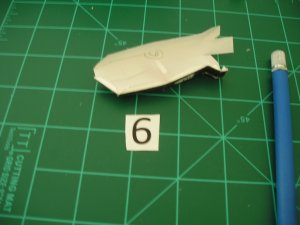

    Side piece #6 - assembled





    Piece #3 assembled

    Sky Seeker
    :tank:
    zathros likes this.
  2. Sky Seeker

    Sky Seeker Well Established Member

    Joined:
    Jun 2, 2015
    Messages:
    881
    Likes Received:
    647
    Lightjet Assembly

    Bottom wings

    Bottom landing gear assembly

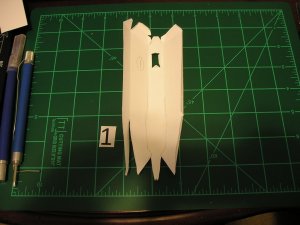

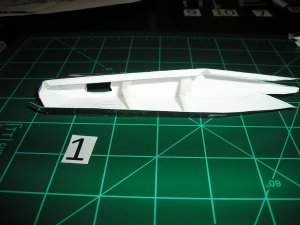

    Fuselage - Note the hole cut for the cockpit.




    Back of fuselage


    That's it for now.

    Sky Seeker
    :tank:

    Attached Files:

    Last edited: Nov 13, 2016
    zathros likes this.
  3. Sky Seeker

    Sky Seeker Well Established Member

    Joined:
    Jun 2, 2015
    Messages:
    881
    Likes Received:
    647
    Lightjet Assembly

    Note the internal reinforcement for the fuselage.

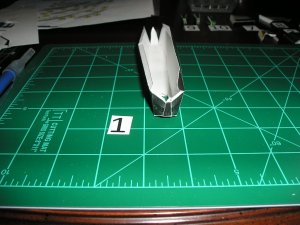

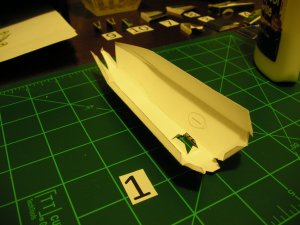

    Forward nose section assembled prior to final closing or "buttoning up".

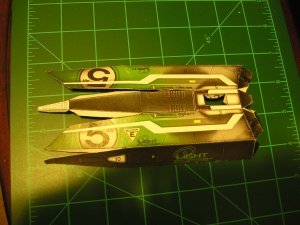

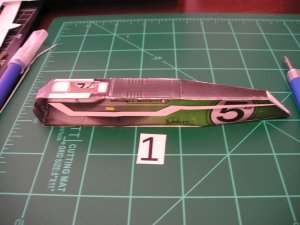

    Bottom view fuselage

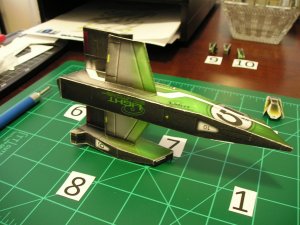

    Side view fuselage.

    Top & side view

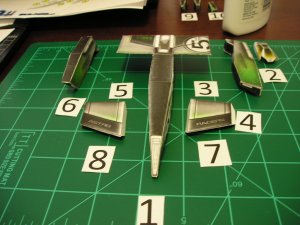

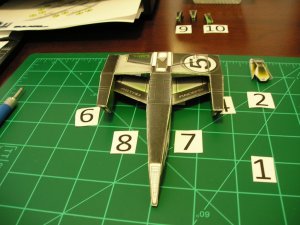

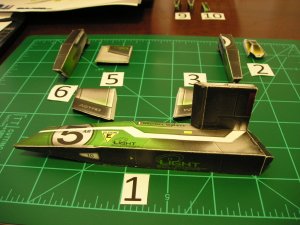

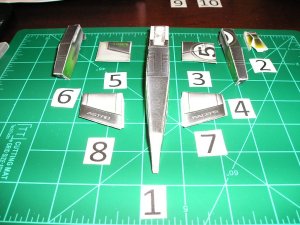

    All pieces ready for joining with fuselage.

    Part #3 joined with fuselage

    Part #5 joined to fuselage - top view.

    Part #4 joined to fuselage - bottom view.

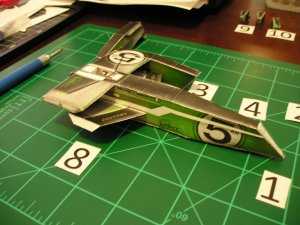

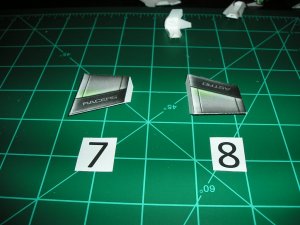

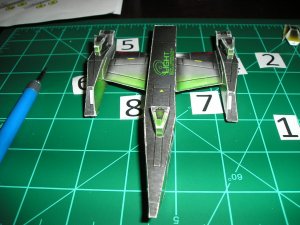

    Part #7 - lower wing - joined to fuselage & side pod.

    Sky Seeker
    :tank:
    zathros likes this.
  4. Sky Seeker

    Sky Seeker Well Established Member

    Joined:
    Jun 2, 2015
    Messages:
    881
    Likes Received:
    647
    Light jet - More pics

    Part #8 lower wing joined to other side.

    Bottom view

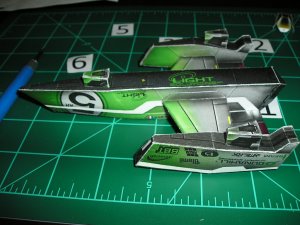

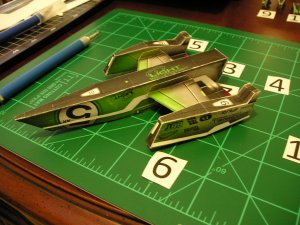

    Part #6 side pod joined to wings and fuselage.



    Top view

    Bottom view landing gear joined to fuselage and pods.



    Cockpit assembly. Canopy positioned on top clear plastic piece and traced.

    That's it for now.

    Sky Seeker
    :tank:
    Last edited: Nov 14, 2016
    zathros likes this.
  5. Sky Seeker

    Sky Seeker Well Established Member

    Joined:
    Jun 2, 2015
    Messages:
    881
    Likes Received:
    647
    LightJet - More pics

    Traced clear piece cut.

    Canopy windows cut.

    Canopy glued together.

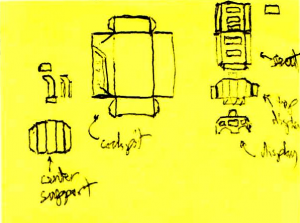

    Cockpit - initial conceptual internal design

    Marking the edges with a marker to remove the white on the edges will be done at a later date.

    Have to make sure to get the scale right before building. Also, getting the right sized pilot is a challenge. Although I do have ideas. One of those mental "humps" to get over.

    This is it for now.

    Sky Seeker
    :tank:
