Lift Bridge

Discussion in 'FAQs' started by Nomad, Apr 2, 2007.

  1. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0

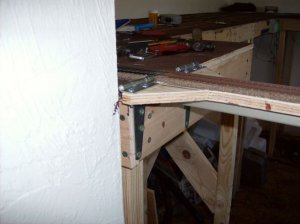

    HI everone:wave: . This is my temporary lift bridge. It worked fine until I put the track on the bridge. Now the tracks hit and I can not lift the bridge. It looks like I would have to put a 1/4 to 1/2" gap in the track to get it to lift. Any ideas on what I can do to get the track to clear?

    Loren

    Attached Files:

  2. LoudMusic

    LoudMusic Member

    Joined:
    Jul 21, 2006
    Messages:
    655
    Likes Received:
    0
  3. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0
    LoudMusic, Thanks ! Just what I needed. I found that site once and could not find it again.
    Now I have it bookmarked.

    Loren
  4. LoudMusic

    LoudMusic Member

    Joined:
    Jul 21, 2006
    Messages:
    655
    Likes Received:
    0
    Glad I could help! Show us some pictures when you've got it rebuilt :)
  5. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,711
    Likes Received:
    0
    You don't need to do a lot of "rebuilding." Basically the hinge just has to be above the top of the rails. I think raising the screws in the long side of the hinge and putting a shim made of 3/8-1/2 inch plywood under each of the smaller hinge plates will fix it.
  6. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0

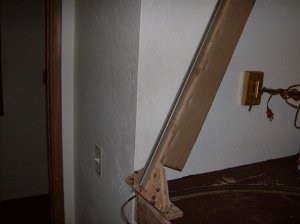

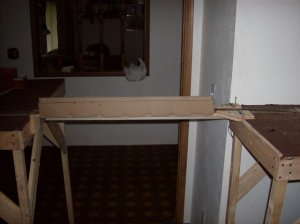

    Here are some pictures of my "temporary bridge". It works great now.

    Loren

    Attached Files:

  7. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0

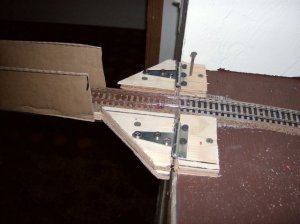

    This is the change I made that LoudMusic found(sorry Russ,I was done before I saw your reply).
    The screw sticking up is a stop to keep the bridge from going all the way over.

    Loren

    Attached Files:

  8. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0

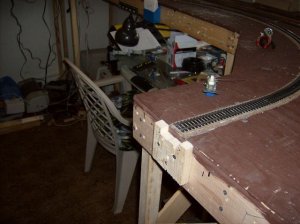

    I cut this notched piece to keep the bridge aligned when it is down.
    What happened to the picture?

    Loren
  9. LoudMusic

    LoudMusic Member

    Joined:
    Jul 21, 2006
    Messages:
    655
    Likes Received:
    0
    Looks good. How's the alignment on the receiving end?

    EDIT: Ha ha, posted at the same time. :)
  10. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0
    Lets try this again.

    Attached Files:

  11. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0
    It is all made out of stuff I had laying around. The channell underneath is a old curtain rod. I used it because the plywood was warped.

    Loren

    Attached Files:

  12. xpt rail

    xpt rail New Member

    Joined:
    Mar 16, 2007
    Messages:
    4
    Likes Received:
    0
    Probably a stupid question,but how do you scenically hide the hinge so you can still get to the screws
  13. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,141
    Likes Received:
    0
    xpt: I would say that you either don't worry about the screws or don't scenic. :D


    I would probably scenic with some foam sheets and carve a hole big enough for the hinges. The foam sheets can be removable. For times you want the layout to look really respectable, you can add a bit of scenery along the sides of the liftout -- this can be supported on a bit of frame or the edges of the main bench.
  14. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0
    Yea, what he said. I wish I could put the screws in from underneath, but on the edge of the table like it is, I really can not see a way to to do that without making it more obvious.

    Loren
  15. IandOFan71

    IandOFan71 Member

    Joined:
    Mar 20, 2007
    Messages:
    74
    Likes Received:
    0
    Nice lift bridge. It looks almost exactly like mine. As far as scenery goes, I plan on covering up the hinges with some shrubbery that way when the bridges are lifted the shrubbery can be smooshed a bit and bounce back when the bridge is lowered. Just a suggestion you may want to think about.

    Tyler
  16. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0
    I thought about what Russ wrote, I am going to try using a strap hinge raised up on the table edge and screwed to the bridge from underneath. I'll let you know hoe it turns out.

    Loren
  17. BigJim

    BigJim Member

    Joined:
    Nov 19, 2006
    Messages:
    157
    Likes Received:
    0
    I used a "pin" pivot just below the table level but back a few inches from the opening. This allows the track to overlap the connection and meet on a single surface, Since the angle of the track motion on the left side is only about 7 degrees from vertical you can cut it at a very slight angle if you want but a few thousands gap is all you need for clearance. I bend the track extensions down just slightly. When the lift closes and the tracks contack the cork they bend up flat for a perfect fit. Final version will most likely have some material other than cork where they join and may have some small tie alignment bumps on either side of the track extension landings.

    I plan on re-working it later for looks but will stay with this design because even without alignment pins I have not had a songle problem and nothing extends above the surface.

    I think I will add some sort of micro switch & relay safety cutout to disconnect the power for a few inches before the opening on both sides to stop trains when it is up. With this design they can fall off the table from both sides.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
  18. MadHatter

    MadHatter Charging at full tilt.

    Joined:
    Jan 27, 2007
    Messages:
    1,077
    Likes Received:
    0
    Perhaps scratchbuild a removable highway bridge over the hinges and then make the "supports" able to cover both hinges that are visable. I would use the foam idea on the part of the hinge with the bridge section attached to it.

    Thats my 2 cents.
  19. Gary S.

    Gary S. Senior Member

    Joined:
    Oct 13, 2005
    Messages:
    1,694
    Likes Received:
    0
    BigJim's solution looks interesting. Thanks for posting the pics.

    Do you have any concerns about the messing up the track where it extends past the bridge?

    You mentioned that you might use something other than cork on the stationary side where the track extensions touch. What if you just took off the cork and glued some roadbed made out of wood to the track extensions and let this rest on the stationary part?
  20. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,634
    Likes Received:
    0
    Big Jim, that is a great idea. I think if you put boards on the side extending out past the opening, that should hold the alingment and still be below the table. Using switches to cut the power is another great idea. I really like that idea better than what I have know, but I would have to rebuild my table in that area, and I am far enough along that would be a major overhaul:cry: .

    Loren
