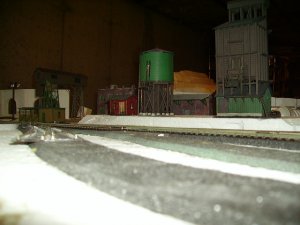

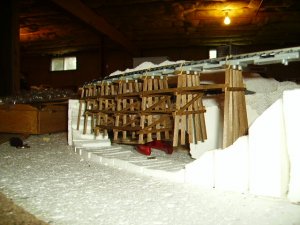

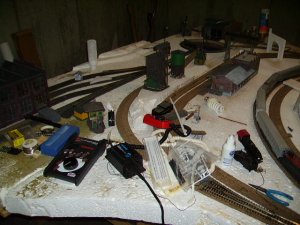

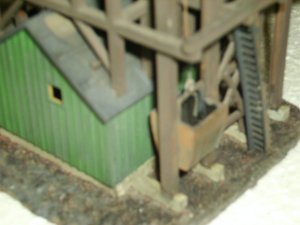

    :wave:Hi all today is my first day on this forum... I am putting up my layout (Work in Progress) as promised... I am trying to find out what structures I can fit and I have buildings all over the place so ignore the huge mess it is... I found a plase were I can get recycled foam for 3 bucks a sheet...Sheets are 4'X8'X3".. I had no real plans on paper and building this as I go... I made my own foam inclines and the grade is huge I go up 8 inches in 8 feet hope I can get trains up it..

    Again... Suggestions from the pros are welcome and I would like to know if the incline of 8 inches in 8feet will work with small logging load

    Thanks

    Attached Files:

  2. TrainJunkee

    TrainJunkee Member

    Joined:
    Jun 3, 2007
    Messages:
    38
    Likes Received:
    0

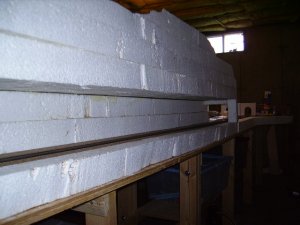

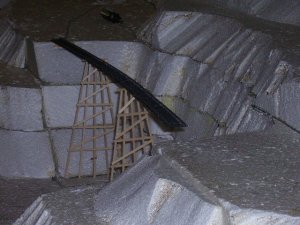

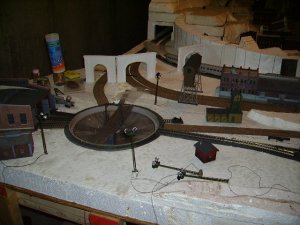

    3 more pics so you can get a view of the entire layou

    3 more pics

    Attached Files:

  3. Triplex

    Triplex Active Member

    Joined:
    Aug 24, 2005
    Messages:
    1,849
    Likes Received:
    0
    That's 8.3%. I don't think anything other than a geared loco will pull anything up that.
  4. TrainJunkee

    TrainJunkee Member

    Joined:
    Jun 3, 2007
    Messages:
    38
    Likes Received:
    0
    Like the Cog railway in the white mountains NH... Do they make those in HO?...LOL I really want a train to go across the trestle bridge I am making for the gorge and I dont have enough room to make the grade smaller... What can I do
  5. TrainJunkee

    TrainJunkee Member

    Joined:
    Jun 3, 2007
    Messages:
    38
    Likes Received:
    0
    Or do you mean a shay... Will that make it up with 2 or 3 logging cars?
  6. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    Do you have a trackplan we can look at? Sometimes you can raise or lower another area to lessen the grade.

    Loren
  7. TrainJunkee

    TrainJunkee Member

    Joined:
    Jun 3, 2007
    Messages:
    38
    Likes Received:
    0

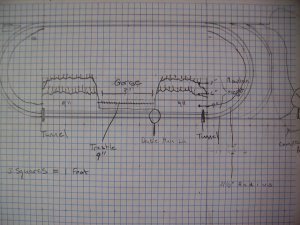

    I made layout without a plan...1rst mistake... I drew one up quickly.. Scale is 3 blocks = 1 foot

    Attached Files:

  8. wickman

    wickman Member

    Joined:
    Dec 8, 2005
    Messages:
    572
    Likes Received:
    0
    That looks like one adventurous layout , I like it .:thumb:
  9. bigsteel

    bigsteel Call me Mr.Tinkertrain

    Joined:
    Dec 12, 2006
    Messages:
    1,380
    Likes Received:
    0
    8.3% is one hell of a grade.i didnt even think a shay could climb that by itself.and if you didnt want to modify your trestle,just make the gorge go down into the baes layer of foam and make it just a deeper gorge.--josh
  10. bigsteel

    bigsteel Call me Mr.Tinkertrain

    Joined:
    Dec 12, 2006
    Messages:
    1,380
    Likes Received:
    0
    OK,i got some plans.here is what your old trestle/gorge looks like to me.your gorge is on top of the base foam,why not "dig" down into the base to lower the overallheight but stillbe dramatic and keep your trestle
    old:
    [​IMG]


    new:
    [​IMG]
    yes i realize the name is wrong but this was quick,so dont burn me :D i hope i could help.--josh
  11. TrainJunkee

    TrainJunkee Member

    Joined:
    Jun 3, 2007
    Messages:
    38
    Likes Received:
    0

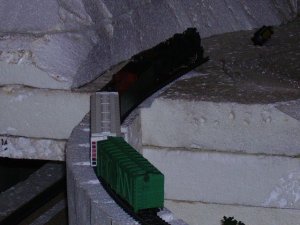

    I got my M1B up it... I wasn't easy...more like the little train that could.It was pulling 2 cars... Would a Shay have more pullining power than my 2-8-4.. I would think the shay would since all the wheels are geared drivers (even the tender).... the 8.3% incline is also a 24 radius

    Attached Files:

  12. buffalo bob 52

    buffalo bob 52 New Member

    Joined:
    May 1, 2006
    Messages:
    7
    Likes Received:
    0
    Hi,

    I have been planning my layout for 2 years, LOL I keep getting side tracked. I may just plop a circle on a hollow door so I can run the trains I do have.

    Did you think of a switch back, great way to get height with little effort?

    Bob
  13. TrainJunkee

    TrainJunkee Member

    Joined:
    Jun 3, 2007
    Messages:
    38
    Likes Received:
    0
    That is a good idea... I may go with that and dig into the sub- base foam right to the front of the layout...
  14. TrainJunkee

    TrainJunkee Member

    Joined:
    Jun 3, 2007
    Messages:
    38
    Likes Received:
    0
    Hi Buffalo Bob, I am unfimiliar with the term switch back.. What is a "switch back'?

    -John
  15. buffalo bob 52

    buffalo bob 52 New Member

    Joined:
    May 1, 2006
    Messages:
    7
    Likes Received:
    0
    Hi John,
    I am not an expert - a lot of logging and mining operation used switchbacks, it's a method of going back and forward to gain height without over kill with the % of grade. Here is a link I found. The Train Show - Watch Us Online
    Bob
  16. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    Where you wrote "gorge" is that the problem? And is that inside and outside loops of track you have? And are they connected? Sorry for all the questions but I can not tell much from your drawing.

    Loren
  17. TrainJunkee

    TrainJunkee Member

    Joined:
    Jun 3, 2007
    Messages:
    38
    Likes Received:
    0

    Yes the inclines leading to the gorge go up 8 inches in 8 feet an it is just the inside loop... Ths loop will be connected to the inside loop of the mainline with a cross over in the front of the layout so it will be a twice around and I conected thethe double mainline track with a double crossover that I made with 4 switches and a cross-over..So there is a double main line which goes oround and under the mountan and an inside circle (Branch line) 3 loops in all I'm too cheap to buy a one piece double crossover..:oops:
  18. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    OK, if you can't drop the grade down, can you raise the other loops to lessen the grade? That would put the center of your layout in a valley.

    Loren
  19. TrainJunkee

    TrainJunkee Member

    Joined:
    Jun 3, 2007
    Messages:
    38
    Likes Received:
    0
    wall1I could but I already laid down the road bed for the double main line... about 60 feet of roadbed
  20. Nomad

    Nomad Active Member

    Joined:
    Sep 26, 2006
    Messages:
    1,631
    Likes Received:
    0
    Sounds like Bigsteel's idea is your best bet then. I have never ran a geared loco, so I don't know if they could pull that steep a grade.

    Loren
