Latest Projects: A Boxcar & Two Gondolas

Discussion in 'Photos & Videos' started by TomPM, May 20, 2003.

  1. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    These are my latest projects that I finished. They are all bluebox kits that I assembled and weathered.

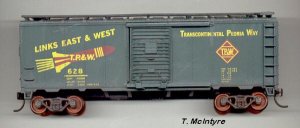

    Here is the TP&W boxcar

    List of Materials
    Bev-Bel/Athearn 40’ Boxcar (247-3)
    Kadee #5 couplers

    Weathering:
    Drybrushing: Folk Art Charcoal Gray (613)
    Wash: Folk Art Charcoal Gray (613) 2 parts; Folk Art Licorice (938) 1 part; thinned 5:1 with blue windshield washer fluid
    Sealer: Testors Dullcoat

    Trucks:
    Paint: Folk Art Charcoal Gray (613)
    Drybrush: Americana Burnt Sienna
    Sealer: Testors Dullcoat

    Wheels:
    Paint: Americana Burnt Sienna mixed with Folk Art Bright Peach (682) 1:2
    Sealer: Plaid Clear Acrylic Sealer-Matte (CS200306)

    Attached Files:

  2. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Now here is a Lehigh Valley gondola

    List of Materials
    Bev-Bel/Athearn 50’ Open Steel Gondola (2367)
    Kadee #5 couplers

    Weathering:
    Drybrushing: Folk Art Charcoal Gray (613); Americana Burnt Sienna
    Wash: Folk Art Charcoal Gray (613) 2 parts; Folk Art Licorice (938) 1 part; thinned 5:1 with blue windshield washer fluid
    Sealer: Testors Dullcoat

    Trucks:
    Paint: Folk Art Charcoal Gray (613)
    Drybrush: Americana Burnt Sienna
    Sealer: Testors Dullcoat

    Wheels:
    Paint: Americana Burnt Sienna mixed with Folk Art Bright Peach (682) 1:2
    Sealer: Plaid Clear Acrylic Sealer-Matte (CS200306)

    Attached Files:

  3. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    And lastly here is a L&N gondola

    List of Materials
    Athearn 50’ Gondola (01738)
    Kadee #5 couplers

    Weathering:
    Drybrushing: Folk Art Charcoal Gray (613); Americana Burnt Sienna
    Wash: Folk Art Charcoal Gray (613) 2 parts; Folk Art Licorice (938) 1 part; thinned 5:1 with blue windshield washer fluid
    Sealer: Testors Dullcoat

    Trucks:
    Paint: Folk Art Charcoal Gray (613)
    Drybrush: Americana Burnt Sienna
    Sealer: Testors Dullcoat

    Wheels:
    Paint: Americana Burnt Sienna mixed with Folk Art Bright Peach (682) 1:2
    Sealer: Plaid Clear Acrylic Sealer-Matte (CS200306)

    Attached Files:

  4. davidstrains

    davidstrains Active Member

    Joined:
    Aug 29, 2002
    Messages:
    1,061
    Likes Received:
    0
    Nice looking work Tom. They should look good in a string on your layout.
  5. K.V.Div

    K.V.Div Member

    Joined:
    May 11, 2001
    Messages:
    641
    Likes Received:
    0
    Nice weathering job Tom, Those cars definately look like they have been working for their keep on your road. :D
    Cheers!

    Terry
  6. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,688
    Likes Received:
    0
    Excellent work Tom :cool:

    Shamus
    [​IMG]

    [​IMG]
  7. brakie

    brakie Active Member

    Joined:
    Nov 8, 2001
    Messages:
    2,949
    Likes Received:
    0
    Tom,Great looking cars...Nice weathering.
  8. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Three more successes!

    You know, I'd never even imagined that my Athearn stuff could look that good. Very, very nice work.:)
  9. Matt Probst

    Matt Probst Member

    Joined:
    Mar 15, 2002
    Messages:
    379
    Likes Received:
    0
    :cool: Nice job Tom. I especially like the LV gondola. It's neat how weathering will really bring out the details in the cars. (rivets & bolts etc. ).

    Matt--Hershey, Pa.
  10. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Tom,

    I especially appreciate the list of materials you used to create these excellent works of art.:)

    Thanks,

    Don
  11. farnham

    farnham New Member

    Joined:
    Mar 5, 2006
    Messages:
    19
    Likes Received:
    0
    Thanks, Tom for those weathered cars. I have an Athearn Lehigh Valley 50 ft. boxcar kit. One question, don't the workers wipe off some of the numbers so they can be read-- and if so, which numbers? Also, is that rectangle on your Lehigh Valley car (and mine too) a bar code?

    farnham
  12. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Thanks everyone!

    From what I have been told it is some kind of bar code. Apparently there was a time that readers were installed in some yards that could read the codes as the cars went by to keep track of them. It did not work too well because the cars got dirty and the bar code could not be read by the readers.
  13. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,718
    Likes Received:
    0
    Tom...

    Great to see this How-To back in circulation - an oldie, but a goodie ;) :D

    Andrew
  14. doctorwayne

    doctorwayne Active Member

    Joined:
    Sep 7, 2005
    Messages:
    3,844
    Likes Received:
    0
    Nice work, Tom, particularily the LV gondola. The ACI (Automated Car Identification) labels were part of a system called Cartrak, which was supposed to keep track of equipment, including locomotives. As you noted, it failed because the labels weren't kept clean enough for the scanners to read them.
    As far as wiping off dirt from reporting marks, it would most likely be to either identify the car for making out a waybill, or for determining if a car was suitable (without restrictions as noted in the equipment register) for the intended lading. The capacity data (Load Limit) might be cleaned to ensure that a car is not overloaded, or the dimensional data otherwise checked to determine the suitability of a car for the particular lading. Cars were required to be reweighed every so often, and when necessary, the appropriate data would be re-stencilled on the car, often over a patch of fresh paint.

    I did this car based on a photo, although there was no information as to whether it was the result of a good cleaning job or a repaint. I'd guess the latter.

    [​IMG]

    Wayne
  15. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Nice work Tom - just goes to show you how much good weathering adds to a model. :thumb:

    Val
  16. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    I'm not familiar with the TP&W but I like that rocket logo! I'm especially fond of your subtle dusting of the Dixie gon. Nice work as always Tom! Hmmmm, how long before they're seen rolling by that old water tower? :thumb:
    Ralph
  17. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Ralph

    If I remember correctly TP&W stands for the Toledo Peoria & Western. (If I am wrong someone please help:oops: ) The line is located in the upper Midwest. I don’t know a whole lot about it. I bought the boxcar when I was in a buying frenzy and not paying attention to what I was getting. About two years ago I went through my rolling stock and narrowed my focus to the lines that I am currently concentrating on. As a result I sold the TP&W boxcar pictured.

    I don’t know if you noticed the post was started almost 3 years ago!:D The LV and L&N gondolas have made several appearances before the Water Tower. I am sure they will make some more soon.
  18. farnham

    farnham New Member

    Joined:
    Mar 5, 2006
    Messages:
    19
    Likes Received:
    0
    The real story

    Thanks Doc, and everybody! I'm really glad I joined this site-- seems I'm getting more and wider information and encouragement than I could get from being a club member for a decade!

    I'm thinking maybe today if they wanted they could use something like the EZ-Pass that gets cars through tolls-- Where is the Niagara Peninsula, BTW?

    The patch on yr car-- breathtaking weathering-- it's unbelievable that it's not real!-- looks to me like a wipe rather than a repaint (you mean a repaint and restencil?), since a corner of the area is not wiped and yet the stencil shows through-- but what do I know?

    Reporting Marks means everything written on the car? So you are saying that the wiping was for a particular purpose and not a general part of cleaning and maintainance. That is great information. And how and how often are freight cars cleaned if at all? Also, when they repainted something and restenciled, would it be the same color paint or, at times, any color?

    farnham
  19. Art67

    Art67 Member

    Joined:
    Apr 18, 2005
    Messages:
    197
    Likes Received:
    0
    Great job, Tom. I really need to check out those paints. The weathering looks fantastic.
  20. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Well color me observant! sign1
