Ladies & Gentlemen.....

Discussion in 'Getting Started' started by kf4jqd, Nov 30, 2006.

  1. kf4jqd

    kf4jqd Active Member

    Joined:
    Jan 14, 2001
    Messages:
    1,213
    Likes Received:
    0
    announce1 Ladies and Gentlemen,

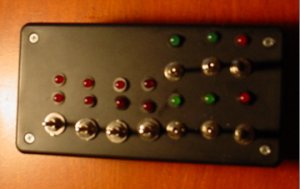

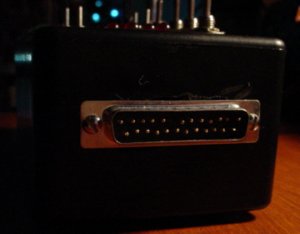

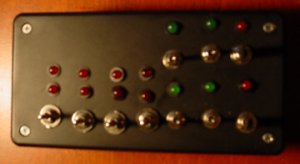

    The first part of my N scale coffee table is now done!:thumb: The digital controller for the switch track and electrical block systems is finished!:thumb: Now all I have to do is wire in the female 25PIN connector to the layout! Here's some pictures of the controller!announce1

    Andy:wave:

    Attached Files:

  2. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    That is a neat job Andy.
  3. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Great Job on it Andy.:thumb: :thumb: :thumb:
  4. Biased turkey

    Biased turkey Active Member

    Joined:
    Apr 10, 2006
    Messages:
    1,019
    Likes Received:
    0
    Nice clean electrical work kf4jqd ( I'm an electronic technician )
    Could you post a plan of your coffe table layout ?
  5. kf4jqd

    kf4jqd Active Member

    Joined:
    Jan 14, 2001
    Messages:
    1,213
    Likes Received:
    0
    It's in Atlas's N scale book. I am slowly working on a Power Point presentation on how to build a copy. It's going slow, but will be done.

    Andy
  6. Biased turkey

    Biased turkey Active Member

    Joined:
    Apr 10, 2006
    Messages:
    1,019
    Likes Received:
    0
    I have the Atlas level 1 book, from N-1 to N-9, is it one of those ?
