Kosmosdale Depot

Discussion in 'Scratchin' & Bashin'' started by philip, Feb 15, 2003.

  1. philip

    philip Guest

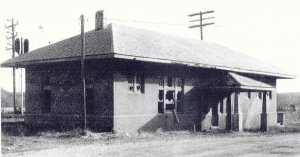

    This is the beginning of the old Kosmosdale depot. The old structure is located in Louisville Ky. The building is starting to fall down. However it is on the endangered species list in Jefferson county archive. So far no funding for restoration. The structure serviced the Illinois Central for many years. I will post the plans if anyone is interested in modeling this old structure

    philip :(

    Attached Files:

    • kos1.jpg
      File size:
      61.5 KB
      Views:
      198
  2. philip

    philip Guest

    walls, windows, and doors

    WW&D... HO scale

    Attached Files:

  3. Catt

    Catt Guest

    I find this to be a very interesting looking building. I for one would like to see the plans.
  4. philip

    philip Guest

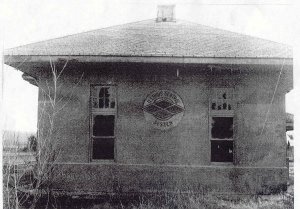

    north side

    Northside with IC logo

    philip

    Attached Files:

  5. philip

    philip Guest

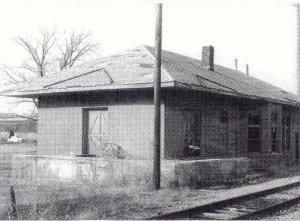

    track side

    Notice the water diverters on the roof over the freight doors

    Attached Files:

    • kos3.jpg
      File size:
      96.9 KB
      Views:
      153
  6. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Thanks for providing the photos and drawings philip
    Many of us are always on the lookout for modelling ideas and depots like this one are of interest
  7. philip

    philip Guest

    recon with tape and tablet in hand

    Everybody: Glad your interested. Its a shame without funding this structure will be on the ground soon . The roof has been leaking for 10 years and people have vandalized the old depot! The pictures posted are 15 to 20 years old. Its a dang shame. Paducah and Louisville run the old tracks that spur off to Louisville Gas and Electric Company. Kosmosdale was a small town in Southwest Jefferson County. Kosmos Company made concrete and brick mortar here since around 1900. The depot is next door to the cement plant....no one cares, looks like the concrete company and LG & E would fund the fix up. I'm sure the CSX company would donate the property. CSX bought up P & L at least part of it.

    philip

    front

    Attached Files:

    • kos4.jpg
      File size:
      45.1 KB
      Views:
      137
  8. philip

    philip Guest

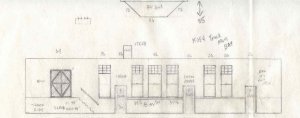

    track side 66 ft not including overhang

    Its amazing. Normally the roofs over bay windows usually have a gable or hipoff both sides!

    Attached Files:

    • kos5.jpg
      File size:
      34.5 KB
      Views:
      134
  9. philip

    philip Guest

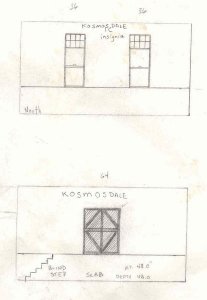

    two end panels

    width 26 ft.

    Attached Files:

    • kos6.jpg
      File size:
      30.2 KB
      Views:
      133
  10. philip

    philip Guest

    portico details

    This is it. Now I'm going to try to build this bad boy!:)

    philip

    Attached Files:

    • kos7.jpg
      File size:
      31.1 KB
      Views:
      134
  11. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Phillip,
    This is a great thread, especially since it's on such familiar territory to me...
    Spent a lot of time hiking in the Otter Creek area, & canoeing on the Salt R. & the Ohio...I've walked the tracks a few times too, not the IC (P&L) line, but down on the old L&N's "Texas" Sub. (now CSX)
    All these years I never knew thew there was anything in Kosmosdale, except that cement plant, & a couple of stripper bars!
    That's fantastic that you're preserving something like that through your modeling!
    Do you live in the area?
    I now live in the St. Matthews area...
  12. philip

    philip Guest

    old stompin grounds

    Thanks Charlie!!! That area of Ky is a great area! I have always wanted to hike that area from Kosmos up to Muldraugh and check the old steel trestles. I'm from Irvington. Really like your pictures from the Ky R/W museum!:)

    philip :) iced in forever:eek:
  13. philip

    philip Guest

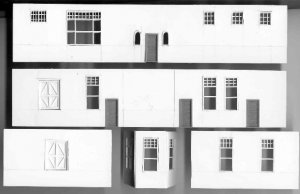

    walls up/ windows trimmed/portico started

    :)

    Attached Files:

  14. philip

    philip Guest

    track side

    :)

    Attached Files:

  15. philip

    philip Guest

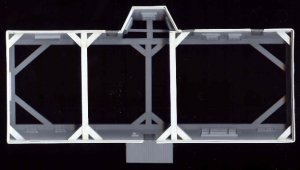

    non- finished interior

    Back to work!:)

    Attached Files:

  16. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    You are making good progress philip.
    What materials are you using to make this structure?
  17. philip

    philip Guest

    materials

    Matt, Everthing is made from evergreen plastic except the entry 5 panel Grandt Line doors. I'm no expert at this scratchbuilding stuff. I was going to use Grandt Line windows and then add the transon on top ..when I did a few and tested for fit the windows were to tall into the soffit/bead board overhang. :( The windows have been a thorn in my side but finally its coming together. Another big problem was the bay window...you see the overhang was 5ft ..had to cut the bay down to 3 & 1/2. Just wasn't enough clearance on the portico side. Different reveals/margins on the overhang just looks horrible..anyhow its on the bench ..still trying to get the rise, run, and rake together. That white plastic makes it look like a White Castle Hamburger stand or the old art deco Gulf Station LOL.
    philip:)
