    I decided to celebrate the season by watching “Batman Returns” (Yes, it’s a Christmas movie!) and taking on AirDave’s cool Batwing. This is a fun little model. I was going to build it stock so I’d get it done before the movie ended, but it looked like a good one to detail, so I stretched the build to a couple of days. As usual, all parts are scored before folding and cutting, then edge colored with marker before gluing.

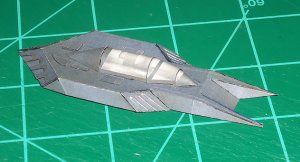

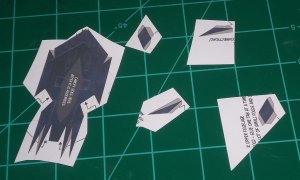

    First up was the cockpit area. I cut off all the tabs and edge glued all the parts, except for the canopy. For it I replaced the supplied joiners with colored 20 lb. printer paper colored with black marker and glued the seams together from behind. I like using printer paper for joints when I can, especially for small parts, because it curls and folds so much easier. Then, I printed out a second set up parts and cut out the areas for the inlets/outlets. I glued the cut out sections over the existing ones to give it some depth. I then added some raised details. I wanted to raise the canopy frame but that was going to take more time than I wanted to spend.

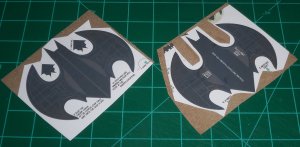

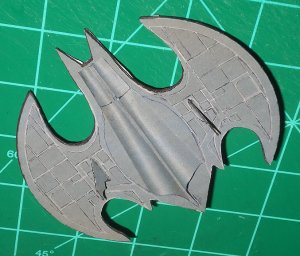

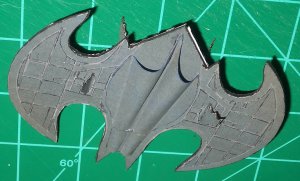

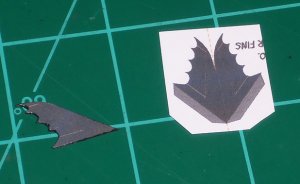

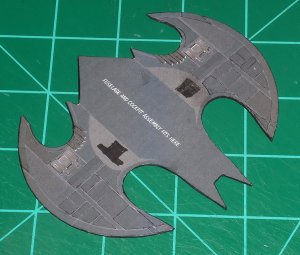

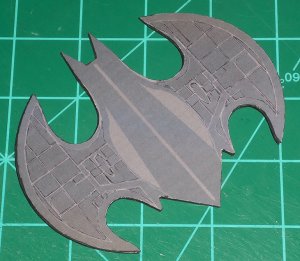

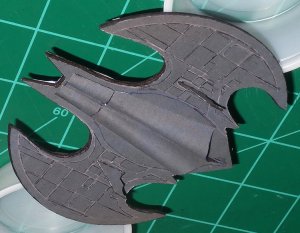

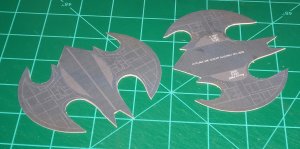

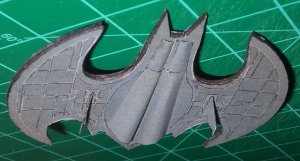

    Next, I scored, folded and glued all the fins. I do this before I cut them to get a more even edge. The upper and lower bat-shaped sections of the fuselage were glued to 1mm chipboard for strength and to keep flat. I trimmed and glued them together, then used some needle files to even out the edges. Finally, I raised almost all the details on both sides.

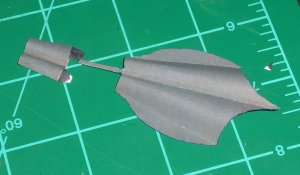

    The lower intakes are tricky and you have to take your time. I made new joiners for the front piece just like I did for the canopy. I used pencil to color the back side of the piece because I was afraid too much marker would soak in and warp it. Black colored pencil or colored paper would have looked better.

    Attached Files:

    • 1.JPG
      File size:
      422.3 KB
      Views:
      15
    • 2.JPG
      File size:
      245.8 KB
      Views:
      16
    • 3.JPG
      File size:
      209.3 KB
      Views:
      17
    • 4.JPG
      File size:
      614.7 KB
      Views:
      16
    • 5.JPG
      File size:
      511.6 KB
      Views:
      15
    • 6.JPG
      File size:
      440 KB
      Views:
      16
    • 7.JPG
      File size:
      496.1 KB
      Views:
      16
    • 8.JPG
      File size:
      336.8 KB
      Views:
      15
    • 9.JPG
      File size:
      415 KB
      Views:
      15
    • 10.JPG
      File size:
      410.1 KB
      Views:
      14
  2. bgt01

    bgt01 Exemplary Confidant

    Joined:
    Jan 26, 2012
    Messages:
    586
    Likes Received:
    806

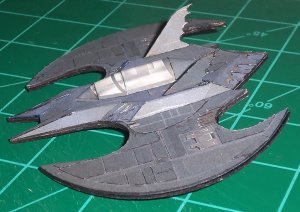

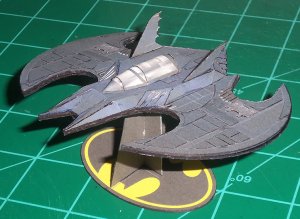

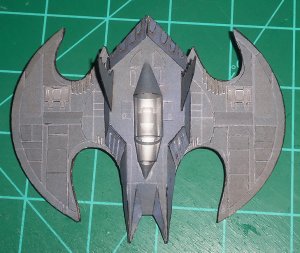

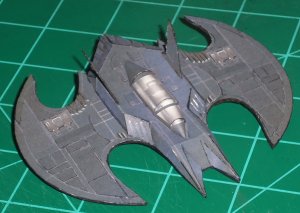

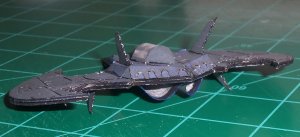

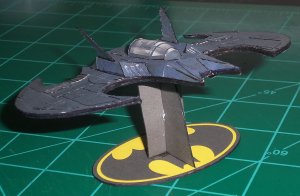

    Lastly, I glued all the separate parts into place and the Batwing was ready to take to the skies! Big thanks to AirDave for making a great model. As long as it avoids comically long-barreled pistols everything should be fine.

    Attached Files:

    • 11.JPG
      File size:
      379.3 KB
      Views:
      20
    • 12.JPG
      File size:
      382.9 KB
      Views:
      19
    • 13.JPG
      File size:
      285.1 KB
      Views:
      19
    • 14.JPG
      File size:
      468.8 KB
      Views:
      23
    • 15.JPG
      File size:
      366.7 KB
      Views:
      20
    • 16.JPG
      File size:
      405.4 KB
      Views:
      20
    • 17.JPG
      File size:
      469.2 KB
      Views:
      22
    • 18.JPG
      File size:
      388.2 KB
      Views:
      19
    • 19.JPG
      File size:
      412.2 KB
      Views:
      21
    • batwing in flight.jpg
      batwing in flight.jpg
      File size:
      226.9 KB
      Views:
      21
  3. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    6,064
    Likes Received:
    3,700
    Great job! :)
    Sanginus likes this.
  4. vulcan8630

    vulcan8630 Member

    Joined:
    Jul 28, 2009
    Messages:
    134
    Likes Received:
    5
    Wonderful build, thank you!!!!
    Sanginus likes this.
