    I've been working on a couple of structures for the junction on the Poor Fork RR...
    I've started a depot, & then I thought, "What's a steam-era shortline without a water tank?"

    Well, I thought I'd dig around in the scrap box, & see what I could come up with...

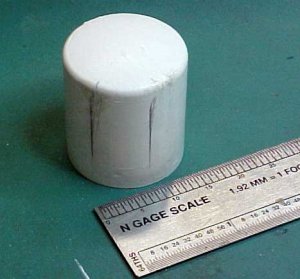

    I found this little tank thingy in a Walthers N scale Service Track kit...

    Attached Files:

  2. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

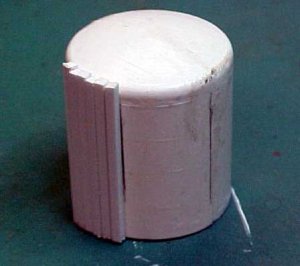

    I used a square to draw some vertical guidelines on the tank, & then glued some 080x080 Evergreen styrene strip to the sides

    Attached Files:

  3. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

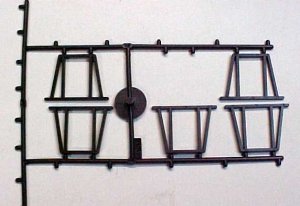

    To make a support structure for the tank, I found some HO trestle bents in a Walthers O.L. King & Son Coal Co...

    Attached Files:

  4. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

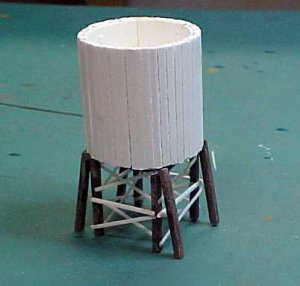

    I trimmed up a couple of the bents, & added some styrene strip for bracing...

    Attached Files:

  5. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0

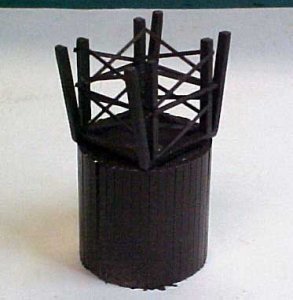

    I primed everything with Floquil Roof Brown...

    Attached Files:

  6. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Then I drybrused with some Polly Scale Acrylics, in various shades of brown...

    Attached Files:

  7. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Next, I used some styrene to make some metal reinforcement bands...

    Attached Files:

  8. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    I made this roof out of 020 sheet styrene...

    Attached Files:

  9. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    After a botched attempt at making shingles from construction paper, I went back, sanded most of the flat black paint off the roof, & started making shingles out of strip styrene...

    Attached Files:

  10. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Thanks guys!
    I really appeciate all the nice words! :)
    I must say that I have the highest respect for all of your modeling skills as well!:thumb:

    I got some detailing done last night...

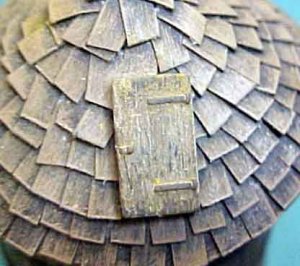

    I added a roof hatch...

    Attached Files:

  11. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    ...& I used the barrel of an old ball-point pen to make a standpipe for the bottom of the tank...

    Attached Files:
