Inspiraton please

Discussion in 'Track Planning' started by Big Mark, Feb 15, 2006.

  1. Big Mark

    Big Mark Member

    Joined:
    Jan 1, 2006
    Messages:
    69
    Likes Received:
    0
    Hi all, I am having real issues designing a N gauge layout, if I give you guys some info could you give me a hand.
    The board size is 74" x 27" and we want to put in the following:-
    1. Farm complex 6 buildings
    2. some field area for farming/animals
    3. a passenger station
    4. Coal depot (small)
    5. Brewery
    6. fiddle yard (pref hidden)
    7. canal (if poss)

    And the layout to look very English and rural
    We are both new at this and are using PECO setrack and we are having real mental block issues.
    The wife also likes "odd" looking layouts rather than loops.
    Hope you can help.
    Cheers
    Mark
  2. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
  3. tverskaya

    tverskaya Member

    Joined:
    Dec 29, 2005
    Messages:
    121
    Likes Received:
    0

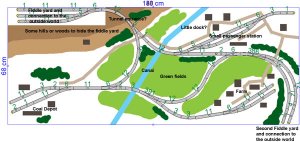

    Maybe this helps? The plan should be self-explanatory.

    I can send you the higher resolution picture if you want.

    Attached Files:

  4. Big Mark

    Big Mark Member

    Joined:
    Jan 1, 2006
    Messages:
    69
    Likes Received:
    0
    Thanks guys, the links and that track plan are really great!

    tverskaya, if you could send through the high res that would be great, lotusmark2@aol.com
    Cheers
    Mark
  5. Big Mark

    Big Mark Member

    Joined:
    Jan 1, 2006
    Messages:
    69
    Likes Received:
    0
    hi all,
    looking at the track plan above 391 and 386 are code 55?? will that work with setrack, thought setrack was code 80 (not that I have any idea what that means???)
    cheers
    Mark
  6. Triplex

    Triplex Active Member

    Joined:
    Aug 24, 2005
    Messages:
    1,851
    Likes Received:
    0
    Code means the height of the rail in thousandths of an inch.
  7. Big Mark

    Big Mark Member

    Joined:
    Jan 1, 2006
    Messages:
    69
    Likes Received:
    0
  8. webmaster

    webmaster Member

    Joined:
    Feb 17, 2006
    Messages:
    171
    Likes Received:
    0
    Interesting design, I can't wait to see what you do with the scenery.
  9. tverskaya

    tverskaya Member

    Joined:
    Dec 29, 2005
    Messages:
    121
    Likes Received:
    0
    Looks superb!

    Am I right that you didn't have to change very much to get the few slightly odd pieces to fit well? (the long turnouts, mainly)
  10. Big Mark

    Big Mark Member

    Joined:
    Jan 1, 2006
    Messages:
    69
    Likes Received:
    0
    Yeah, went together quite well, just needed to snip a few sleepers to get the long streamline turnouts to work with setrack.Think I am going to keep the farm in the area it is now and put the brewery at the far end.going to be a very fun time getting all the scenery together along with wiring the point motors, isolated turnouts etc
    Thanks again for your help mate
