Informatin needed on Sessom's system

Discussion in 'Logging, Mining and Industrial Railroads' started by Bill Pontin, Nov 26, 2004.

  1. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    Think I posted my original question on the wrong forum. I did get a number of views but no answers on my "Logging Question" under T Q&A. Want to do a new N Track module showing the Sessom's system of hoisting and lowering a log car up a very steep grade, probably 30 degrees depending on my module size. I purchaed Willamette's Iron and Steel Works book at a recent train show and found the equipment and three views of the system. The pictures need a little more clarification to make my module work. I have searched the internet and could find nothing further. Need some help here fellow modelers! Here is one picture showing a system of double tracks. the loaded goes down and an empty comes back.
  2. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    Picture did not seem to upload. Here is one of the block car at the top.
  3. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    I am interested in the sheaves alongside the tracks to keep the line from dragging. How did the line from the block car feed into these? It looks like the block car is nothing but a giant pulley on wheels, did it have extensions to feed the lines into the sheaves. Also was the block car seperate and loaded log cars attached to it? Questions, Questions.
  4. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    Doing something wrong, my pictures are not uploading, will give it one more try.
  5. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    I give up! you will have to see my original post under T Q&A, the pictures uploaded there okay.
  6. m_reusser

    m_reusser Member

    Joined:
    Apr 8, 2004
    Messages:
    85
    Likes Received:
    0
    0000000000
  7. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0

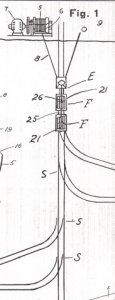

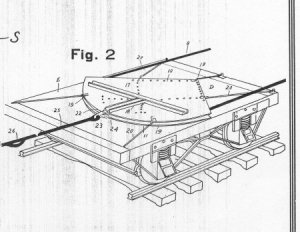

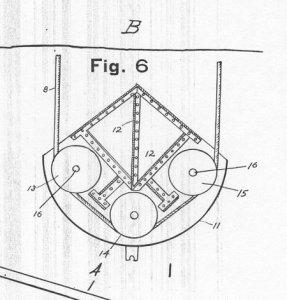

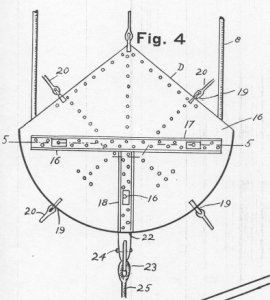

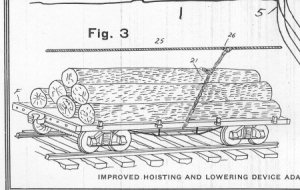

    These are some scans of the Sessoms hillside logging system. These are from page 75 of the October 1913 issue of the Timberman magazine.

    Jimmy "B"

    Attached Files:

  8. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0
    Another scan

    Attached Files:

  9. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0
    One more scan

    Attached Files:

  10. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0
    Another scan

    Attached Files:

  11. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0
    Here is another scan.

    Attached Files:

  12. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0

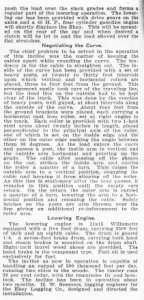

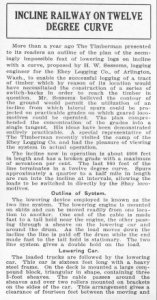

    Here are scans of an article that appeared in the July 1914 Timberman on page 35 and 36.

    Attached Files:

  13. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0
    The next piece.

    Attached Files:

  14. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0
    The last piece of the article

    Attached Files:

  15. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0

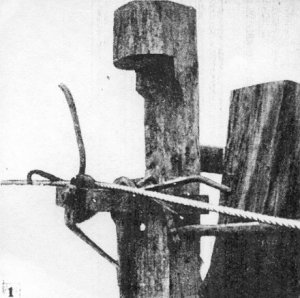

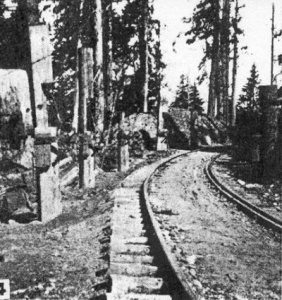

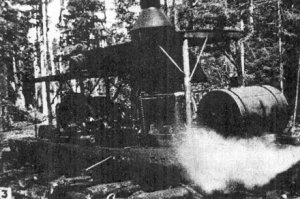

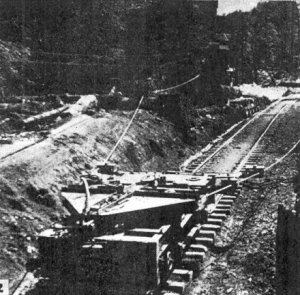

    The following are photos that were apart of the article.

    Attached Files:

  16. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0
    A couple more

    Attached Files:

  17. lassenlogger

    lassenlogger Member

    Joined:
    Nov 24, 2003
    Messages:
    65
    Likes Received:
    0
    Also there is information and photographs on the Sessom's System on page 188 and 189 in Merv Johnson's book titled "In Search of Steam Donkeys."

    Hope this helps.

    Jimmy "B"
    Lawton, NV
  18. m_reusser

    m_reusser Member

    Joined:
    Apr 8, 2004
    Messages:
    85
    Likes Received:
    0
    0000000000
  19. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    Jimmy that was perfect, thank you ever so much. You answered all my questions and now I can start planning my new NTrak module. Think it will be an interesting one and I hope to make an animated one. Lot of kinks to work out, to get down to "N" scale, but think it can be done. Guess I will have to bend the NTrak standards for module construction again. Will definitely be beyond the 2 foot width on this one.
