industrial handrails

Discussion in 'Scratchin' & Bashin'' started by kjd, Sep 18, 2004.

  1. kjd

    kjd Member

    Joined:
    Sep 10, 2004
    Messages:
    30
    Likes Received:
    0
    Can anyone recommend a way to replicate industrial handrails in HO. I know Plastruc makes them but they have a square x-section and I think round would look better. I have tried a couple methods of scratchbuilding them but none that will take less than forever. I need about 5ft worth. The ones I am trying to make are about 3.5ft tall with two rails about 3 inches in diameter. Thanks,
    Paul
  2. beeblebrox

    beeblebrox New Member

    Joined:
    Aug 8, 2004
    Messages:
    22
    Likes Received:
    0
    If you can make a short section of railing you're satisfied with, you could try casting it in resin. Depends on what it's worth to you. I've seen some complete rubber mold and resin kits for around $25.
  3. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,707
    Likes Received:
    0
    Athearn stanchions are cheap. Bend up piano wire handrails the right thickness and solder them to Athearn stanchions.
  4. cobra

    cobra Member

    Joined:
    Dec 12, 2003
    Messages:
    126
    Likes Received:
    0

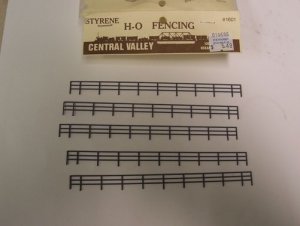

    Paul , I had the same problem and found these . You will need several packages as there is a variety of railings in each .

    NEIL

    Attached Files:

  5. CalFlash

    CalFlash Member

    Joined:
    Oct 31, 2004
    Messages:
    256
    Likes Received:
    0
    I soldered the ones on this structure http://home.comcast.net/~jerryglow/files/Image22a.jpg out of brass wire. I would use phosphore wire from CMA if doing it again. I normally flatten the top of the verticals to give a little more surface area and strength to the joint and solder it all up with a 30w pencil iron.
