Hi! New Here. My Layout

Discussion in 'HO Scale Model Trains' started by Chrisdapos, Dec 29, 2006.

  1. Chrisdapos

    Chrisdapos Member

    Joined:
    Dec 29, 2006
    Messages:
    38
    Likes Received:
    0

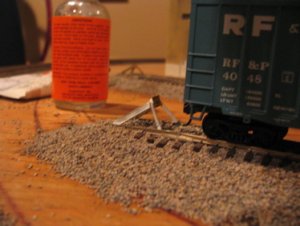

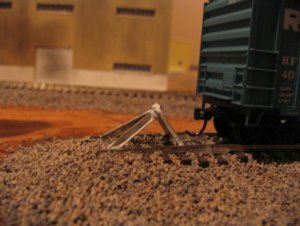

    Bumper's painted and weathered in the paper mill complex.

    Attached Files:

  2. Chrisdapos

    Chrisdapos Member

    Joined:
    Dec 29, 2006
    Messages:
    38
    Likes Received:
    0
    Hey Guys, few questions for you...
    *Where exactly do I mount the curved grab iron by the fan?
    *Also, is there some where to find the exact grab iron locations for this locamotive (blue prints or something?)? It is hard to tell from the prototype photos.

    Thank you so much!!!:)
  3. LongIslandTom

    LongIslandTom Member

    Joined:
    Apr 9, 2006
    Messages:
    712
    Likes Received:
    0
    Heya Chrisdapos,

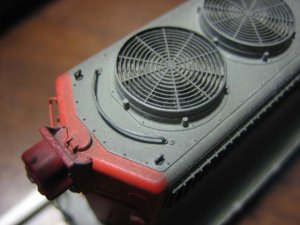

    The curved grab iron on EMD diesels go on the rear of the long hood, next to the last radiator fan.

    Hope this helps! :thumb:

    Attached Files:

  4. LongIslandTom

    LongIslandTom Member

    Joined:
    Apr 9, 2006
    Messages:
    712
    Likes Received:
    0
    As far as the drop grab irons' locations go...

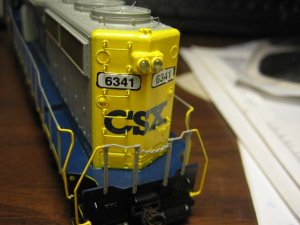

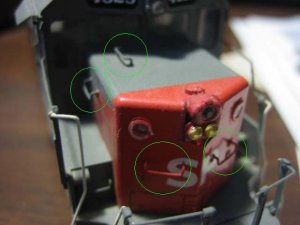

    On the front end of my own custom-detailed SP unit, I circled them in green for you.

    On the rear end of an Athearn RTR loco (I don't like how Athearn drilled the holes-- They look quite crude), you can see where the grabs go there.

    Hope this helps!

    Attached Files:

  5. Chrisdapos

    Chrisdapos Member

    Joined:
    Dec 29, 2006
    Messages:
    38
    Likes Received:
    0
    Thank you! This helps a ton!
  6. LongIslandTom

    LongIslandTom Member

    Joined:
    Apr 9, 2006
    Messages:
    712
    Likes Received:
    0
    Oops!

    Sorry I forgot to circle one more location on the front where you need to put a grab iron.

    If you take a look at my SP unit above, there is one more grab iron on the engineer's side of the locomotive, right at the front of the sub-base (to the left of the nose), partially hidden by the shadow. :oops:

    I need a better camera so it doesn't come out so blurry!
  7. wickman

    wickman Member

    Joined:
    Dec 8, 2005
    Messages:
    572
    Likes Received:
    0
    Welcome to the Guage. Your layout looks very good are you going to try to incorporate a tunnel or mountain?:wave:
  8. Chrisdapos

    Chrisdapos Member

    Joined:
    Dec 29, 2006
    Messages:
    38
    Likes Received:
    0
    LongIslandTom: I was able to place all the grab irons except for the one you did not circle. Because my locomotive is a snoot, the nose is wicked long and to get to those holes is really hard. Pictures will follow soon.

    Wickman: There is going to be a mountain with a cut through incorporated soon, and my dad wants to put in a bridge of sorts, so that will also be incorporated into the layout.
  9. Chrisdapos

    Chrisdapos Member

    Joined:
    Dec 29, 2006
    Messages:
    38
    Likes Received:
    0

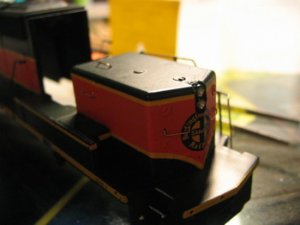

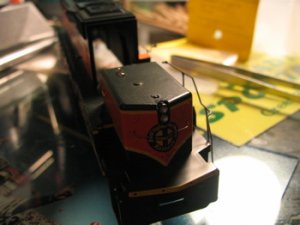

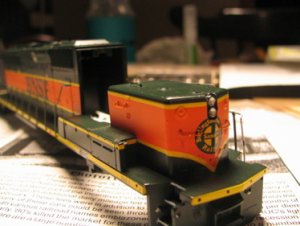

    Here are the pictures with the grab irons unpainted. Painted pictures will be here in a little bit.

    LongIslandTom: I know where to put most of the lift rings, but on the three fans towards the back of the locamotive, there seem to be dimples for something. Do lift rings go next to the fans too, or no? (I can send a picture if necessary) Thanks! :wave: :)

    Attached Files:

  10. LongIslandTom

    LongIslandTom Member

    Joined:
    Apr 9, 2006
    Messages:
    712
    Likes Received:
    0
    Hi Chrisdapos,

    Some people put lift rings there erroneously, but those little dimples next to the fans are actually for the Q fan conduits (not present on other types of radiator fans). You can bend them yourself out of .015" brass wire. It's a simple L-shaped wire elbow.

    Hope this helps!

    Attached Files:

  11. green_elite_cab

    green_elite_cab Keep It Moving!

    Joined:
    Apr 4, 2005
    Messages:
    1,943
    Likes Received:
    0
    hey its up to you. now is still a good time to convert.

    In any case, nice work!

    just remember to keep checking your prototype photos. railroads are confusing in the way they change things, as i learned trying to detail a Conrail Kato SD40. only one unit seemed to be a match, (which wasn't the unit number kato sold). there were so many configurations, and i only ever found one photo of CR 6345, i can only hope i have it right, lol.
  12. Chrisdapos

    Chrisdapos Member

    Joined:
    Dec 29, 2006
    Messages:
    38
    Likes Received:
    0
    Hey Guys!

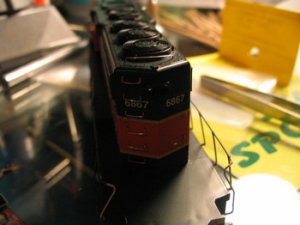

    Just wanted to say thanks for everyone's help so far with the "snoots", I am really pleased with the way they are turning out. Here are some pictures with the grab irons installed and painted. :wave:

    Attached Files:

  13. LongIslandTom

    LongIslandTom Member

    Joined:
    Apr 9, 2006
    Messages:
    712
    Likes Received:
    0
    SWEET! Looking forward to seeing photos of the completed loco! :thumb:
  14. Santa Fe Jack

    Santa Fe Jack Member

    Joined:
    Jul 20, 2006
    Messages:
    256
    Likes Received:
    0
    This looks great, Chrisdapos. You are a couple steps ahead of me, as I am just now tacking down the cork roadbed (though have not yet updated the pics in the web site noted in the sig). I hope to be laying track soon, but do not have a lot of time with three kids. :)

    Nice work on the loco detailing, especially!
  15. Chrisdapos

    Chrisdapos Member

    Joined:
    Dec 29, 2006
    Messages:
    38
    Likes Received:
    0
    Please excuse the slight delay in layout updates as I have gotten my wisdom teeth pulled :). I have decided that the combination of pain medicine and HO modeling will not mix well. Please see my thread on helping me to decide a new locomotive to get! I will update this thread once I start back on the loco/layout again.
  16. LongIslandTom

    LongIslandTom Member

    Joined:
    Apr 9, 2006
    Messages:
    712
    Likes Received:
    0
    SWEET!

    I'm actually on the other end of the forceps when it comes to wisdom tooth extraction.. :D

    Hope you feel better, and remember, no smoking, alcohol, spitting, or drinking through a straw for the next 48 hours, lest you end up with a dry socket. tooth1

    Looking forward to your updates!
  17. Chrisdapos

    Chrisdapos Member

    Joined:
    Dec 29, 2006
    Messages:
    38
    Likes Received:
    0

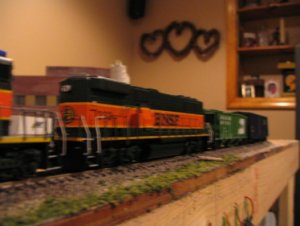

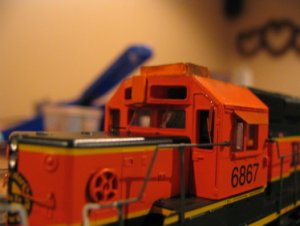

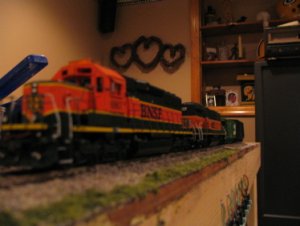

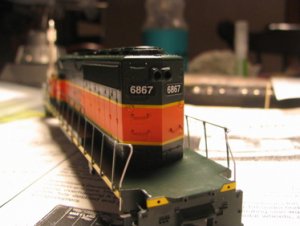

    K...four teeth gone:cry: , dad buys son a new loco :) (BNSF GP60B #333):) :) , AND BNSF #6867 (SD40-2 Snoot) is done being detailed (aside from number boards and horn):D :D .

    *Sorry for the poor quality, I will post some stationary close-ups tomorrow maybe*

    Thanks everyone for their help with 6867!!!:) :) :) :wave:

    Attached Files:

  18. green_elite_cab

    green_elite_cab Keep It Moving!

    Joined:
    Apr 4, 2005
    Messages:
    1,943
    Likes Received:
    0
    If you ask me, thats pretty good compensation from the tooth fairy!

    good work!
  19. wickman

    wickman Member

    Joined:
    Dec 8, 2005
    Messages:
    572
    Likes Received:
    0
    Nice job on the detailing does the 2 locos MU together pretty good ?:wave:
