Hey Jon, nice kitbashing

Discussion in 'Scratchin' & Bashin'' started by Tyson Rayles, Mar 24, 2003.

  1. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0

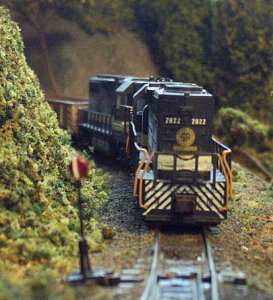

    Jon (our resident micro soldering wizard) sent me parts to make a switchstand that is proto for this area (none are available in n-scale). The real R.R.'s use a tall one on the main and short elsewhere. This (duh) is the tall version. Don't ask me how Jon solders stuff this small. The "head" is only about 1/8" in diameter and is one full circle to which he had to solder TWO half circles, then solder that to a VERY tiny brass wire. The "stand" is a very tiny brass or copper tube that the head then slides into and was split (somehow without messing it up) to make legs, just cut the wire to the lenght you want. I made a frame of wood smililar to what the real ones look like and used a piece of the wire laid down to represent the linkage and painted it all flat black. then painted the head white and red. Came out really nice I think. Don't know if you can tell or not but that is a penny in the picture to be able to give a idea how SMALL this really is. In the next pictures with it on the layout it is just sitting there, still needs to be leveled and "planted". Jon outstanding work my friend, but I got BAD news!!!! You will be getting an e-mail shortly letting you know how many more I'll be needing. :D :eek: :D

    Attached Files:

  2. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Sorry about the focus, this isn't the type of pic my el cheapo digital is good at.

    Attached Files:

    • side.jpg
      File size:
      32.1 KB
      Views:
      226
  3. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    This one's a little better

    Attached Files:

  4. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    732
    Likes Received:
    0
    Tyson is that a static display or is it linked to the throw and turns? Nice work either way, gonna have to give that a go myself. Can't solder like that but can make the flag part with stryrene and then cast the little suckers - I hope.
  5. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Bill first I should of said nice scratch not kit bashing (need to change my meds :D ). They will be static but the head swivels so when you take a pic you can line it up the right way. I guess you could figure a way to hook it so it functions and maybe down the road when I no longer have a layout that is half bare styro and plywood I'll consider it :D .To make the head out of plastic the plastic would be about as thick as a sheet of paper which is why (IMHO) the metal is a better way to go. I can't solder like that either which is why sucking up to Jon comes in handy :D :rolleyes: :D !!!! How the heck he solders things like that is beyond me. This style is VERY common in the South, don't know why nobody offers them commercially. Jon if you are reading this you might want to consider a little business venture on the side! ;)
  6. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Nice work, Jon!
    And nice pics, Tyson!
  7. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    Hey Mike, that paint job looks great! And I like the base you made for it too. Glad you guys like the switch stands.

    Just have my LPBs do all the little work :)
    I thot I already did:
    FS on this thread :)

    I have not made any 4 sided one FS yet. Perhaps after I make all the ones you need, I'll be fast/good enough to make some to sell :)
  8. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    10-4 Jon, I WILL be placing a order as soon as I figure out how many I will need. Thanks again these things are great! :)
  9. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Those are amazing Jon!
    Ralph
  10. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,387
    Likes Received:
    0
    Amazing!

    Holy Dinah, Jon! Great handiwork!:)
  11. TR-Flyer

    TR-Flyer Member

    Joined:
    Nov 25, 2001
    Messages:
    554
    Likes Received:
    0
    Jon,
    That is some pretty amazing work. Wait a minute....... your not a LPB are you?!!??!!!

    THAT"S how you do it! Your only a 1/2-inch tall aren't you!!!???

    Love the tools you make, however tall you REALLY are.

    Regards & respect,
    Ham handed Ted

    (There's a reason i model in "S")
  12. marty w.

    marty w. Member

    Joined:
    Jun 11, 2002
    Messages:
    562
    Likes Received:
    0
    Jon,
    Nice work, very nice.:D :D :D :D :D

    Cool pics, Tyson.:cool: :cool: :cool: :cool: :cool:

    Marty
  13. jon-monon

    jon-monon Active Member

    Joined:
    Aug 15, 2002
    Messages:
    4,763
    Likes Received:
    0
    hahaha good one TR!

    Thanks for the kind words, guys...
  14. rich maiorano

    rich maiorano Member

    Joined:
    Apr 27, 2002
    Messages:
    644
    Likes Received:
    0
    nice guys very nice how in the h*** did you get them together jon and tyson they look great
    ;) ;) ;) rich
  15. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Great work Jon.

    Great pictures Tyson.
