Here we go again "Freight car of the week"?

Discussion in 'Photos & Videos' started by Catt, Aug 27, 2006.

  1. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    I've seen those loco's show up in your pics before, like the one with a few F's sitting next to each other.
  2. doctorwayne

    doctorwayne Active Member

    Joined:
    Sep 7, 2005
    Messages:
    3,844
    Likes Received:
    0
    I think that the photo that you refer to is one done by my good friend cn nutbar. All of my F-units were sold off years ago.
    This CNR express boxcar, in the 1958 scheme, is another Accurail car, with the same modifications as my last post. The prototypes were both new cars and repaints of the older cars like that shown previously. Paint from Accupaint, and lettering by C-D-S.

    [​IMG]

    Wayne
  3. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    Ah yes, my bad. I know he likes to post pics of your stuff too, so thats probably how I got confused. Sowwy
  4. doctorwayne

    doctorwayne Active Member

    Joined:
    Sep 7, 2005
    Messages:
    3,844
    Likes Received:
    0
    This one is an Accurail 9 panel singlesheathed car. The only modifications were metal steps and grabs, plus rudimentary brake rigging. The paint is Floquil and the lettering is from Microscale. The car is one of 6 or 7 Southern Pacific and SP subsidiary cars that I did in order to use up the various roadnames on the decal sheet. I believe cn nutbar may have a couple of them, too.

    [​IMG]

    Wayne
  5. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    Whats with that cattle car?
  6. doctorwayne

    doctorwayne Active Member

    Joined:
    Sep 7, 2005
    Messages:
    3,844
    Likes Received:
    0
    Hmm, .... a couple of locos and a boxcar?:D Just kidding. I'm guessing that your referring to the white sides, something I was discussing with someone on the MR Forum. In Canada, government regulations required the use of lime, as a disinfectant, on stockcars. This usually made a mess of the car, appearance-wise, so the railroads began painting the lower car sides white, in an attempt to "even out" the appearance. I'm not sure where I read about this, or when it was first used. This car, a double-decker, is mostly white. The car itself has a bit of an interesting mystery behind it. I picked it up from the "used" table at a nearby hobbyshop, as an undecorated kit, for about five bucks. It was in a clear plastic bag, with no markings, or instructions, and no trucks. I later learned that it was from Proto2000. The mystery is that I got it several months before the models were first released.:thumb: I replaced all of the steps and grabirons with metal parts, after first filling all of the mounting holes with styrene rod, then redrilling for the finer wire parts. My stockcar roster is a real dog's breakfast of manufacturers: besides this one, there are ones from Train Miniature, Rivarossi, Athearn, Accurail, and Central Valley. I hope also to scratchbuild a few 36' Fowler Patent cars, if I can find the time.

    Wayne
  7. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    Thats a cool story behind the car. Wonder how you were able to get one before they were actually released. You will also need to fill me in on what a fowler patent car is too.
  8. doctorwayne

    doctorwayne Active Member

    Joined:
    Sep 7, 2005
    Messages:
    3,844
    Likes Received:
    0
    Here's a picture of a 36' Fowler Patent boxcar. This car is similar to the Montreal & Atlantic car that I posted earlier. They also made 40' versions. The Fowler Patent refers to the method of attaching the sheathing to the steel structural members of the car. While most cars of the era used a bolt through a hole in the "Z" bar, the Fowler cars used a bolt through a slot. This allowed the railroad shop forces to reposition the sheathing as the wood shrank, keeping the carbody "tight", an important consideration in an era when many granular commodities were shipped in boxcars "in bulk". CNR and CPR used thousands of these cars in grain service, right up into the '60s. I'm not sure if the Fowler stockcars were actually built as such, but many roads converted boxcars into stockcars by removing alternating boards from the side sheathing. Proto1000, makers of the Fowler boxcar models, also offer stockcar versions in CP, CN, and TH&B, but, like the boxcars, they have oversize plastic grabirons. At $35.00 to $40.00 per car, also a bit too pricey for my road's Purchasing & Accounting Department.:D

    [​IMG]

    Wayne
  9. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    That's more than mine would go for too. I only pick up Athearn blue box kits. I really don't like the RTR stuff, I like to build. I've never gone into as much detail as you, but I'm also not as worried about the finer details as of yet either.
  10. doctorwayne

    doctorwayne Active Member

    Joined:
    Sep 7, 2005
    Messages:
    3,844
    Likes Received:
    0
    This boxcar, in work train service as a tool & supply car, started life as a MDC/Roundhouse 36' truss rod reefer. The reefer door hardware was renoved with a chisel blade, then new door tracks were built from strip styrene. The door is from a Train Miniature USRA doublesheathed boxcar. The fishbelly underframe was built up from .060" styrene and a K brake system from a Walthers 50' automobile boxcar was added. The car got new metal grabirons all around, while the trucks and lettering came from the scrap box.

    [​IMG]

    Wayne
  11. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    I think we ought to change this thread to Frieght car of the month.

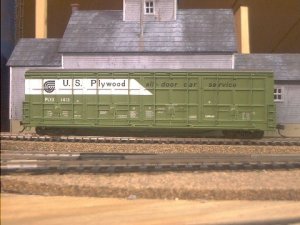

    I was thinking...."Hey..No one posted one of these!". Then I went back through and found the Alldoor Catt posted...Oh...Well....
    Here's the second one then. Walthers, from a two car set.

    Attached Files:

  12. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Since this thread doesn't want to die because of all the great stuff being posted

    [​IMG]

    Athearn undecorated boxcar custom painted and lettered with C-D-S Dry Transfers.
  13. chessie4155

    chessie4155 Active Member

    Joined:
    Mar 18, 2006
    Messages:
    1,216
    Likes Received:
    0

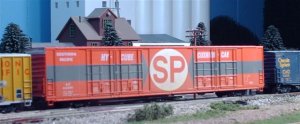

    Here's a Athearn BB . We added some weight , KDs ,little weathering and it was pui into service.

    Attached Files:

  14. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    How long is that thing Chessie?
  15. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    [​IMG]

    Athearn undecorated 40' Wood Boxcar custom painted and letter with C-D-S dry transfers.
  16. chessie4155

    chessie4155 Active Member

    Joined:
    Mar 18, 2006
    Messages:
    1,216
    Likes Received:
    0
    It's an 86' 8 door Auto Parts boxcar. These are big cars , right after the 89' Auto Racks.
  17. viperman

    viperman Active Member

    Joined:
    Mar 13, 2006
    Messages:
    996
    Likes Received:
    0
    Wow. I won"t even attempt to run one of them things
  18. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0

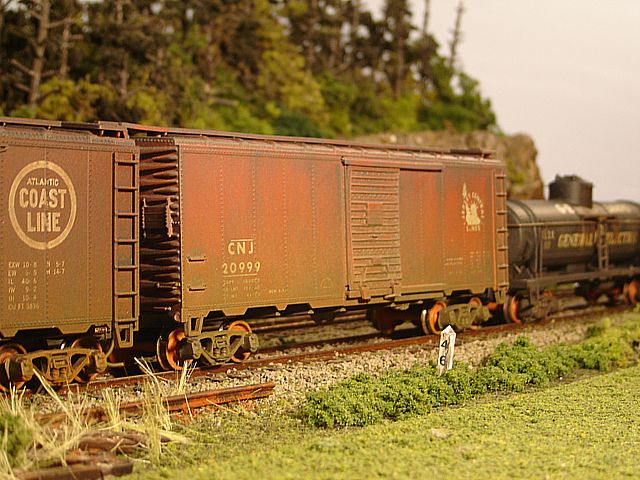

    Here is an Life-Like car that became my test car. I added body mouted couplers, and replaced the trucks and wheels. I also did some trail weathering on it.

    [​IMG]
  19. chessie4155

    chessie4155 Active Member

    Joined:
    Mar 18, 2006
    Messages:
    1,216
    Likes Received:
    0
    wow!! nicely done. I like the Chessie/PC combo there..me two favorite roads.. very good job of weathering too..
  20. Catt

    Catt Guest

    Boy this week sure is a long one.:D :D :D Keep on posting them boxcar pics guys (and gal) ,and don't forget there are other "freightcar of the week " threads going on too.
