Help with new layout

Discussion in 'Track Planning' started by ript73, Aug 11, 2005.

  1. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0

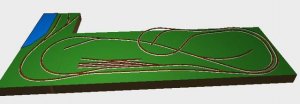

    Here is a 3D view of the layout. This is to scale and was created with 3rd PlanIt, so this is what she would look like.

    Attached Files:

  2. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0

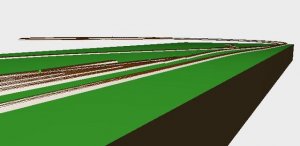

    The grades are all 2.5% and this is what the grade looks like from the side.

    Attached Files:

  3. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0

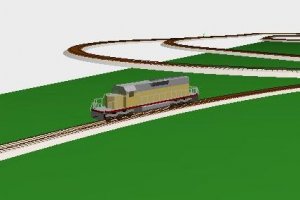

    This engine's cab is right under the upper track, so you can see the clearance.

    Attached Files:

  4. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0

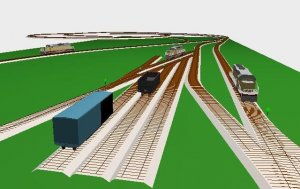

    Here is the yard. It has a run-around track and lots of room for a station.

    Attached Files:

  5. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0

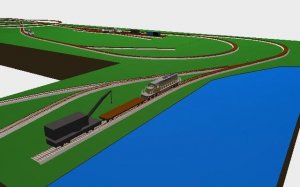

    Here is a better view of the port. This water line was drawn in about 30 seconds and you could make it much more interesting with a possible stream entering it, giving your trains some bridges to cross. The shore could be longer too, giving you way more detail along the coastline.

    Well, there you go. I hope this gets yer brain juice flowin'. :thumb:

    TrainClown :wave:

    Attached Files:

  6. theBear

    theBear Member

    Joined:
    Oct 1, 2004
    Messages:
    207
    Likes Received:
    0
    TrainClown,

    I see you scratched that itch.

    Well done, that should provide even more ideas.
  7. ript73

    ript73 New Member

    Joined:
    Aug 10, 2005
    Messages:
    18
    Likes Received:
    0
    Oh Wow! Thanks for taking the time to design that, TrainClown. This is exactly what I was looking for on what to do with my layout. I can't wait to get started and I will definately be posting up pictures of my progress. I like the idea of a river feeding into the coastline and adding the coastline to the layout is something I hadn't even thought of and now that I've seen it, it's a great idea.

    Thanks again TrainClown and everyone else's input!
  8. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    ;) Glad to have a scratch. :thumb:

    TrainClown :wave:
  9. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    TrainClown,

    You ought give him an idea of what the terrain could look like once a mountain or two were added and the terrain is conformed to the track.

    3rdplanit is a great program. I'm still in learning curve mode, but it's helped me out considerably.
  10. Pitchwife

    Pitchwife Dreamer

    Joined:
    Apr 24, 2001
    Messages:
    1,796
    Likes Received:
    0
    Very nice design TC. You really have a nack for it. One thing you should also add though is the locations of access ports, especially along the bottom (5' deep) and in the lower left hand corner (5'10" deep). Also the left hand side is 3' deep, although the port takes up most of it. That's fine as long as you don't need a lot of access to it.
  11. ript73

    ript73 New Member

    Joined:
    Aug 10, 2005
    Messages:
    18
    Likes Received:
    0
    One thing I may add is that I will have access to all sides, including the back "inside the L" shape. I plan on putting the whole thing on rolling casters so I can pull it away from the wall for access to the back.
  12. Pitchwife

    Pitchwife Dreamer

    Joined:
    Apr 24, 2001
    Messages:
    1,796
    Likes Received:
    0
    That pretty much takes care of the reach problem. :thumb: Be sure your floor is smooth. HO doesn't tip over as easily as N but a bump in the right (wrong?) direction can cause a lot of frustration :mad: if not any real damage. :cry: I hope TC's layout works for you, it looks like a good one. :thumb: :thumb: Be sure to post pics when you can. :cool: :D
  13. tillsbury

    tillsbury Member

    Joined:
    Jul 18, 2004
    Messages:
    273
    Likes Received:
    0
    Damn you're good Trainclown... One of these days I'm going to post you a big bench layout and ask for your help on my dream layout... certainly before I start doing too much work on it...

    Charles
  14. TrainClown

    TrainClown Member

    Joined:
    Apr 17, 2003
    Messages:
    897
    Likes Received:
    0
    Sure Charles. Sounds like fun. ;)

    ript73- Sorry I didn't add the mountains, but I don't have the time right now. It sonds like you are all set to go, and all you needed was a direction. I'm glad you like the plan. Any questions, just ask.:rolleyes:

    As for me. Summer stuff taking all my time, and I'm lucky to check in here every once in a while. Fall is just around the corner and the new modeling season will be under way. Soon I will be starting my new layout. What fun that will be.:thumb:

    The other day I dropped some loot at the LHS and got some plastic goodies.

    Stockin' up and makin' plans.

    TrainClown :wave:
