Help please - What are these?

Discussion in 'HO Scale Model Trains' started by Quinn222, Dec 31, 2006.

  1. Quinn222

    Quinn222 Member

    Joined:
    Nov 17, 2006
    Messages:
    64
    Likes Received:
    0
    This is a Proto GP7II (with sound), I got it a few weeks ago and am just now getting around to installing the couplers.

    [​IMG]

    Also in the package are a whole bunch of things identified only as "consumer installed parts"



    [​IMG]


    I can see there are two windows, I'm not sure what I'm supposed to do with them since there are already windows installed. Are those dummy windows? Am I supposed to take them out and replace them with these? Also I have no idea what any of the other parts are or where and how to install them. There is an expolded view image included but it really doesn't tell me much.

    Can anyone help me out? Right now I'm just putting all this stuff back in the box and running it as is.

    Thanks.
  2. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0

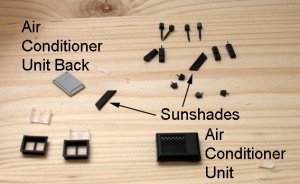

    Here are the parts I can identify.

    I think that the box is an air conditioner unit and the gray piece is the back of it. Does it have an air conditioner unit on the other side of the loco? The other 2 are sunshades and go right above the front windows on the sides of the loco.

    Was this a brand new loco or did someone else previosly own it? If you bought it from someone else, they might have replaced those parts with diff. parts and these would just e extras now, like the windows for example.

    Here is what I can identify.

    Attached Files:

  3. Quinn222

    Quinn222 Member

    Joined:
    Nov 17, 2006
    Messages:
    64
    Likes Received:
    0
    It's brand new. The exploded view indicates that those black pieces are part of the window asspembly. Maybe I'm supposed to just mount the windows on top of the windows they aready have in place? Am I to just glue these things to it?

    The box (air conditioner?) is shown on top of the locomtive, but I can't tell where on top of it or (again) how to attach it.
  4. LongIslandTom

    LongIslandTom Member

    Joined:
    Apr 9, 2006
    Messages:
    712
    Likes Received:
    0
    Hi Quinn222,

    The extra windows you see are known as "winterized windows". They actually stick out the side of the cab, and some railroads order locomotives with those installed for operating in colder regions. I don't know if I have ever seen winterized windows on Pennsy diesels though. You can probably just leave them in your spare parts box in case you need them in the future.

    The black piece with the mesh grill is called a "winterization hatch." (it is NOT an air conditioner.) It goes over one of the radiator fans on the top of the long hood. Again, an option ordered by some railroads if they operate the locomotive in winter conditions.

    Hope this helps!
  5. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    Thanks Tom for correcting me:thumb: :thumb:
  6. Quinn222

    Quinn222 Member

    Joined:
    Nov 17, 2006
    Messages:
    64
    Likes Received:
    0
    Thanks, that just leaves me with the tiny black things. They appear to have hatches of some sort on them.
  7. Quinn222

    Quinn222 Member

    Joined:
    Nov 17, 2006
    Messages:
    64
    Likes Received:
    0
    I think I may have figured it out. I hunted down every picture of GP7 I could find on Google and I think they are fake ditch lights.
  8. doctorwayne

    doctorwayne Active Member

    Joined:
    Sep 7, 2005
    Messages:
    3,845
    Likes Received:
    0
    They're pretty hard to see on my crummy monitor, but they look to me like m.u. receptacles. You wouldn't use all of them, as there are different styles of the same receptacles. These mount on the walkway at the front and rear of the loco, but you'll need pictures of the prototype to know which ones to use and where to place them. On the prototype, heavy cables were plugged into them, so that all locos coupled together could be run from the unit in the lead.
    Nice lookin' diesel, btw.:thumb:

    Wayne
  9. Quinn222

    Quinn222 Member

    Joined:
    Nov 17, 2006
    Messages:
    64
    Likes Received:
    0
    Thanks Wayne, that's just what they are. I found a few pictures where the cables were plugged into them.
  10. Glen Haasdyk

    Glen Haasdyk Active Member

    Joined:
    Feb 3, 2004
    Messages:
    1,314
    Likes Received:
    0
    The trapaziod parts look like cab shades from here
  11. Seaboard

    Seaboard Member

    Joined:
    Dec 15, 2006
    Messages:
    153
    Likes Received:
    0
    Those windows look like fish eye windows. You can glue them on over the existing ones or put the shades over the existing windows. Personally I'd go with the shades:thumb:.
  12. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    IF they had cables plugged into them, then they must be MU cable receptibles.
  13. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,347
    Likes Received:
    0
    Looks like the group has identified most of those parts. I can't say that installing loco details is my favorite part of the hobby but I have great admiraation for people who do enjoy it and create exceptional looking equipment. Your Pennsy Geep is a looker already!
    :thumb:
    Ralph
  14. Triplex

    Triplex Active Member

    Joined:
    Aug 24, 2005
    Messages:
    1,851
    Likes Received:
    0
    I can't recall ever having seen them on PRR GP7s.
  15. 65GASSER

    65GASSER Member

    Joined:
    Jun 13, 2006
    Messages:
    253
    Likes Received:
    0
    Just sell the parts to me! :wave:
  16. Russ Bellinis

    Russ Bellinis Active Member

    Joined:
    Feb 14, 2003
    Messages:
    4,709
    Likes Received:
    0
    Your Lifelike model is designed to have detail parts to replicate most versions used by the prototype anywhere in the country. Those winterization windows for instance, would have been used in Canada. They would not have been used in Florida, or the South. In New York, New England, and Pennsy, you would have to look at prototype pictures to see if they were used or not. The parts that are marked "air conditioners" are actually winterization hatches to go over the radiator fans I think. Again they would be found in Canada and the Northeast in the winter time. I'm not sure if they were removed for summertime operation and then put back on in the fall for the winter like storm windows on houses in the Northeast. I would imagine some of the modelers who model Northeastern or Canadian prototype might know. I model Santa Fe in the desert, and they don't run any winterization stuff down here.
  17. Triplex

    Triplex Active Member

    Joined:
    Aug 24, 2005
    Messages:
    1,851
    Likes Received:
    0
    Not that I know of. I see shots of locomotives with winterization hatches in any season.

    Of course, these days, you often see locomotives with equipment they don't need, thanks to resales. For example, you can find used US engines operating in South America where they didn't bother to remove snowplows!
