Heavy PRR Steam

Discussion in 'Getting Started' started by e-paw, Apr 14, 2008.

  1. e-paw

    e-paw Member

    Joined:
    Mar 17, 2007
    Messages:
    209
    Likes Received:
    0
    I received a proto 2k USRA 2-8-8-2 as a gift:yep:and want to letter it for the Pensey (who got them from the N+W).The model comes with 2 sets of cylinders. A standard and modified low pressure set. I don't know which is correct for the 1940's :?: . I could only find 2 pics of these engines and could not tell from them:cry:.
    Any help would be greatly aprichiated. Thanks:
  2. rekline

    rekline Member

    Joined:
    Oct 20, 2006
    Messages:
    62
    Likes Received:
    0
  3. e-paw

    e-paw Member

    Joined:
    Mar 17, 2007
    Messages:
    209
    Likes Received:
    0
    thanks rekline

    those pics were a big help:thumb:. It looks like I have to switch them out to the modified version and alter the pilot. thanks again.
  4. toptrain1

    toptrain1 Member

    Joined:
    Jan 2, 2007
    Messages:
    562
    Likes Received:
    19

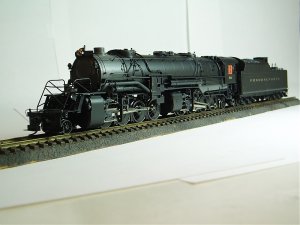

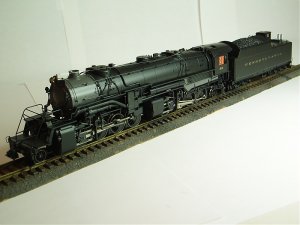

    See steve. (e-paw)

    I didn't change my cylinders yet. But it looks good anyway.

    Attached Files:

  5. bigsteel

    bigsteel Call me Mr.Tinkertrain

    Joined:
    Dec 12, 2006
    Messages:
    1,380
    Likes Received:
    0
    that sure is some perty looking PRR steam you got there :thumb: but then again,what steam engine is ugly :) --josh
  6. GN.2-6-8-0

    GN.2-6-8-0 Member

    Joined:
    May 25, 2006
    Messages:
    162
    Likes Received:
    0

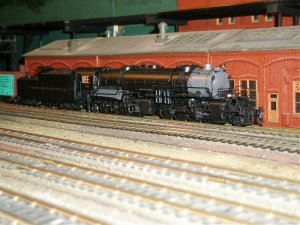

    Theres just something about those huge brutish looking compound cylinders i like :mrgreen:

    Attached Files:

    • Y6b.jpg
      File size:
      237 KB
      Views:
      20
  7. rekline

    rekline Member

    Joined:
    Oct 20, 2006
    Messages:
    62
    Likes Received:
    0
    I am so glad that you posted those pics of your model. I would love to have one but my layout radius would not allow it. Great Job, Big heavy PRR steam is the best. (The views and opinions on this post is only the opinion of the writer and does not reflect the views and opinions of the management of the Guage).
  8. toptrain1

    toptrain1 Member

    Joined:
    Jan 2, 2007
    Messages:
    562
    Likes Received:
    19

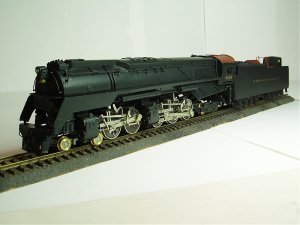

    Here is another PRR heavy steamer.

    The Q2s. Anyone know the history of this type Pennsy steamer?

    Attached Files:

  9. GN.2-6-8-0

    GN.2-6-8-0 Member

    Joined:
    May 25, 2006
    Messages:
    162
    Likes Received:
    0

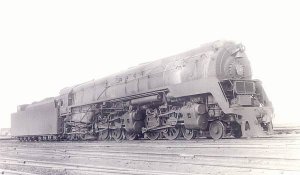

    built in 1944-45 the Q2s were the most successful of the Duplex locomotives built by the Pennsy at their Altoona shops.
    Using the same boiler as the J1s the 26 Q2s were able to output 7,987hp
    but were gone by 1951 because of their higher operating and maintence cost's compared with the J1s........ and of course the diesel's were the wave of the future...

    Attached Files:

    • Q2.jpg
      File size:
      23.3 KB
      Views:
      12
  10. bigsteel

    bigsteel Call me Mr.Tinkertrain

    Joined:
    Dec 12, 2006
    Messages:
    1,380
    Likes Received:
    0
    i have no idea what that is ( a 2-4-6-4?) but it does look like the front truck in the second pic has track problems :mrgreen: --josh

    EDIT:looks liek we were typin at the same time GN nice pic too.
  11. toptrain1

    toptrain1 Member

    Joined:
    Jan 2, 2007
    Messages:
    562
    Likes Received:
    19
    The Q2

    The Q2 is a 4-4-6-4. Duplex. This means it has a rigid frame, not articulated. Instead of a 4-10-4 with only 2 cylinders driving 5 driver axles a aditional 2 cylinders were added improving traction and horse power. The Q1 4-6-4-4 was first made. The Q2 was a improved version with better tracking qualities and more umph applied to the track.
  12. rekline

    rekline Member

    Joined:
    Oct 20, 2006
    Messages:
    62
    Likes Received:
    0
    Wow what a great example, who made it?
  13. toptrain1

    toptrain1 Member

    Joined:
    Jan 2, 2007
    Messages:
    562
    Likes Received:
    19
    who made it ?

    My model is a early brass by Imperial Models. It is a good runner. e-paw did the paint I lettered it. toptrain
  14. Triplex

    Triplex Active Member

    Joined:
    Aug 24, 2005
    Messages:
    1,849
    Likes Received:
    0
    The odd thing about the Q2 and the other duplexes... Even though they weren't successful, when several companies proposed new steam after the oil crisis, one design was a duplex. In fact, a 4-4-6-4 based on the Q2, but with a condensing tender like a South African Class 25.
  15. logicman

    logicman Greybeard

    Joined:
    May 1, 2008
    Messages:
    542
    Likes Received:
    0
    It's so nice to see what you folks in the colonies have done with our Mr. Stephenson's basic design concept. One might almost be inclined to forgive the minor misunderstanding over the tea tax.


    (I just love S-T-E-A-M ! Thank you for posting those pictures.)
  16. e-paw

    e-paw Member

    Joined:
    Mar 17, 2007
    Messages:
    209
    Likes Received:
    0
    The HH-1 is almost complete. Decals are on and I am waiting for a missing part from life like. Then time for weathering as soon as I fix my air brush (I dropped it breaking the glass paint cup and nozzle)and add a coal load. I will post pics when It's finished.
  17. toptrain1

    toptrain1 Member

    Joined:
    Jan 2, 2007
    Messages:
    562
    Likes Received:
    19
    RIVEROSSI (ahm) 0-8-8-0 CC1

    AHM released this large Pennsylvania heavy Steam loco. The "Big Push". This is a modified Y6b 2-8-8-2.

    Attached Files:

  18. steamhead

    steamhead Active Member

    Joined:
    Apr 17, 2005
    Messages:
    2,527
    Likes Received:
    0
    There have been issues with posting..(hope this goes through..) for the past couple of days. I understand they're working on it....
  19. Fluesheet

    Fluesheet Member

    Joined:
    Jan 22, 2006
    Messages:
    367
    Likes Received:
    0
    Pennsy did share a lot of parts (including boilers) between locomotives, but the Q2 and J1 boilers weren't an example of that. The J1 used a Lima designed boiler with a "conventional" radially-stayed firebox crown, whereas the Q2 (as was the case with almost all Pennsy steam) was a Belpaire type - this shows up as the "shoulders" on the boiler ahead of the cab.

    The Belpaire made for a more a more efficient firebox, but wasn't as easily constructed as the radial stay type - which is why virtually all American steam used the latter.

    Matt
  20. toptrain1

    toptrain1 Member

    Joined:
    Jan 2, 2007
    Messages:
    562
    Likes Received:
    19
    exception

    The Great Northern also was a Railroad that appreaciated the Belpar firebox.
    frank
    PS : I am a PRR modler
