Have any idea how this comes apart?

Discussion in 'N / Z Scale Model Trains' started by TrainNut, May 30, 2006.

  1. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0

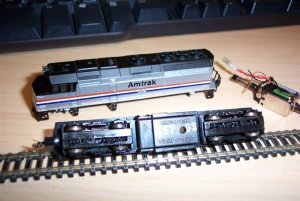

    N scale, older Life Like, F40PH. I am trying to turn it into a dummy but it is getting the best of me. After removing the motor, there is still a lot of rolling friction and so I need to take out the gears and clean the wheel assembly in the hopes that it will roll better. Problem is, I can not figure out how to get both trucks separated from the frame. It appears that the middle strip on the bottom pops out to reveal the whole gear assembly but I can not quite get it to come out. Seems as if something is keeping it locked in place. I spent some time on the net looking for techincal drawings to no avail. Help!!!!

    Attached Files:

  2. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0

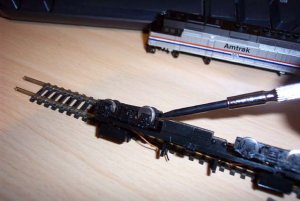

    This is as far as I can get it to pop up and out and then something stops it from coming any further.

    Attached Files:

  3. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Is there a little metal bar that goes through the gear tower just above the frame? Some trucks come apart when that is pulled out.
  4. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    David is right, there are small pins holding the trucks on in the gear tower. They push out in one direction so whichever way gets them out.
  5. TrainNut

    TrainNut Ditat Deus

    Joined:
    Sep 15, 2004
    Messages:
    1,810
    Likes Received:
    0
    Genius! Thanks guys. That did it.
  6. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    30 years and some things never change!
