    OK I just don't have room on the Georgetown Sub to put a full size water tank near the loco servicing area so I am going with a half one which goes against the backdrop. I hope when you look at it that the eye will trick you into believing that it is all there. Much like the Georgetown staion I built which is only partial too.
    The tank in question is a 50,000 gallon tank and saw use on the Texas & New Orleans portion of the Southern Pacific. It was not a standard A.R.E.A. design but had a character of it'sown in that the bottom was of greater diameter than the top. I have based mine on the drawings in the April 1963 Model Railroader.

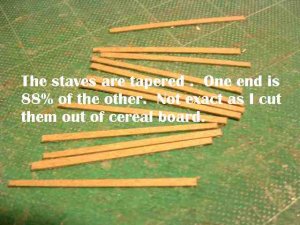

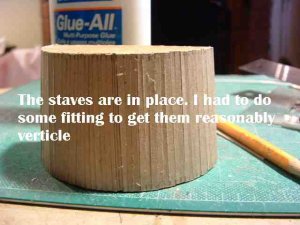

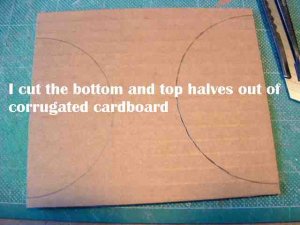

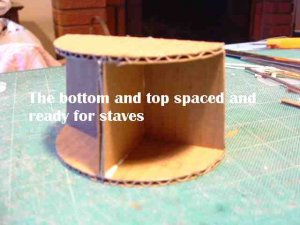

    Here is my progress so far. This model is HO The bottom is a scale 25 feet in diameter and the top is 22.4 feet in diameter.
    More to come.

    Attached Files:

    • ht1.jpg
      File size:
      26.5 KB
      Views:
      388
    • ht2.jpg
      File size:
      26.6 KB
      Views:
      391
    • ht3.jpg
      File size:
      35.9 KB
      Views:
      436
    • ht4.jpg
      File size:
      30.5 KB
      Views:
      395
  2. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    Here he goes again.... :rolleyes: :cool:

    Another work of art in the making. :thumb:
  3. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    'Nother box o' Chocolate Flavored Snappy Dingles bites the dust :thumb:
  4. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0
    That just makes me laugh... :D :D ;) :thumb:

    Andrew
  5. Chessie6459

    Chessie6459 Gauge Oldtimer

    Joined:
    Aug 4, 2003
    Messages:
    2,978
    Likes Received:
    0
    Looks Really Good Robin :thumb: :thumb: :thumb:
  6. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Half a roof

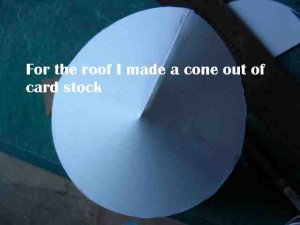

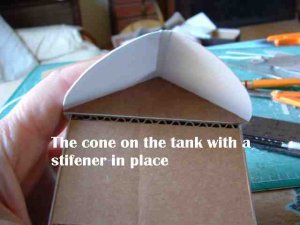

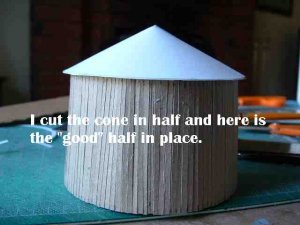

    Here is how I made half a roof.
    Shingles come next.

    Attached Files:

    • ht5.jpg
      File size:
      20.1 KB
      Views:
      386
    • ht6.jpg
      File size:
      25.3 KB
      Views:
      379
    • ht7.jpg
      File size:
      28.2 KB
      Views:
      367
  7. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Great job Robin! :thumb: :thumb:
  8. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    WOW Robin. That looks like the tank that was at a little station in northern California where
    we lived for a while. It served the occasional steam helpers that came out of Alturas Ca. and
    was also our home water supply
  9. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Looks great so far Robin!!! :thumb:

    Val
  10. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Half of the support framming

    Thanks for the kind comments folks.

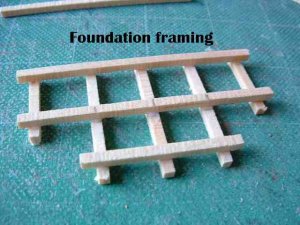

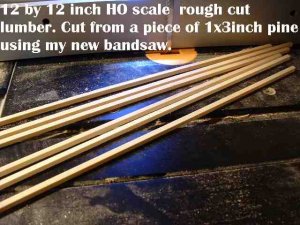

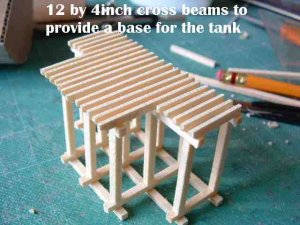

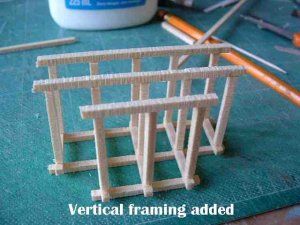

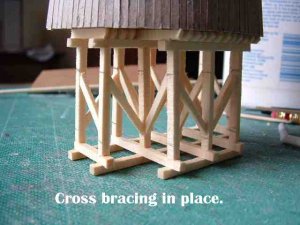

    The support framing is mainly 12 by 12 inch rough cut lumber. My new bandsaw came in handy for this.

    Attached Files:

    • ht8.jpg
      File size:
      41.8 KB
      Views:
      360
    • ht9.jpg
      File size:
      34.1 KB
      Views:
      358
    • ht10.jpg
      File size:
      32 KB
      Views:
      359
    • ht11.jpg
      File size:
      34.1 KB
      Views:
      377
  11. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    7,260
    Likes Received:
    0
    Did you think of putting a "Piece" of mirror behind the "base" of the tank. This would be flat against the backdrop & reflect the base, "providing by reflection" the rest of the base. :) :)

    Awesome stuff!! As Always!!! :) :)
  12. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Good idea Mikey. Thanks
  13. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    7,260
    Likes Received:
    0
    :D Welcome :D Make sure you post a pic!!! :D :D :D
  14. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0

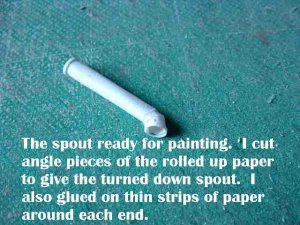

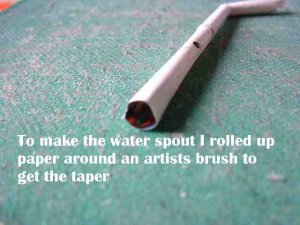

    A little bit of progress today. It took me a while to figure out how I could make the tapered water spout.

    Attached Files:

  15. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    My goodness Robin, it is absolutely amazing what you do with paper!!!! I'm so glad you're posting these progress shots too - I get so much inspiration from "watching you work".
    :thumb: :thumb: :thumb: :thumb:

    Val
  16. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Got the shingles on the same way as I show in the current Gauge Mag then gave it all a coat of paint.

    Attached Files:

    • ht15.jpg
      File size:
      28.8 KB
      Views:
      191
  17. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,509
    Likes Received:
    0
    wow, impressive Robin...

    How do you do that. I am going to need a personal tutorial on that.
    When do the Cerealboard art class begin?
  18. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,724
    Likes Received:
    0
    That's brilliant! I just cut the end of the handle off - now I am "short" one paint brush...!

    Always something else to learn... :rolleyes:

    Andrew
  19. Wyomingite

    Wyomingite Member

    Joined:
    Mar 17, 2002
    Messages:
    596
    Likes Received:
    0
    Unbelievable Robin. Thanks for sharing.

    Ron :thumb: :wave:
  20. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,501
    Likes Received:
    0
    Your usual excellence Robin! :)
